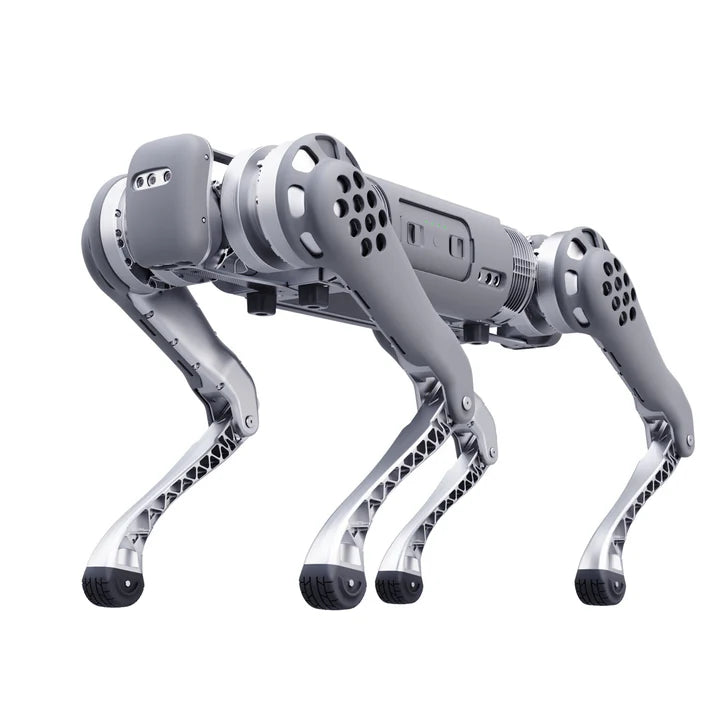

Unitree B1

Unitree B1

Unitree B1 industrial quadruped robot: all-weather, high mobility, strong load. Replaces humans in high-risk environments, patrols, rescue, and exploration.

Youtube Videos

Key Features

  • Landlord
  • IP68 Waterproof
  • Industrial Level Heavy Loader

Key Features

B1 has the characteristics of all-weather operation, strong load and expansion space, multidimensional perception, full scene coverage, strong computing power and accurate insights. Facing the complex environments and high-level needs of industrial applications, this industrial protection level quadruped robot will provide a more efficient and intelligent solution.

Leading the practice and exploration of industrial robots
B1 has great application potential in agriculture, industry, as well as specific security patrols, surveys and exploration, public rescue, etc. They are the main application directions since their birth.

Dig Deeper into The Pain Points of The Scene
Adhere to the transformation of robot technology to empower scenarios.
B1 can adapt to complex terrain and all kinds of bad weather, has high mobility and flexibility, and can replace humans to complete work in many special or high-risk environments.

Unitree B1

Parameter Unitree B1
Dimensions (L x W x H, Stand)
1126 x 467 x 636 mm
Dimensions (L x W x H, Fold)
1202 x 467 x 297 mm
Whole Machine Weight (with battery)
About 50 kg
Battery Weight
About 5 kg
Continuous Walking Load
20 kg
Maximum Standing Load
80 kg
Stand Endurance
2.5 h
Continuous Walking Endurance (no load)
2 h
Main Control CPU
Intel i5-1135G7
Sensing Sensor
Intel RealSense D430 x5
Standard Output
Power / USB 2.0 / ETH
Working Temperature (Battery)
-5°C to 45°C
Maximum Gradient
30°
Maximum Movement Speed
1.2 m/s
Maximum Step Height to Climb Stairs
20 cm
Protection
Temperature / Current
