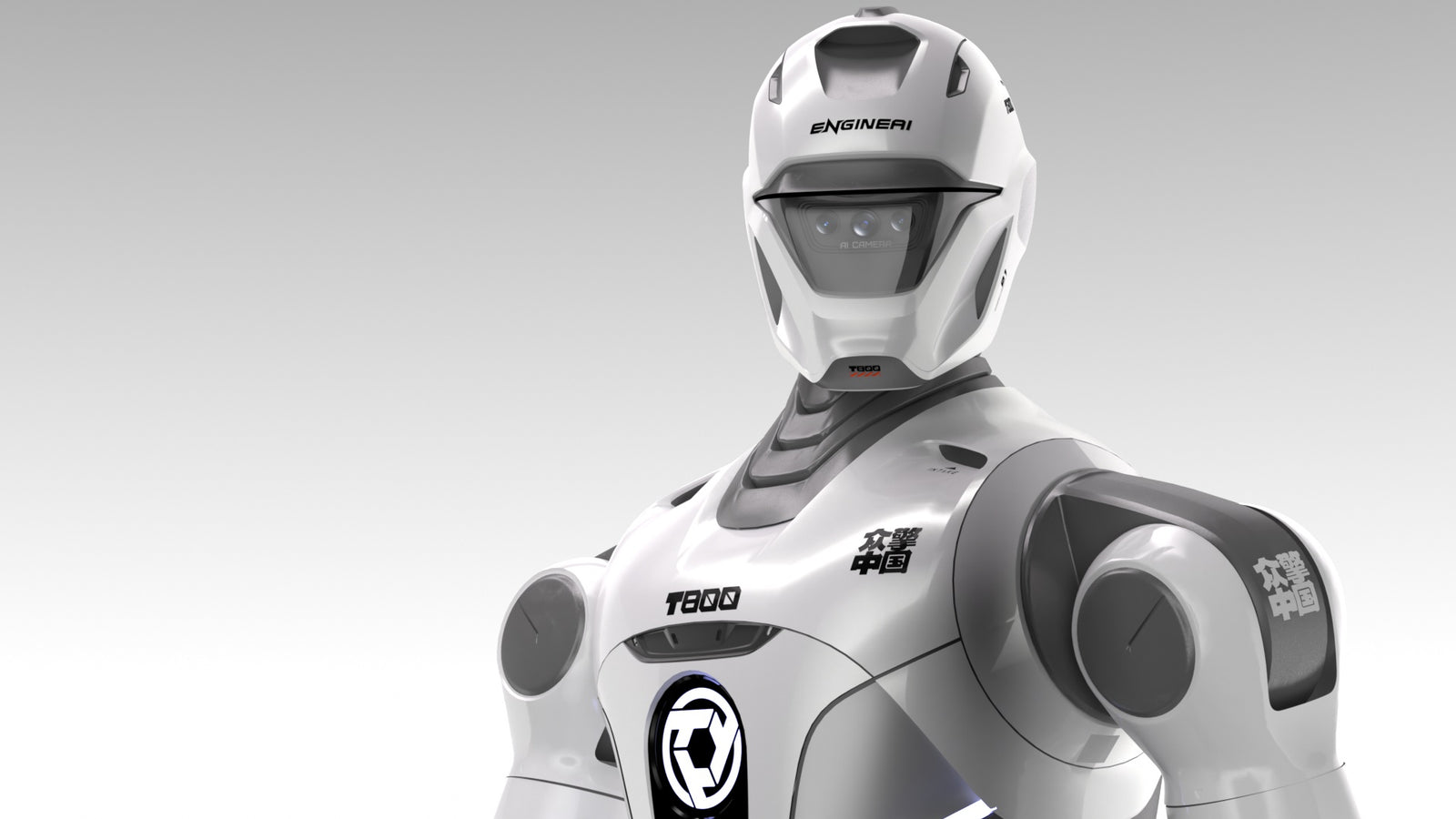

ENGINEAI T800

ENGINEAI T800

T800: EngineAI Full-Size High-Dynamic General-Purpose Robot
Get A Quote

Youtube Videos

Gallery

Gallery image 1
Gallery image 2
Gallery image 3
Gallery image 4

Technical Highlights

One Size for All Scenarios
173cm in height.

High DOF joint design
29 DOF throughout the body(excluding the dexterous hand).
Anthropomorphic motion design.
Supports seamless transitions between complex movements.

Industry-leading explosive power
Joint torque of up to 450 N·m

Endurance for High-Intensity Work
Full leg joint active cooling enabling 4 hours of continuous operation

Multi-Modal Perception System
Includes in-house develope miniaturized joint modules.
360° omnidirectional radar.
Millisecond-level environmental data processing.

Ultimate Power Aesthetics
Power-Technology Integration.
Robust Shell.

Sustained High-Performance Cooling System
The leg joint active cooling system ensures sustained peak performance at all times.
Allowing the robot to thrive under heavy loads and high temperatures.

Multi-modal Dexterous Hand
With 7 degrees of freedom (DOF) per hand, a payload capacity of 5 kg, and integrated tactile sensing.
It enables fine grasping and flexible manipulation, adapting to diverse object handling requirements.

Omnidirectional Sensor Fusion System
360° LiDAR for multi-dimensional perception; millisecond-level data processing for precise obstacle avoidance.

Coordinated movement of high-degree-of-freedom joints.
Full-stack in-house developed with 29 degrees of freedom (DOF) for the whole body (excluding dexterous hands), capable of performing martial arts, dexterous manipulation, grasping, and other tasks with precision.High-degrees-of-freedom (DOF) joints and anthropomorphic motion design enable seamless transitions between complex actions.

ENGINEAI T800

Parameter T800 (Basic Edition) T800 (Open Souce Edition) T800 (Pro Edition) T800 (Max Edition)
Price (USD)
40,500 USD 54,000 USD 63,000 USD (Champagne Gold, limited to 50 units at ¥260,000) 80,800 USD
Appearance
Release Edition Release Edition Release Edition Minor adjustments to the release version + enhanced chest and back design
Height
173 cm 173 cm 173 cm 173 cm
Weight
Depending on the edition, 75 kg to 85 kg Depending on the edition, 75 kg to 85 kg Depending on the edition, 75 kg to 85 kg Depending on the edition, 75 kg to 85 kg
Total Degrees of Freedom
25 25 29 + 14 (dexterous hands) = 43 32 + 14 (dexterous hand) = 46
Degrees of Freedom per hand
0 0 7 7
Lower leg + thigh length
91 cm 91 cm 91 cm 91 cm
Arm length
60 cm 60 cm 60 cm 60 cm
Degrees of freedom of the neck
2 2 2 3
Degrees of Freedom per leg
6 6 6 6
Degrees of freedom of the waist
1 1 1 3
Degrees of Freedom per arm
5 5 5 7
Articular Movement Space
Waist Y-251° ~ 71° Hip: R-118° ~ 62°, P-190° ~ 130°, Y-81° ~ 206° Knee: P-15° ~ 135° Foot: P-39° ~ 39°, R-15° ~ 15° Head:P-30° ~ 30°, Y-70° ~ 70° Waist: Y -251°~71°; Hip: R -118°~62°, P -190°~130°, Y -81°~206°; Knee: P -15°~135°; Foot: P -39°~39°, R -15°~15°; Head: P -30°~30°, Y -70°~70°; Shoulder: P -170°~160°, R -140°~22°, Y -150°~150°; Elbow: P -131°~15°, R -150°~150°; Wrist: P -25°~25°, R -35°~65° Waist: Y -251°~71°; Hip: R -118°~62°, P -190°~130°, Y -81°~206°; Knee: P -15°~135°; Foot: P -39°~39°, R -15°~15°; Head: P -30°~30°, Y -70°~70°; Shoulder: P -170°~160°, R -140°~22°, Y -150°~150°; Elbow: P -131°~15°, R -150°~150°; Wrist: P -25°~25°, R -35°~65° Waist: Y -251°~71°; Hip: R -118°~62°, P -190°~130°, Y -81°~206°; Knee: P -15°~135°; Foot: P -39°~39°, R -15°~15°; Head: P -30°~30°, Y -70°~70°; Shoulder: P -170°~160°, R -140°~22°, Y -150°~150°; Elbow: P -131°~15°, R -150°~150°; Wrist: P -25°~25°, R -35°~65°
Fully articulated hollow internal wiring
Support Support Support Support
Hardware-supported movement speed
≥ 3 m/s (hardware-supported) ≥ 3 m/s (hardware-supported) ≥ 3 m/s (hardware-supported) ≥ 3 m/s (hardware-supported)
Perception sensor
Intel Depth Camera Proprietary system (stereoscopic vision + LiDAR), open visual hardware interface, compatible with Intel and others Proprietary system (stereoscopic vision + LiDAR), open visual hardware interface, compatible with Intel and others Proprietary system (stereoscopic vision + LiDAR), open visual hardware interface, compatible with Intel and others
Basic Computing Power (Robot PC)
Intel Module (RK3588 optional) Intel Module (RK3588 optional) Intel Module (RK3588 optional) Intel Module (RK3588 optional)
High-performance computing module (AI PC)
Orin NX 16G AGX Orin 64G (computing power customizable upgrade) AGX Orin 64G (computing power customizable upgrade) AGX Orin 64G (computing power customizable upgrade)
Communication module
Wi-Fi + Bluetooth + USB + LAN Wi-Fi + Bluetooth + USB + LAN Wi-Fi + Bluetooth + USB + LAN Wi-Fi + Bluetooth + USB + LAN
Secondary development
Not specified Support Support Support
Smart Battery (Quick-Release)
Support (Quick-Release) Support (Quick-Release) Support (Quick-Release) Support (Quick-Release)
Lighting configuration
2 headlamps + 2 chest lamps + knee lamps 2 headlamps + 2 chest lamps + knee lamps 2 headlamps + 2 chest lamps + knee lamps 2 headlamps + 2 chest lamps + knee lamps
Microphone
Equipped Equipped Equipped Equipped
Speaker
Equipped Equipped Equipped Equipped
Handheld remote control
Equipped Equipped Equipped Equipped
Joint encoder
Absolute dual encoder Absolute dual encoder Absolute dual encoder Absolute dual encoder
Joint type
Planetary Planetary Planetary + Linear Force Control Planetary + Linear Force Control
Maximum torque (N·m)
450 N·m 450 N·m 450 N·m 450 N·m
Ternary lithium battery voltage
71.4 V 71.4 V 71.4 V 71.4 V
Ternary lithium battery capacity
20 Ah 20 Ah 20 Ah 20 Ah
Solid-state battery voltage
74.8 V 74.8 V 74.8 V 74.8 V
Solid-state battery capacity
40 Ah 40 Ah 40 Ah 40 Ah
Charging duration (ternary lithium)
2.5 hours 2.5 hours 2.5 hours 2.5 hours
Charging duration (solid-state)
3 hours 3 hours 3 hours 3 hours
Battery type (standard configuration)
Ternary lithium battery (solid-state optional) Ternary lithium battery (solid-state optional) Ternary lithium battery (solid-state optional) Ternary lithium battery (solid-state optional)
Battery life per charge
4~5 hours 4~5 hours 4~5 hours 4~5 hours

Application Scenarios

Sales Associate
Human-Robot Collaboration
Logistics Warehoues
Hotel Services
