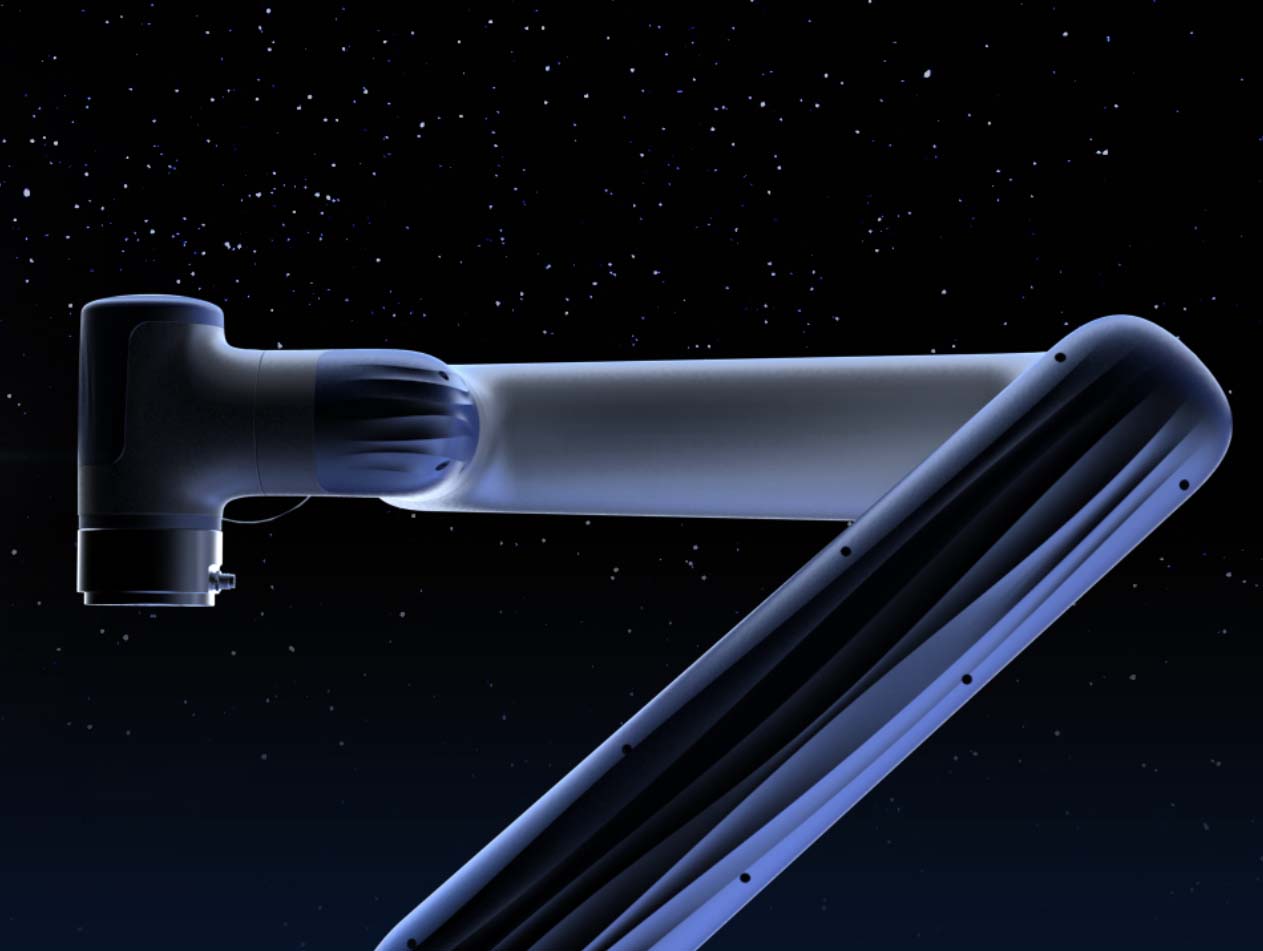

DOBOT NOVA Series Collaborative Robot

DOBOT NOVA Series Collaborative Robot

DOBOT Nova series are collaborative robots designed specifically for commercial sector

Youtube Videos

Technical Highlights

DOBOT Nova Series Collaborative Robots
The DOBOT Nova Series comes with 2 kg and 5 kg maximum payload options. Nova cobots are ultralight and easy to use. Multiple built-in safety features ensure versatility across various commercial applications, including beverage, restaurants, physiotherapy and more. Customizable outer shell colors allow for coherent styling in stores.

Highly Portable. Requires Only 1 m² of Space.
The Nova Series has maximum reach of 625-850 mm. They are 33%-44% lighter and 20% smaller than CR counterparts. Palm-sized control box makes rapid deployment possible without the need to alter store layout.

Easy to Use. No Experience Required.
Industry leading programming methods such as replaying user guided trajectory and graphical user interface require no coding knowledge. Users in the retail and hospitality industries can easily incorporate Nova cobots into standardized workflow upon completion of training course. Effortlessly monitor cobot activities and manage software upgrades over the cloud.

Safety Enhanced. Protection Ensured.
Nova cobots are equipped with intelligent sensors with 5 adjustable protection levels. Operation stops in 0.01 second upon collision detection to secure the safety of people. Additional safety features such as human motion sensing and posture freeze upon power shutoff offer much desired human-robot collaboration in the commercial sector.

Customize Nova to Work Seamlessly with You.
The Nova series offers exterior customization options. Mix and match color combinations that work with your brand.

Nova Series

Parameter Nova2 Nova5
Weight
11 kg 14 kg
Maximum Payload
2 kg 5 kg
Working Radius
625 mm 850 mm
Maximum Speed of TCP
1.6 m/s 2 m/s
Range of Motion
J1: ±360°; J2: ±180°; J3: ±156° (Nova 2) / ±160° (Nova 5); J4: ±360°; J5: ±360°; J6: ±360° J1: ±360°; J2: ±180°; J3: ±156° (Nova 2) / ±160° (Nova 5); J4: ±360°; J5: ±360°; J6: ±360°
Maximum Joint Speed
J1: 135°/s (Nova 2) / 100°/s (Nova 5); J2: 135°/s (Nova 2) / 100°/s (Nova 5); J3-J6: 135°/s (Nova 2) / 100°/s (Nova 5) J1: 135°/s (Nova 2) / 100°/s (Nova 5); J2: 135°/s (Nova 2) / 100°/s (Nova 5); J3-J6: 135°/s (Nova 2) / 100°/s (Nova 5)
End IO
DI: 2 inputs; DO: 2 outputs; RS485: Supported DI: 2 inputs; DO: 2 outputs; RS485: Supported
Repeatability
±0.05 mm ±0.05 mm
IP Rating
IP54 IP54
Noise
65 dB(A) 70 dB(A)
Environment
0° to 50° C 0° to 50° C
Power Consumption (Typical)
100 W 230 W
Power Consumption (Maximum)
250 W 770 W
Installation Orientation
Any angle Any angle
Cable Length from Robot to Controller
3 m 3 m
Materials
ABS plastic ABS plastic
Controller Dimensions
200 mm × 120 mm × 55 mm (7.9 in × 4.7 in × 2.2 in) 200 mm × 120 mm × 55 mm (7.9 in × 4.7 in × 2.2 in)
Controller Weight
1.3 kg 1.3 kg
Controller Input Power
30~60 V DC 30~60 V DC
IO Power
24 V, Max 2 A, Max 0.5 A per channel 24 V, Max 2 A, Max 0.5 A per channel
DI (Digital Input)
8 inputs (NPN or PNP) 8 inputs (NPN or PNP)
DO (Digital Output)
8 outputs (NPN or PNP) 8 outputs (NPN or PNP)
AI (Analog Input)
2 inputs, voltage mode, 0~10 V 2 inputs, voltage mode, 0~10 V
AO (Analog Output)
2 outputs, voltage mode, 0~10 V 2 outputs, voltage mode, 0~10 V
Remote Power On/Off
Supported Supported
Network Interface
2, for TCP/IP and Modbus TCP communication 2, for TCP/IP and Modbus TCP communication
USB Interface
2, for connecting USB wireless module 2, for connecting USB wireless module
RS485 Interface
1, for RS485 and Modbus RTU communication 1, for RS485 and Modbus RTU communication
Operating Temperature
0° to 50° C 0° to 50° C
Humidity
≤95%, non-condensation ≤95%, non-condensation
Controller IP Rating
IP20 IP20
Cooling Mode
Passive heat loss Passive heat loss
Teaching Mode
PC, APP (Android, iOS) PC, APP (Android, iOS)

Application Scenarios

Health Care
New Retail
Education
