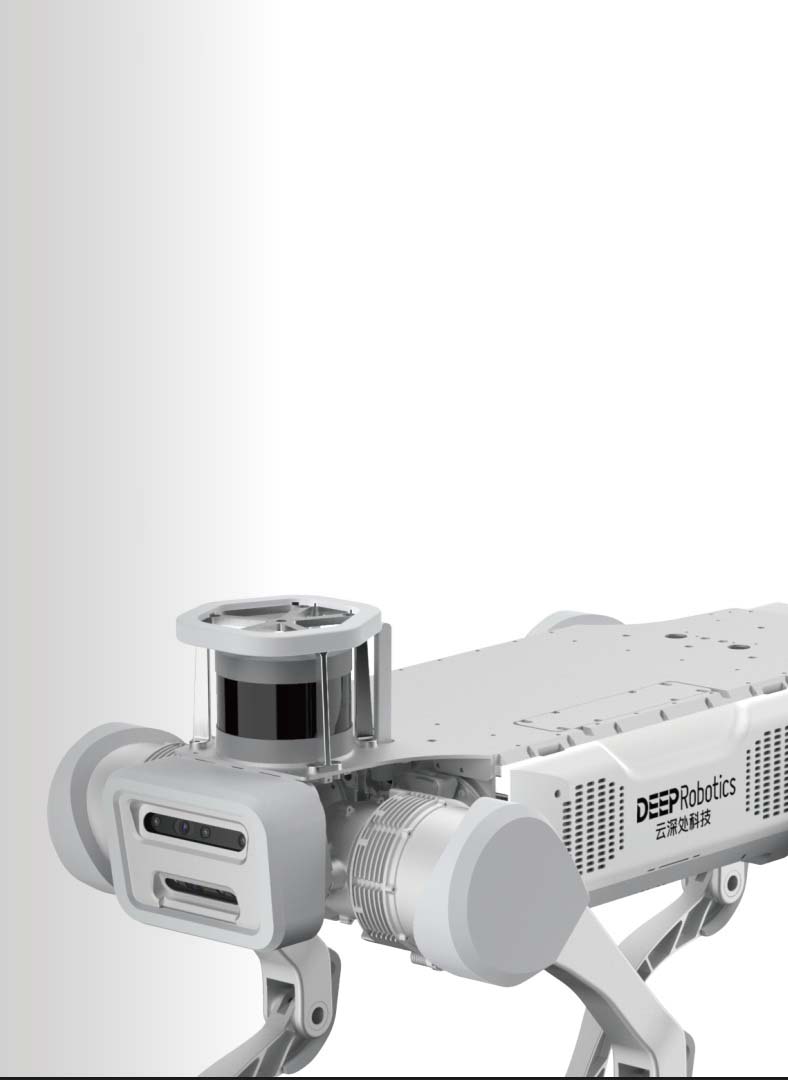

DeepRobotics Jueying X20

DeepRobotics Jueying X20

Jueying X20 Define a New Boundary for Quadruped Robot Industry Applications
Get A Quote

Youtube Videos

Introduction

  • Designed and built based on the user feedback from real-world application scenarios and DEEP Robotics’ deep understanding of industry applications, Jueying X20 features strong load capacity and scalability, autonomous charging, all-scenario coverage, great computing power, and perceptual precision while operating flawlessly in adverse weather conditions. The quadruped robot provides protection in and around the perimeter of every kind of industrial or commercial facility, making it a more efficient and intelligent solution for industry applications with high-level requirements across a wide range of scenarios.

Jueying X20's Core Functions & Advantages

Industry-Grade Waterproof Performance

China’s First Industrial Waterproof Quadruped Robot
Jueying X20 can operate in adverse weather conditions

Support dual-light pan, robotic arm,
5G communication, GPS, RTK and more modules.

Strong Load Capacity, Strong Scalability, Long Endurance

Jueying X20 ’s wide peripheral platform supports the Intelligent Perception
equipment with multiple interfaces for power supply and
communications.

Autonomous Charging

Jueying X20 can operate for more than 2 hours with a load of 20 kg and for as long as 4 hours
without a load. It could also charge autonomously.

Complex Terrain Adaptability

Jueying X20 can easily step over a 20cm high obstacle, navigate a stairwell as well
as climb a 30 degree slope, allowing it to adapt to a variety of complex environments, including grasslands, sand, snowfields, gravel roads and puddles.

Intelligent Perception

Jueying X20 can be equipped with a depth-sensing camera and the laser
radar coupled with an intelligent algorithm, the robot enables trackless
autonomous navigation, dynamic obstacle avoidance,terrain recognition,
human-computer interaction.

Jueying X20 Technical Parameters

Parameter Jueying X20
Standing Dimension (L x W x H)
1000 x 460 x 600 mm
Gross Weight
50 kg
Safe Working Load
20 kg
Maximum Working Load
85 kg
Maximum Speed
4.95 m/s
Motion Performance
Walks normally on grasslands, stone roads, and gravel roads
Obstacle / Step Clearance
Can step over a 20 cm high obstacle or step
Climbing Ability
Can climb a 35 degree slope
Protective Level
IP66 (power on)
Average Runtime (0 kg load)
4 h (with a load of 0 kg)
Average Runtime (20 kg load)
2 h (with a load of 20 kg)
Average Mileage (0 kg load)
15 km (3.6 km/h, with a load of 0 kg)
Intelligent Perception System
Depth-sensing camera, LiDAR, ROS-based intelligent perception computing module, AI module
Environmental Perception (SDK optional)
Target state recognition, 2.5D/3D map construction, autonomous navigation, dynamic obstacle avoidance (SDK optional)
External Power Interfaces
5V; 12V; 24V; 72V (BAT)
Communication Interfaces
Ethernet; WiFi; USB; RS485; RS232
Optional Equipment
Dual-light pan-tilt, robotic arm, 4G/5G module, BeiDou/GPS/RTK
Autonomous Charging
Supported
Beyond-horizon Communication
Supported

Application Scenarios

Security Inspection

Survey Exploratio

Emergency Rescue
