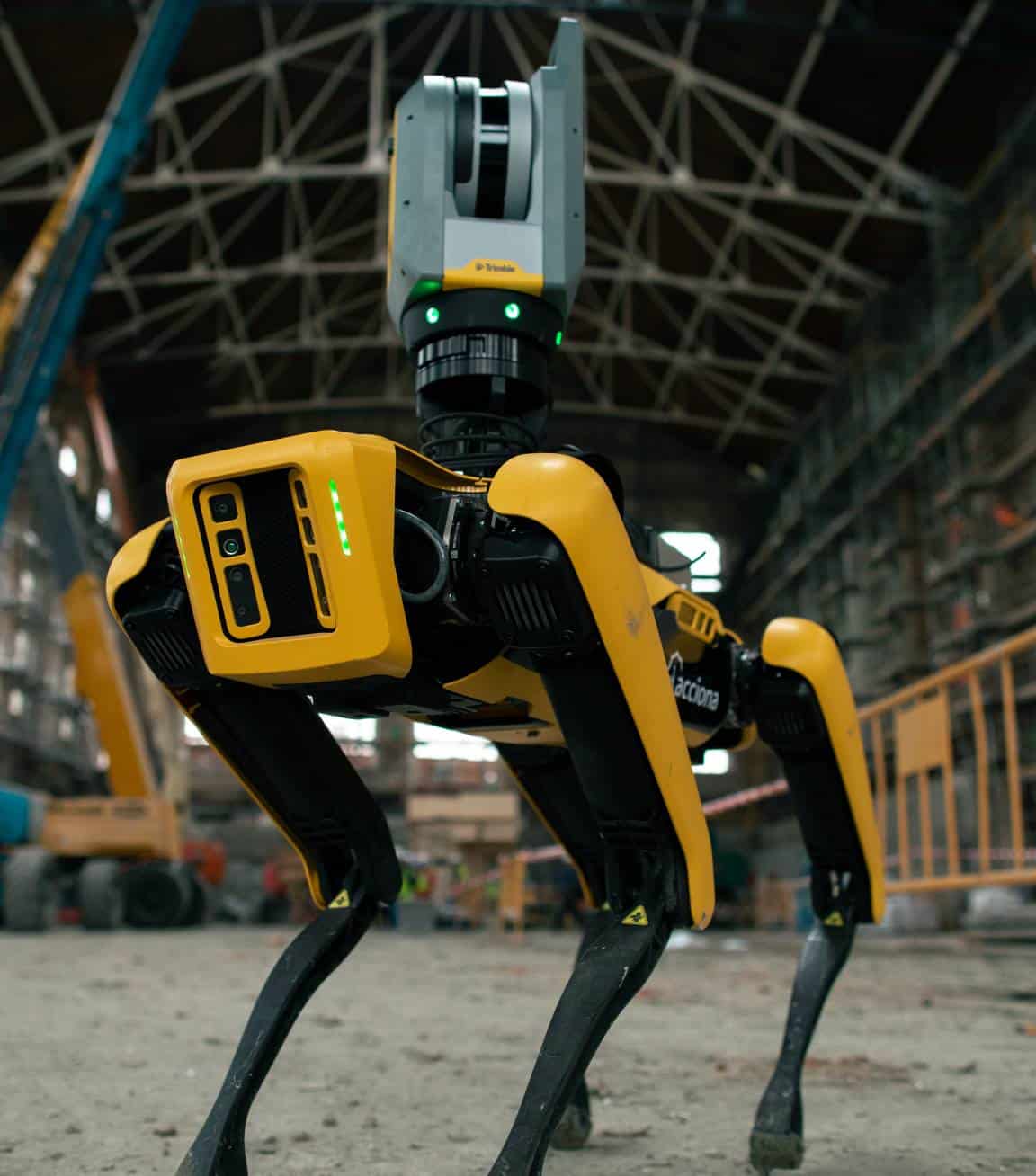

Boston Dynamics Spot
Boston Dynamics Spot is the Agile Mobile Robot - Automate sensing and inspection, capture limitless data, and explore without boundaries.
Youtube Videos
Gallery
Product Feature
Equip Spot for success
Boston Dynamics Spot
| Parameter | Boston Dynamics Spot |
|---|---|
|
Length
|
110 mm (43.3 in) |
|
Width
|
500 mm (19.7 in) |
|
Height (Sitting)
|
191 mm (7.5 in) |
|
Default Height (Walking)
|
610 mm (24.0 in) |
|
Max Height (Walking)
|
700 mm (27.6 in) |
|
Min Height (Walking)
|
520 mm (20.5 in) |
|
Net Mass/Weight
|
33.8 kg (74.5 lb) |
|
Max Speed
|
1.6 m/s |
|
Max Slope
|
±30° |
|
Max Step Height
|
300 mm (11.8 in) |
|
Ingress Protection
|
IP54 |
|
Operating Temperature
|
-20°C to 55°C |
|
Horizontal Field of View
|
360° |
|
Range
|
4 m (13 ft) |
|
Lighting
|
> 2 Lux |
|
Collision Avoidance
|
maintains set distance from stationary objects |
|
WiFi
|
2.4GHz / 5GHz b/g/n |
|
Ethernet
|
Supported |
|
Battery Capacity
|
564 Wh |
|
Average Runtime
|
90 mins |
|
Standby Time
|
180 mins |
|
Recharge Time
|
60 mins |
|
Battery Length
|
324 mm (12.8 in) |
|
Battery Width
|
168 mm (6.6 in) |
|
Battery Height
|
93 mm (3.7 in) |
|
Battery Mass/Weight
|
5.2 kg (11.5 lbs) |
|
Maximum Payload Weight
|
14 kg (30.9 lbs) |
|
Mounting Area Length
|
850 mm |
|
Mounting Area Width
|
240 mm |
|
Mounting Area Height
|
270 mm |
|
Mounting Interface
|
M5 T-slot rails |
|
Connector
|
DB25 (2 ports) |
|
Power Supply
|
Unregulated DC 35-58.8V, 150W per port |
|
Integration
|
Available software API and hardware interface control document |
