TianJi

Tianji Gento Luna Wheeled Folding Robot

• Wheeled folding robot with 26 DoF (excluding dexterous hands)
• Dual 7-DoF force-controlled robotic arms
• Omnidirectional mobile chassis with in-place rotation
• Full-body force control with compliant interaction
• NVIDIA Jetson Orin AGX 64GB computing platform
• Supports ROS 2, SDK, and secondary development

Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Developer Support

Tianji Gento Luna product overview, specifications and teleoperation system.pdf ▶

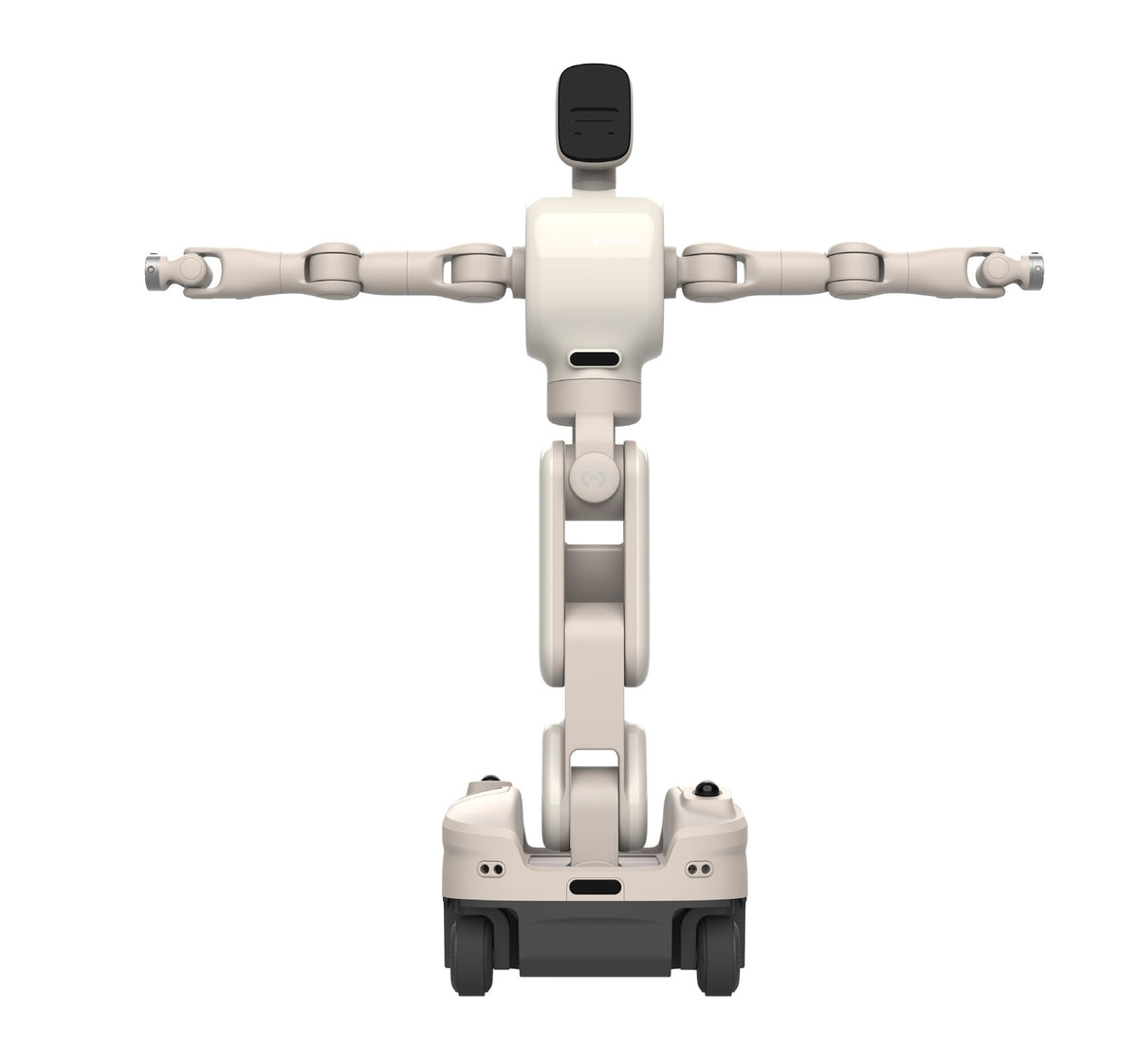

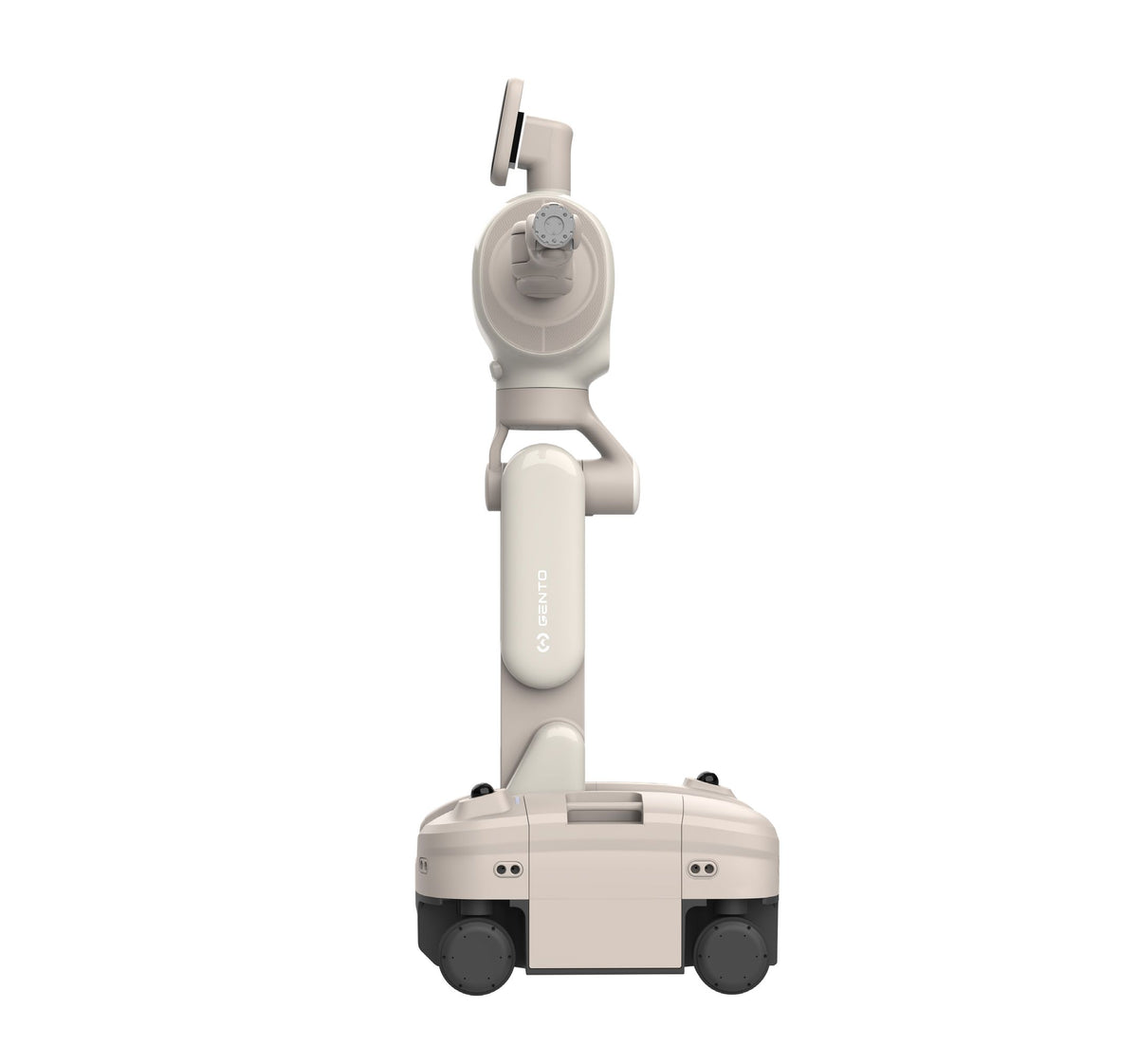

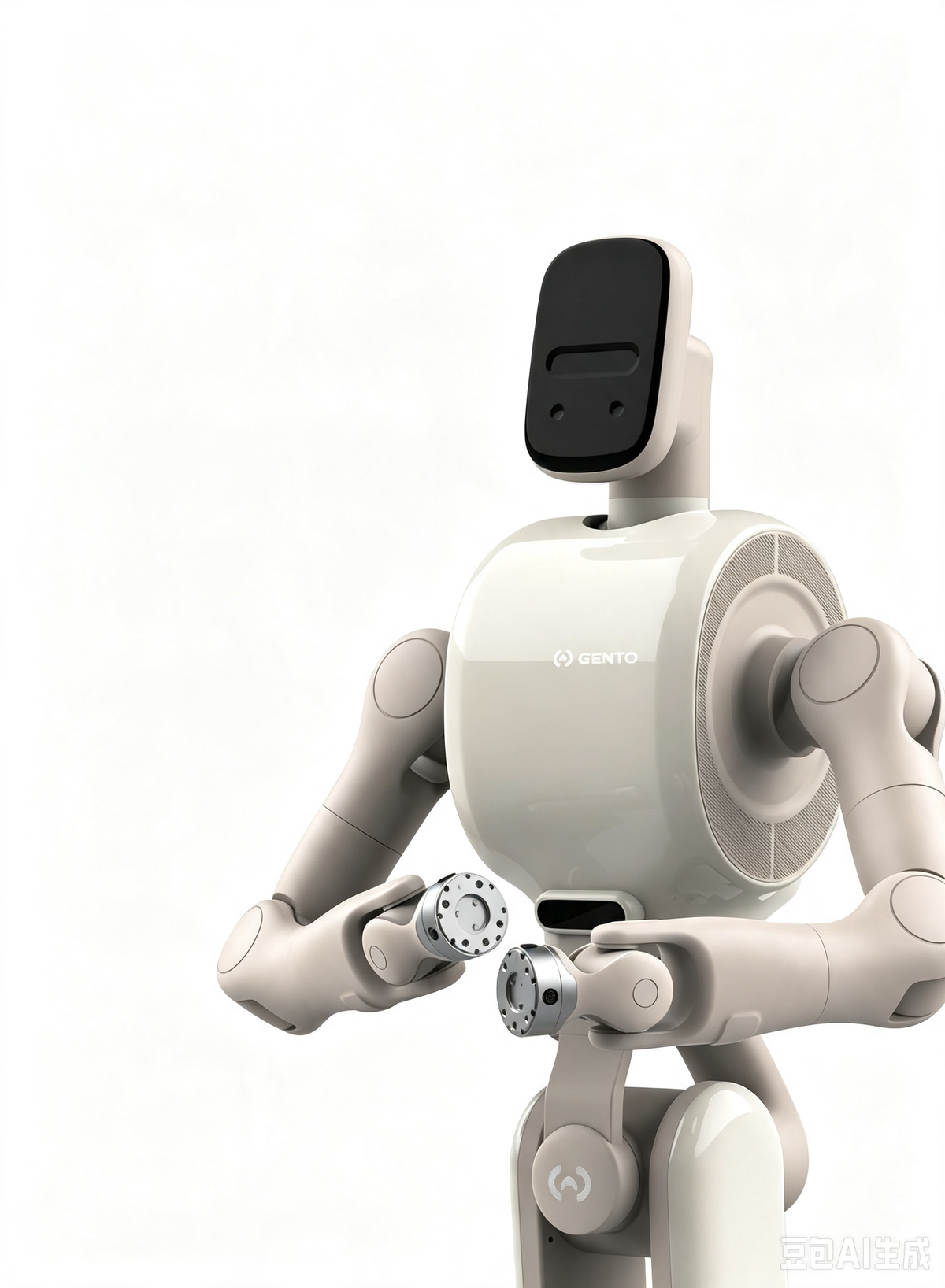

Tianji Gento Luna Wheeled Folding Robot

Tianji Gento Luna is a wheeled folding robot platform designed for robotics research, intelligent automation, and advanced robot development. Combining a dual-arm robotic system, omnidirectional mobile chassis, and open computing platform, Gento Luna provides a flexible foundation for exploring mobile manipulation and embodied robotics applications.

Dual-Arm Force-Controlled Robotic System

Gento Luna features dual 7-DoF robotic arms with standard joint-level force control. The robotic arms support position control, impedance control, load identification, and force-position hybrid control, with a single-arm rated payload of 5kg and repeatability of ±0.03mm.

Omnidirectional Mobile Platform

Equipped with a four-wheel drive and four-wheel steering chassis, Gento Luna supports omnidirectional movement and flexible navigation. The mobile platform provides a rated load of 100kg and integrates navigation capabilities including 3D SLAM navigation, 3D LiDAR mapping, obstacle avoidance, and autonomous charging.

Open Robotics Development Platform

Gento Luna integrates high-performance computing options including NVIDIA Jetson Orin AGX 64GB and supports open robotic development through flexible communication interfaces. With support for robotic software development and expandable components, it provides an ideal platform for universities, research institutions, developers, and robotics applications.

Key Specifications

• Whole machine: 26 DoF (excluding dexterous hands)

• Dual robotic arms: 7 DoF × 2

• Single arm payload: 5kg

• Repeatability: ±0.03mm

• Mobile chassis: Four-wheel drive + four-wheel steering

• Navigation: 3D SLAM, 3D LiDAR, obstacle avoidance

• Computing platform: NVIDIA Jetson Orin AGX 64GB / Jetson Thor option

• Communication interface: Wi-Fi / Ethernet

Applications

Gento Luna is designed for robotics research, education, intelligent automation exploration, human-robot interaction studies, and secondary development of mobile manipulation systems.

Tianji Gento Luna Wheeled Folding Robot
Tianji Gento Luna Wheeled Folding Robot
Tianji Gento Luna Wheeled Folding Robot
Tianji Gento Luna Wheeled Folding Robot
Tianji Gento Luna Wheeled Folding Robot
Tianji Gento Luna Wheeled Folding Robot
▤ Technical Specifications ⌃
Mechanical Arm Parameters
Parameter Specification
Model Luna M6 Lite
Degree of Freedom 7 DoF × 2
Force Control Standard joint-level force control
Rated Load (Single Arm) 5kg
Working Radius (Axis J2 to End Flange) 615mm
TCP Maximum Speed 1.5m/s
Repeatability ±0.03mm
Force Repeatability ≤0.15N
Range of Motion J1:±178°, J2:±120°, J3:±178°, J4:+60°/-145°, J5:±178°, J6:±60°, J7:±90°
Maximum Speed J1~J7:180°/s
Communication Protocol 1 kHz EtherCAT
Brake Control (Braking) Brakes on J1-J4
Function Position Control, Impedance Control, Load Automatic Identification, Force-Position Hybrid Control
Arm End Interface RS485, CAN fd, EtherCAT, CAN, 24V(3A), 48V
End-Effector 6D Force Sensor Optional
End-Effector Camera Optional
End Effector Self-developed Gripper (Optional)
Overall Machine Basic Parameters
Parameter Specification
External Dimensions L670mm×W548mm×H1700mm (standing) L850mm×W548mm×H790mm (folded)
Vertical Workspace 0-2.1m
Gross Weight 144kg
Ambient Temperature -10~40°C
Battery Life 4h-6h
Communication Interface Wi-Fi/Ethernet
Degree of Freedom (Whole Machine) 26 DoF (excluding dexterous hands)
Drive Four-wheel drive + four steered wheels, omni-directional movement
Force Control Standard configuration (whole machine)
Thoracic RGB-D Camera Optional
Head Parameters
Parameter Specification
Degree of Freedom 2 DoF (Pan/Tilt)
Range of Motion J1 Rotation: +90°, J2 Tilt: 30°/-25°
Communication Protocol 1 kHz EtherCAT
Brake Control (Braking Method) All joints equipped with brakes
Camera RGBD + Binocular
Microphone 4-Mic Array
Computing Platform
Parameter Standard Equipment High-Performance Configuration
Main Processor NVIDIA Jetson Orin AGX 64G (275TOPS) NVIDIA Jetson Thor T5000 (2070 TFLOPS)
CPU 12 cores 12 cores
Maximum CPU Frequency 2.2GHz 2.2GHz
Maximum GPU Frequency 1.3GHz 1.3GHz
Thorax
Parameter Specification
Stereophonic Speaker 2 × 5W Speakers
Waist
Parameter Specification
Range of Motion JB3 Rotation: ±170°, JB4 Side-sway: ±30°, JB5 Yaw: 55°/-110°
Force Control Standard
Leg
Parameter Specification
Range of Motion JB6 Yaw:60°/-140°, JB7 Yaw:±90°, JB8 Side-swing:±11°
Force Control Standard
Mobile Chassis Parameters
Parameter Specification
Chassis Dimensions L670mm×W548mm×H386mm
Rated Load 100kg
Power Supply Lithium Iron Phosphate Battery DC48V; 34.4Ah
Charging Methods Manual Charging / Automatic Charging / Battery Swapping
Charging Time ≤1.5h
Speed 1.5m/s
Climbing Angle ≤10°
Stopping Accuracy ±20mm (Position), ±1° (Angle)
Navigation System 3D SLAM Navigation, 3D LiDAR, diagonally mounted Ultrasonic sensors distributed Front/Back/Left/Right, 2 each
Charging Station Optional
Functions 3D LiDAR, navigation planning, dynamic obstacle avoidance, autonomous localization, map building, auto charging, cross-floor navigation or navigation through automatic doors
