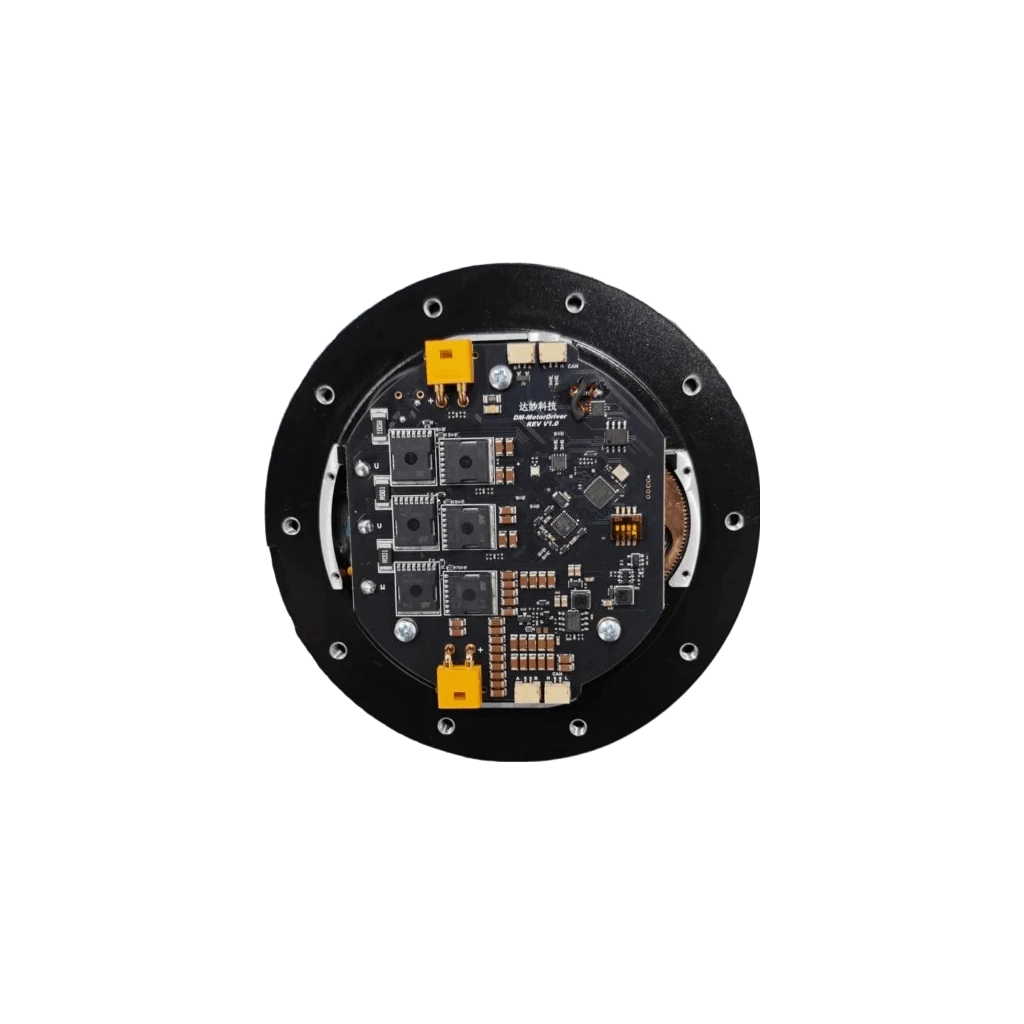

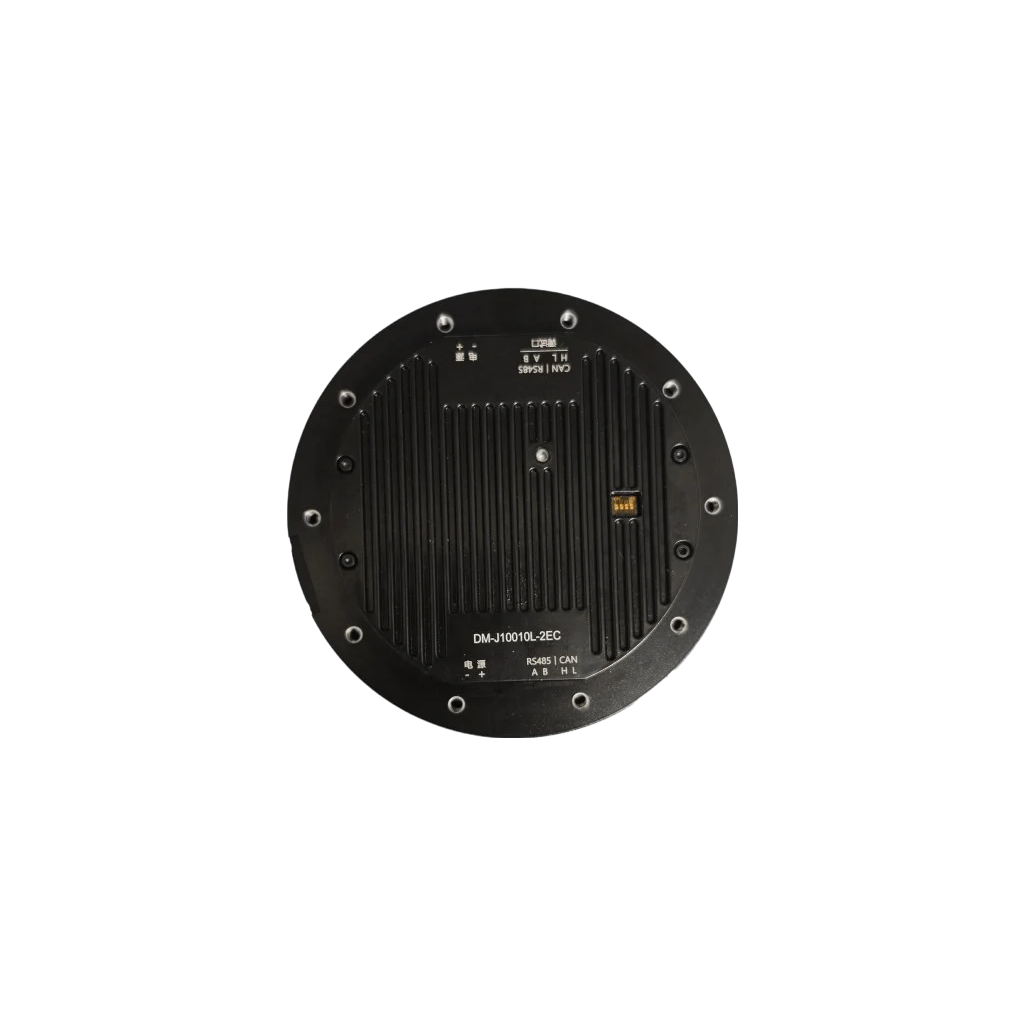

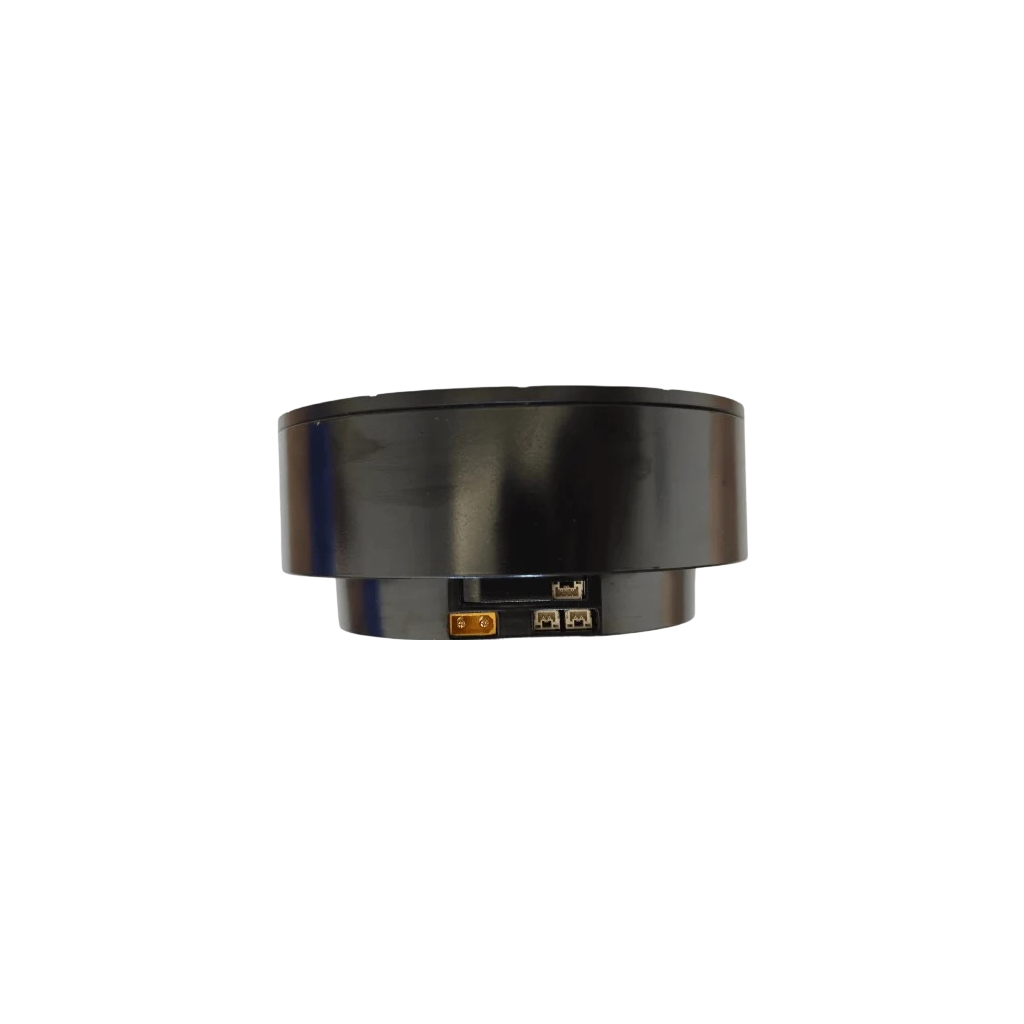

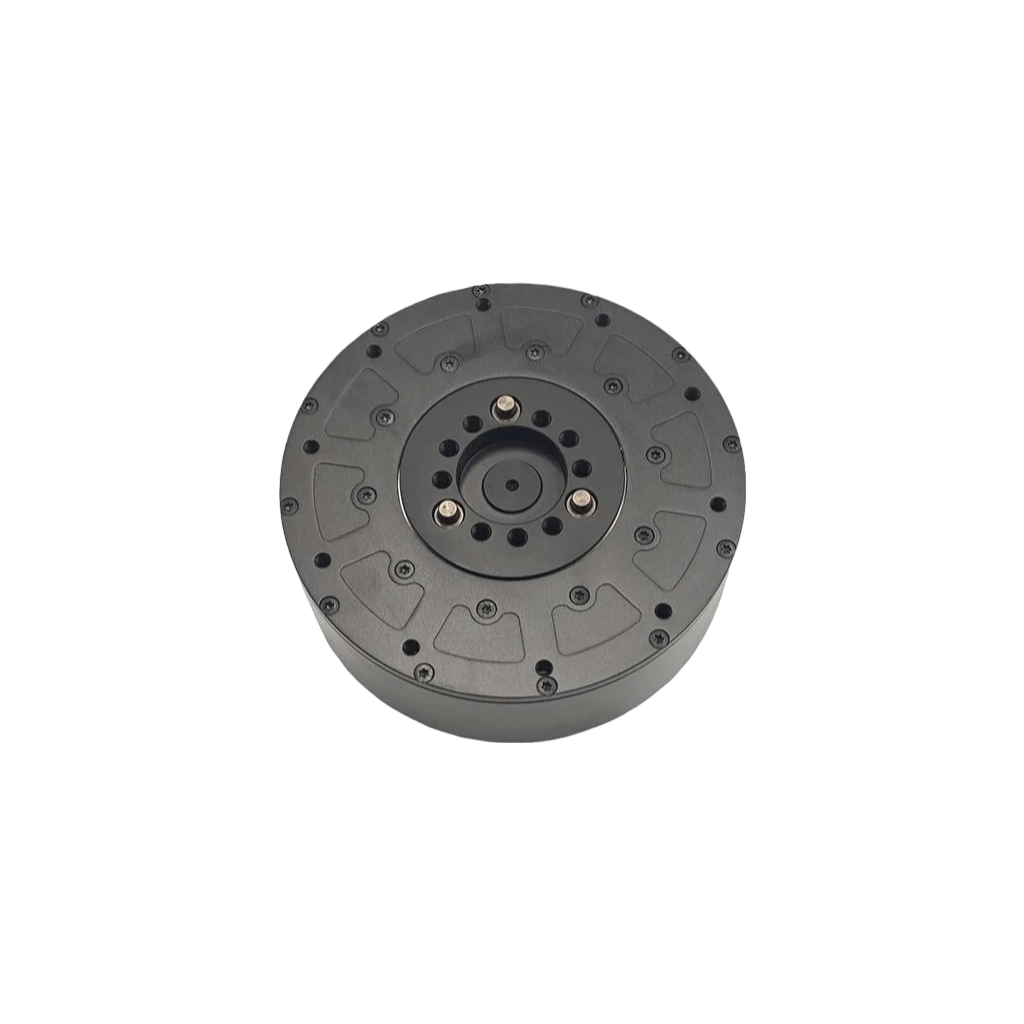

DAMIAO DM-J10010L-2EC Servo Motor for High Load Robotics

Model: DM-J10010L-2EC
$230
Version
Communication Module

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Parameter
Value
Model
DM-J10010L-2EC
Nominal Voltage
48 V DC (Wide-voltage version, supports 24 – 48 V DC power supply)
Nominal Current
23.5 A
Peak Current
95 A
Nominal Torque
40 N·m
Peak Torque
120 N·m
Nominal Speed
24 V: 70 rpm | 48 V: 100 rpm
Maximum No-Load Speed
24 V: 100 rpm | 48 V: 200 rpm
Reduction Ratio
10:1
Pole Pairs
21
Phase Inductance
85 µH
Phase Resistance
0.11 Ω
Outer Diameter
120 mm
Height
53 mm (Excluding positioning pin; protrusion Ø3 × 3 mm)
Motor Weight
1372 g
Encoder Resolution
14-bit
Encoder Quantity
2
Encoder Type
Single-Turn Magnetic Encoder
Control Interface
CAN (1 Mbps)
Configuration Interface
UART (921600 bps)

Technical Documentation

PDF
DM_J10010L_instalation_drawing.pdf
DAMIAO_DM_J10010L_2EC_Motor.zip
PDF
DAMIAO-DM-J10010L-2EC-User_Manual-1-1.pdf
PDF
USB_to_CANFD_Module_User_Manual_V1.0.pdf
