FAIRINO

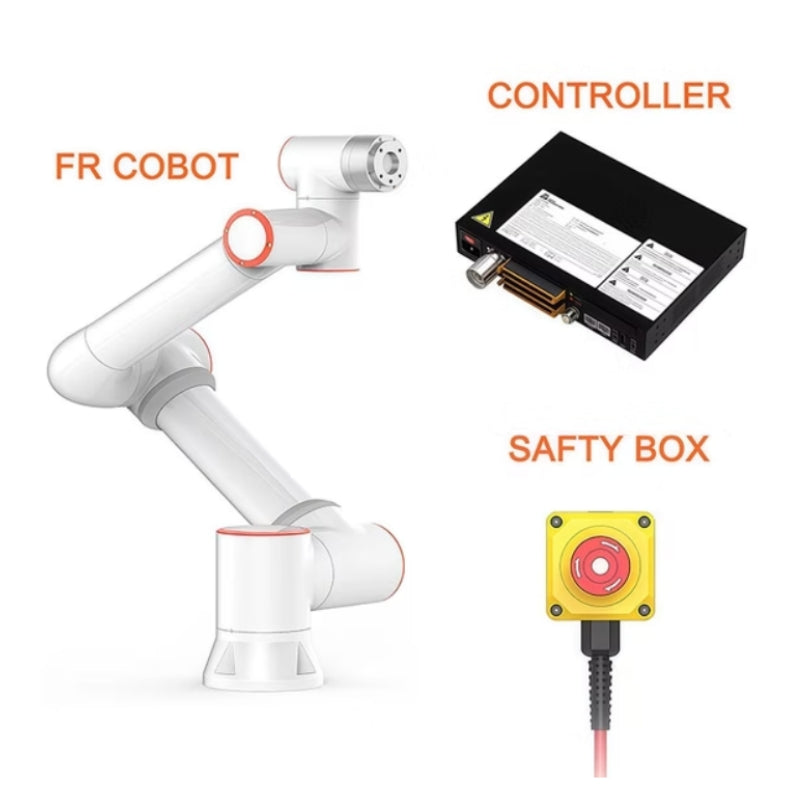

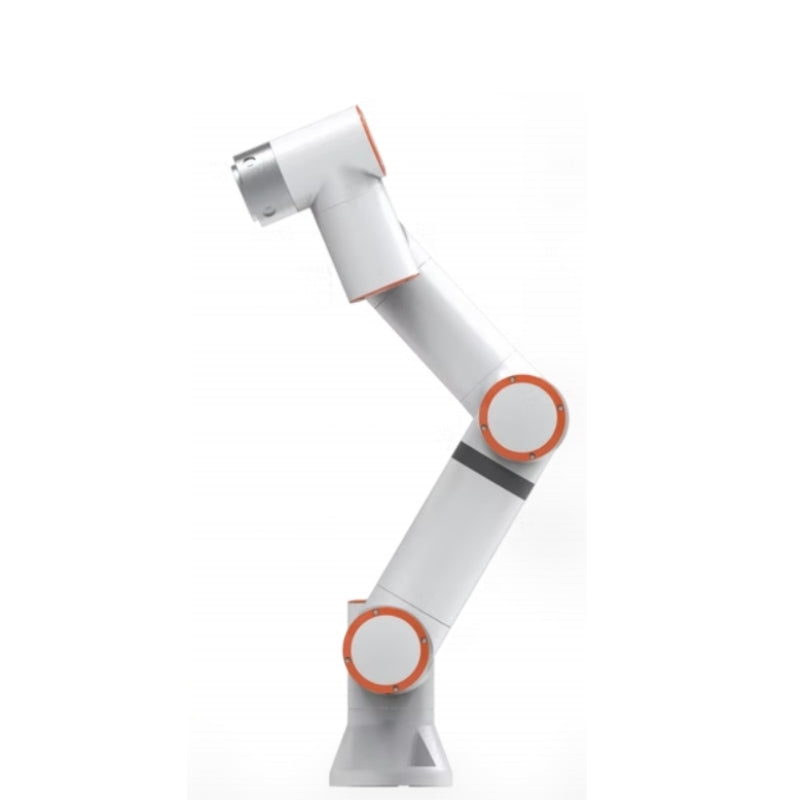

FAIRINO FR3 Series Collaborative Robot Arm

  • Multiple solution to chose: FR3, FR3-C, FR3-WMS and FR3-WML
  • 3kg payload collaborative robot arm with compact 6-axis design
  • Up to 622mm working reach with ±0.02mm repeatability
  • Designed for flexible automation, research, education and robotic integration
$6,799
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

FAIRINO FR3 Series product overview, specification, techinical drawings.pdf ▶

FAIRINO FR3 Series Compact Collaborative Robot Arm

The FAIRINO FR3 Series is developed for applications requiring a compact and flexible robotic solution. Its lightweight structure and small footprint allow easier deployment in production environments where workspace efficiency is important.

The series supports different configurations to match application requirements. The standard FR3 and FR3-WMS models provide a 622mm reach, while the FR3-WML extends the working reach to 922mm, allowing users to select the suitable configuration based on workspace requirements.

Precision Motion and Reliable Performance

The FR3 Series features a six-axis articulated structure with precise motion control. The FR3 model provides:


  • Payload: 3kg

  • Reach: 622mm

  • Repeatability: ±0.02mm

  • Maximum TCP speed: 1m/s

These specifications make the robot suitable for applications requiring accurate positioning and repeatable motion, including assembly, inspection, handling, and robotic research.

Multiple Configurations for Different Applications

The FR3 Series includes several variants:

FR3

A compact collaborative robot designed for general automation applications.

FR3-C

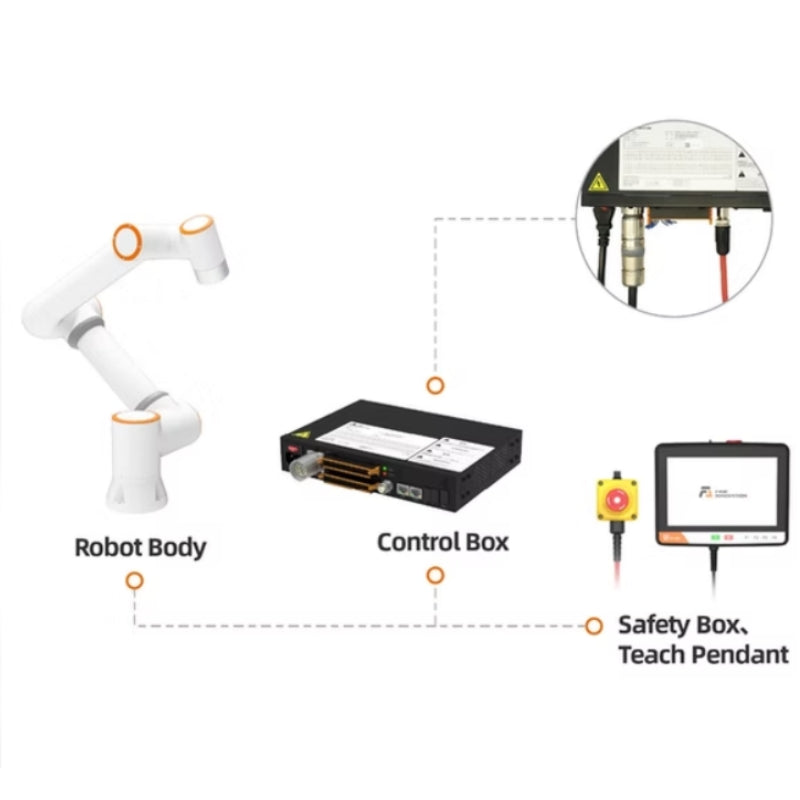

A configuration with integrated controller design, suitable for simplified deployment scenarios.

FR3-WMS

A compact variant optimized for specific workspace requirements.

FR3-WML

A longer-reach version with a 922mm working range for applications requiring extended workspace coverage.

Open Integration and Robotic Development

FAIRINO collaborative robots support integration with common robotic development environments. According to the product brochure, FAIRINO controllers support programming interfaces including C#, C++, Python, ROS and ROS2, enabling integration into customized automation systems and robotic research workflows.

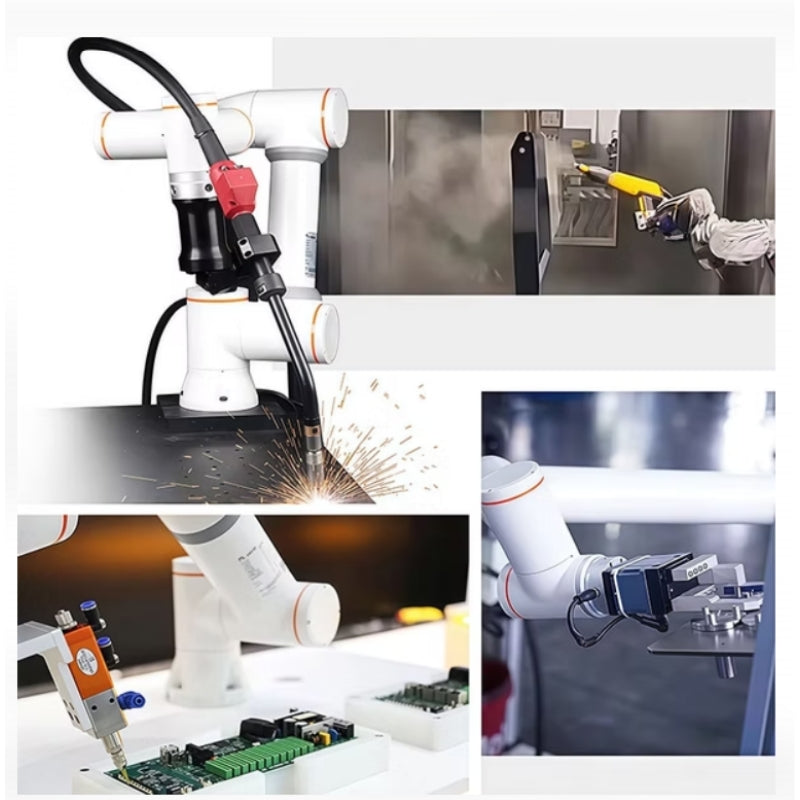

Applications

FAIRINO FR3 Series is suitable for:


  • Assembly automation

  • Pick and place operations

  • Quality inspection

  • Laboratory research

  • Robotics education

  • Small-scale manufacturing automation
▤ FAIRINO FR3 Series Specifications ⌃
Robot Arm Technical Specifications
Specification FR3 FR3-C FR3-WMS FR3-WML
Payload 3kg (Max: 5kg) 3kg 3kg 3kg
Reach 622mm 922mm
Degrees of Freedom 6 rotating joints

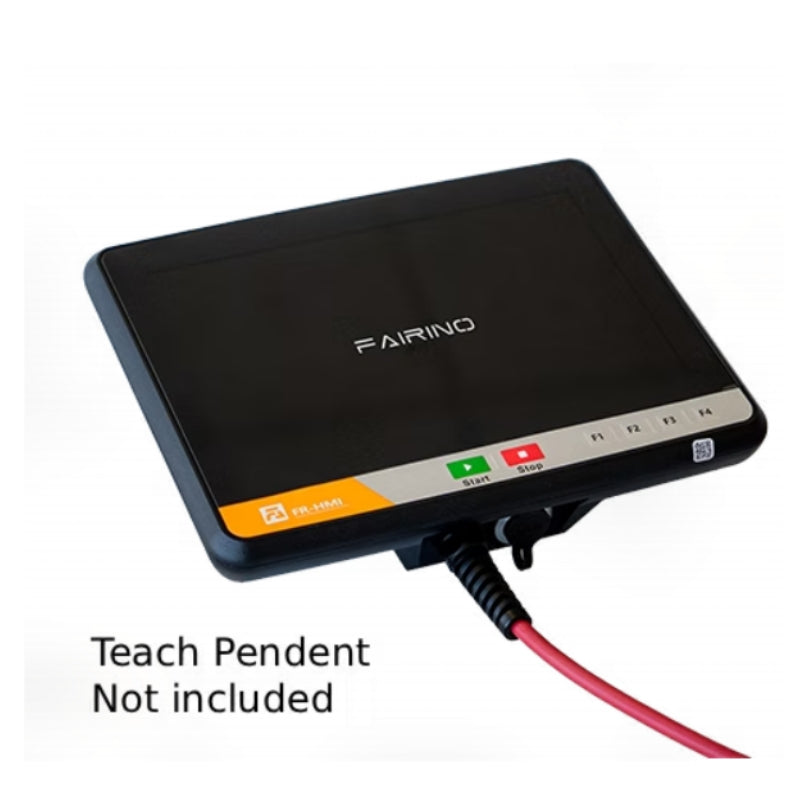

HMI 10.1 inch teach pendant (Optional) or mobile terminal Web App Not support teach pendant - 10.1 inch teach pendant (Optional) or mobile terminal Web App
Dual arm robotics applications Mirror versions available to build dual arm robots
Pose repeatability per ISO 9283 ±0.02mm ±0.05mm ±0.02mm ±0.05mm

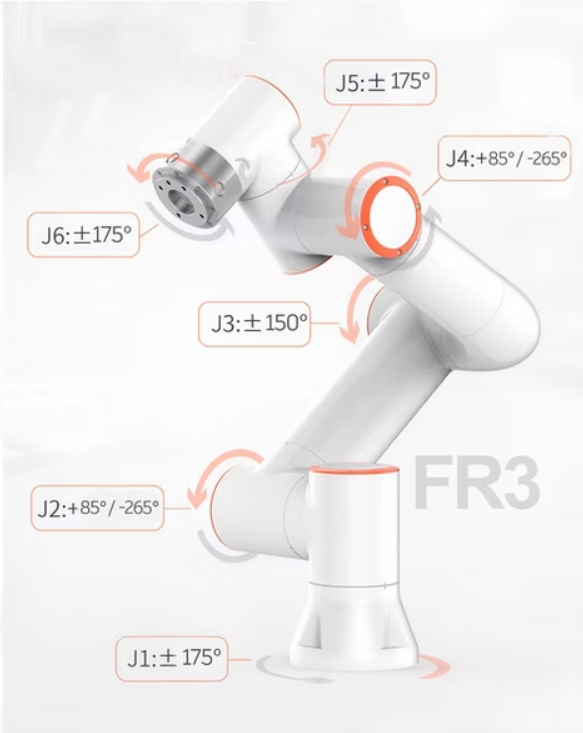

Base Working Range ±175°
Base Maximum Speed ±180°/s ±150°/s
Shoulder Working Range +85° / -265°
Shoulder Maximum Speed ±180°/s ±150°/s
Elbow Working Range ±150° ±150°
Elbow Maximum Speed ±180°/s ±150°/s
Wrist 1 Working Range +85° / -265°
Wrist 1 Maximum Speed ±180°/s ±150°/s
Wrist 2 Working Range ±175°
Wrist 2 Maximum Speed ±180°/s
Wrist 3 Working Range ±175° (Optional ±360°) ±175° ±360° ±360°
Wrist 3 Maximum Speed ±180°/s
Typical TCP Speed 1m/s
IP Classification IP54 (IP65 Optional) IP54 IP54 (IP65 Optional) IP54 (IP65 Optional)
Noise <65dB
Robot Mounting Any orientation
Digital Input / Output (DI) 2 / (DO) 2
Analog Input / Output (AI) 1 / (AO) 1
Tool I/O Power Supply 24V / 1.5A
Footprint 128mm 128mm
Weight ≈15kg ≈14kg ≈10.5kg ≈11.25kg
Operating Temperature 0 ~ 45°C
Operating Humidity 90%RH (non-condensing)
Materials Aluminium, Steel
Black Optional no
Typical Power Test Payload Setting FR3 payload setting: 3kg, Z-axis: 18mm FR3-C payload setting: 3kg, Z-axis: 18mm FR3-WMS payload setting: 3kg, Z-axis: 18mm FR3-WML payload setting: 3kg, Z-axis: 18mm
Typical Average Power 220W 260W 90W 140W
Typical Peak Power 280W 320W 130W 240W
