Rokae

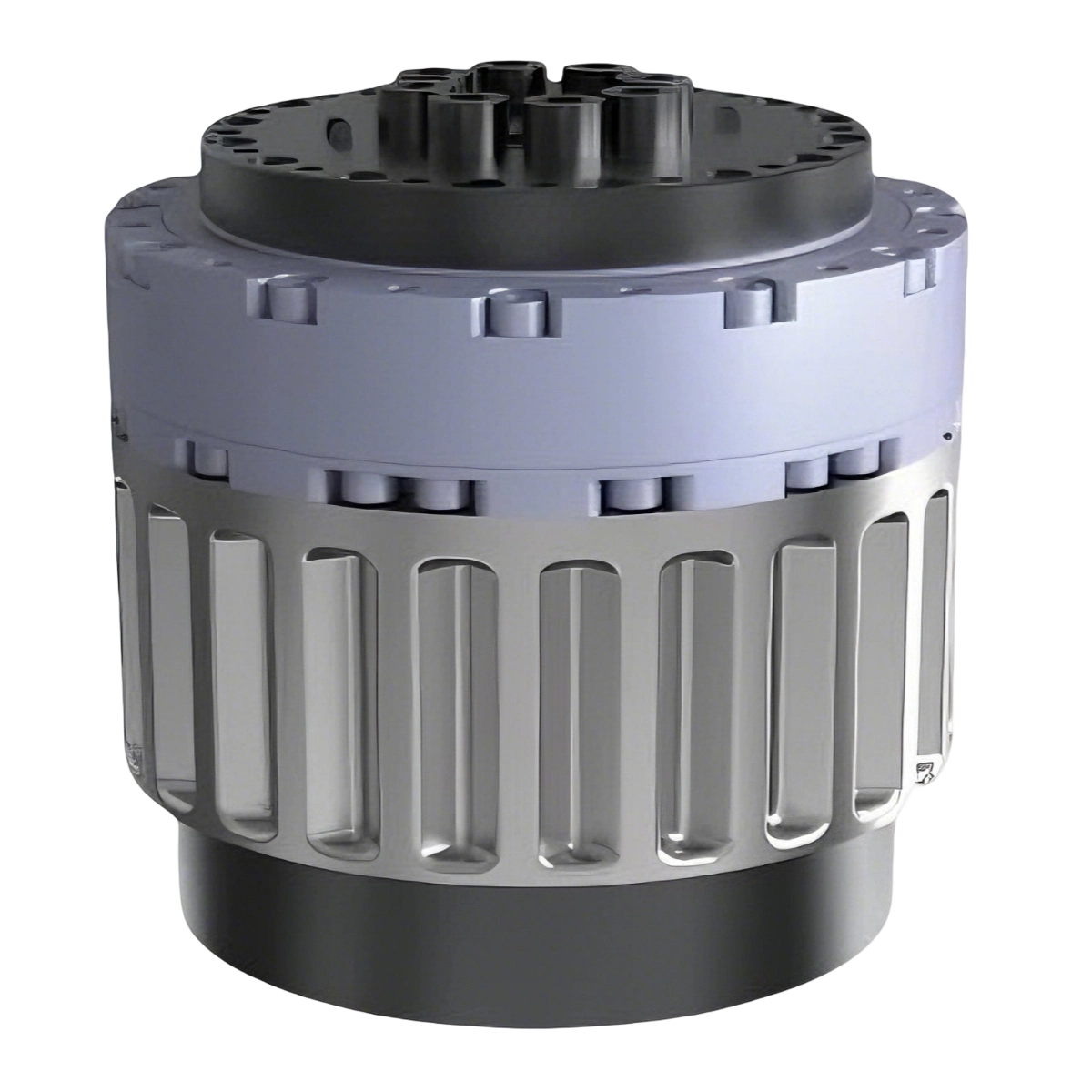

Rokae HSA-32 Force-Controlled Robot Joint for Precision Robotics

The HSA joint modules are lightweight, compact, and highly integrated, with the smallest unit weighing just 450g. Such design eliminates the need for additional redundant components, enabling fast and efficient assembly.

$1,430

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

A key building block for advanced robotics

With high-bandwidth force control and fast friction compensation, robots can be guided effortlessly by hand — yet stay stable and precise under load.
Switching seamlessly between soft compliance and solid stiffness, HSA joints enable smooth interaction, accurate motion, and safer human–robot collaboration.

Rokae Force-Controlled Joints HSA-32

Lightweight & Highly Integrated


• Single-plane encoder layout; minimum joint weight: 450 g
• Large hollow bore diameter 10% larger than industry average,saving 20% installation space and significantly lowering equipment integration burden

Benchmark Force-Control Technology

• "Micro-gram" force sensing ≤0.05 N.m torque sensor resolution
• High-performance frameless torque motor, max speed 6000 rpm
• 32 kHz force-control sampling + 1 kHz impedance control
• Force-controlled closed-loop bandwidth 100 Hz

Powerful & Reliable Performance

• High-precision harmonic reducer, torque density up to 48 Nm/kg,peak torque 459 Nm
• 300% F.S. overload capacity + electromagnetic holding brake,operating temperature 0-50°C, dual absolute encoder redundancy for stable operation under extreme conditions

Universal & Easy Integration

• Hollow bore diameter: 6~21 mm
• Supports EtherCAT communication (cycle time 1 ± 0.1 ms), plug-and-play compatibility with a wide range of devices
▤ PARAMETER ⌃
Motor Type
Inner-rotor Frameless Torque Motor
Dimension (Diameter/Length, mm)
142/135
Hollow Inner Diameter (mm)
21
Weight (With/Without Brake, g)
6000 (with)
Operating Voltage (V)
48
Joint Rated Power (W)
950
Gear Ratio
120
Rated Speed (rpm)
20
Torque Density (Nm/kg)
46.8
Max Allowable Avg Load Torque (Nm)
281
Peak Torque (Nm)
459
Torque Sensor Rated Torque (Nm)
480
Torque Sensor Resolution (Nm)
≤0.05
Torque Limit (Nm)
1440
Force Control Closed-Loop Bandwidth
100Hz
Impedance Control Frequency
1kHz
Force Control Sampling Frequency
32kHz
Encoder Precision (bit)
18
Encoder Type
Dual Absolute
Communication
EtherCAT

Next Generation Integrated Force-Controlled Joints HSASeries Parameter Specifications

Swipe to compare →
Rokae HSA-11 Force-Controlled Robot Joint for Precision Robotics_01
Rokae HSA-11 Force-Controlled Robot Joint for Precision Robotics
$930
Rokae HSA-14 Force-Controlled Robot Joint for Precision Robotics_01
Rokae HSA-14 Force-Controlled Robot Joint for Precision Robotics
$980
Rokae HSA-17 Force-Controlled Robot Joint for Precision Robotics_01
Rokae HSA-17 Force-Controlled Robot Joint for Precision Robotics
$1,100
Rokae HSA-20 Force-Controlled Robot Joint for Precision Robotics_01
Rokae HSA-20 Force-Controlled Robot Joint for Precision Robotics
$1,240
Rokae HSA-25 Force-Controlled Robot Joint for Precision Robotics_01
Rokae HSA-25 Force-Controlled Robot Joint for Precision Robotics
$1,360
Rokae HSA-32 Force-Controlled Robot Joint for Precision Robotics_01
Rokae HSA-32 Force-Controlled Robot Joint for Precision Robotics
$1,430
Motor Type
Inner-rotor Frameless Torque Motor
Inner-rotor Frameless Torque Motor
Inner-rotor Frameless Torque Motor
Inner-rotor Frameless Torque Motor
Inner-rotor Frameless Torque Motor
Inner-rotor Frameless Torque Motor
Dimension (Diameter/Length, mm)
52/68
60/74
72/98
82/107
110/115
142/135
Hollow Inner Diameter (mm)
6
9
10
13
15
21
Weight (With/Without Brake, g)
413 (without)*1
600 (with)
1100 (with)
1700 (with)
2950 (with)
6000 (with)
Operating Voltage (V)
48
48
48
48
48
48
Joint Rated Power (W)
40
120
160
250
600
950
Gear Ratio
100
100
100
120
100
120
Rated Speed (rpm)
30
30
30
30
30
20
Torque Density (Nm/kg)
19.8
12.8
46.4
37.6
47.5
46.8
Max Allowable Avg Load Torque (Nm)
8.9
7.7/14*2
51
64
140
281
Peak Torque (Nm)
11
19
70
113
204
459
Torque Sensor Rated Torque (Nm)
12
25
70
110
210
480
Torque Sensor Resolution (Nm)
≤0.05
≤0.05
≤0.05
≤0.05
≤0.05
≤0.05
Torque Limit (Nm)
36
75
210
330
630
1440
Force Control Closed-Loop Bandwidth
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
Impedance Control Frequency
1kHz
1kHz
1kHz
1kHz
1kHz
1kHz
Force Control Sampling Frequency
32kHz
32kHz
32kHz
32kHz
32kHz
32kHz
Encoder Precision (bit)
18
18
18
18
18
18
Encoder Type
Dual Absolute
Dual Absolute
Dual Absolute
Dual Absolute
Dual Absolute
Dual Absolute
Communication
EtherCAT
EtherCAT
EtherCAT
EtherCAT
EtherCAT
EtherCAT
