Yunshis S10 Camera | RGBD Depth Camera for Robotics & AI Vision

  • Imaging resolution: 240 × 160 @ Max. 20 fps, Typical 15 fps
  • Frame rate: 240 × 160 @ Max. 20 fps, Typical 15 fps
  • Interface: Ethernet / IO
  • Field of view: 90° × 61°
  • Designed for robot vision, AI perception, automation, and robotics development
$600
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Yunshis S10 Camera | RGBD Depth Camera for Robotics & AI Vision dimensional drawing and mechanical reference ▶

Yunshis S10 Camera

Yunshis S10 Camera is a Yunshis robot camera for AI vision, robotics perception, automation, and research development.

Features

  • Imaging resolution: 240 × 160 @ Max. 20 fps, Typical 15 fps
  • Frame rate: 240 × 160 @ Max. 20 fps, Typical 15 fps
  • Interface: Ethernet / IO
  • Field of view: 90° × 61°
  • Designed for robot vision, AI perception, automation, and robotics development
Yunshis S10 Camera detail image 1
Yunshis S10 Camera detail image 2
Yunshis S10 Camera detail image 3
Yunshis S10 Camera detail image 4
Yunshis S10 Camera detail image 5
Yunshis S10 Camera detail image 6
Yunshis S10 Camera detail image 7
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Model
S10
Working Principle
DTOF Depth Camera
Output Format

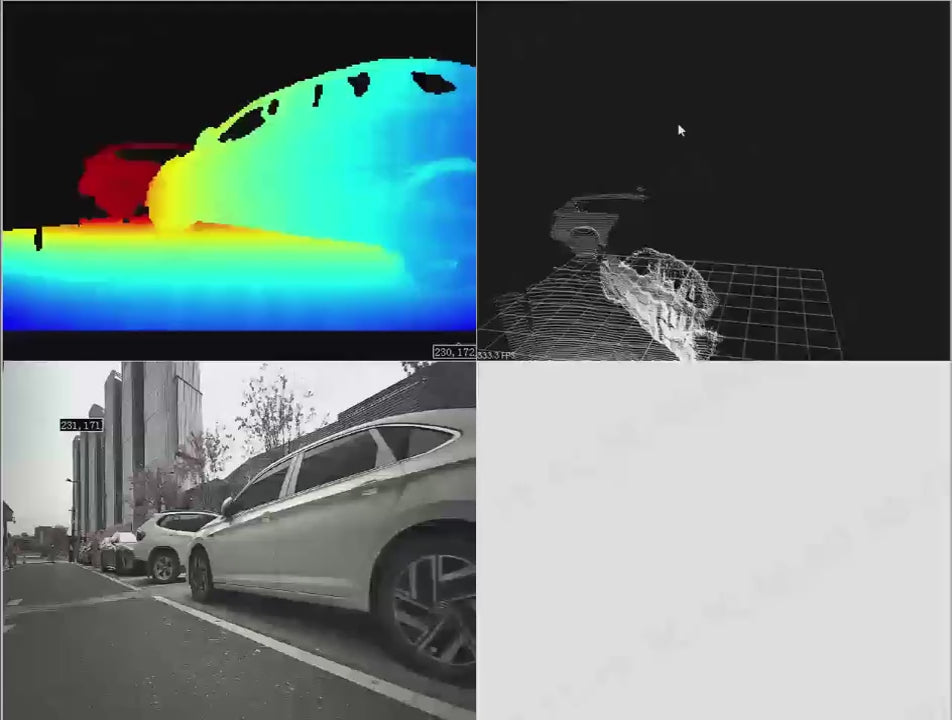

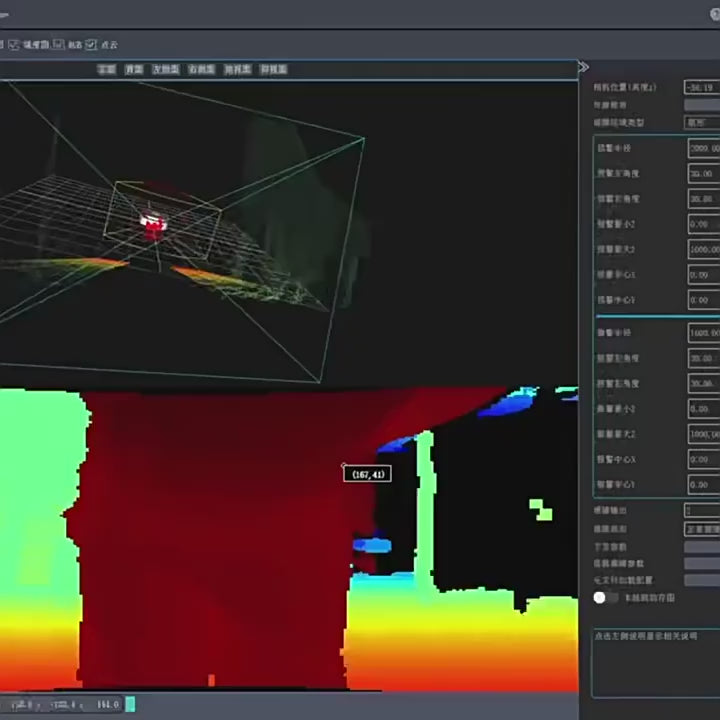

Depth & RGB & Amplitude Map
TOF Resolution & Frame Rate
240 × 160 @ Max. 20 fps, Typical 15 fps
TOF FOV
90° × 61°
RGB Resolution & Frame Rate
1920 × 1080 @ Max. 20 fps, Typical 15 fps
RGB FOV
90° × 70°
Distance Range
0.3 - 8 m (@90% refl); 0.3 - 3 m (@5% )
Accuracy
1standard deviation<3cm Room temperature(25°),70%ref, <50klux illumination
Power Consumption
≤ 4 W & 28 W
Laser Wavelength
940 nm
Dimension (W×H×D)
80 mm × 25 mm × 37 mm
Weight
≤ 300 g
Power Supply
24 V ± 20%
Communication Interface
Ethernet / IO
IP Rating
IP54
Operating Temperature
-20 ~ 60 °C
Storage Temperature
-40 ~ 85 °C
Software Environment
C / C++ / ROS SDK
Supported OS
Windows 7/8/10/11, Linux, Arm Linux/ROS
Cooling Method
Passive cooling(passive, nofan)
