FEETECH

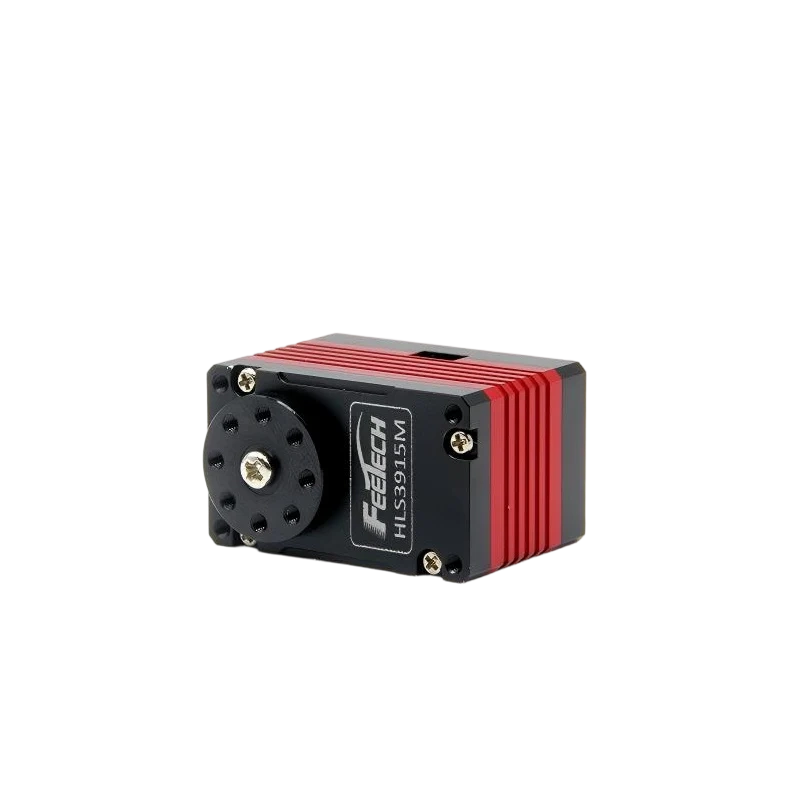

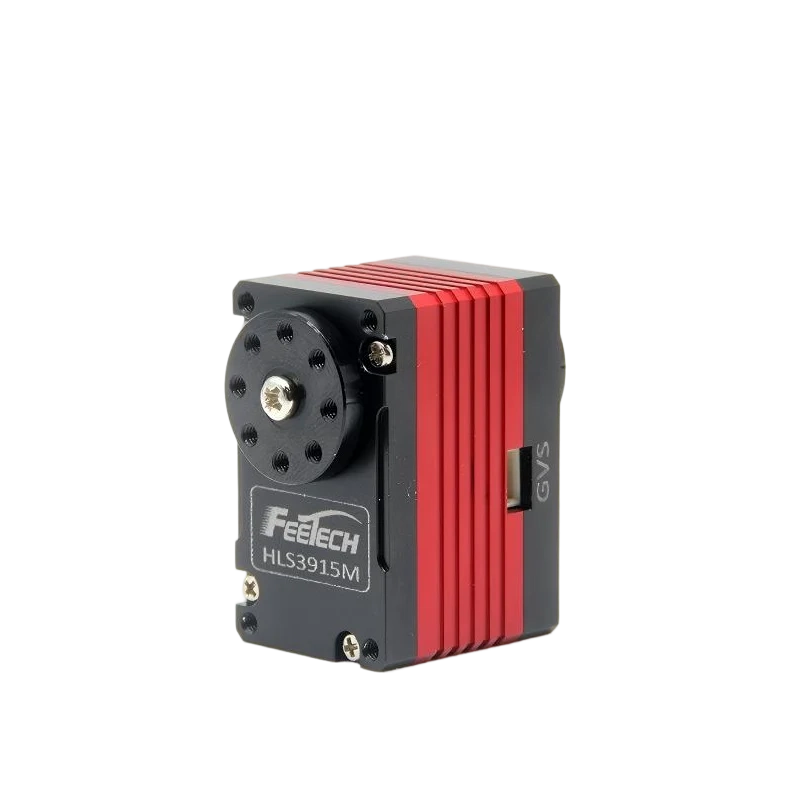

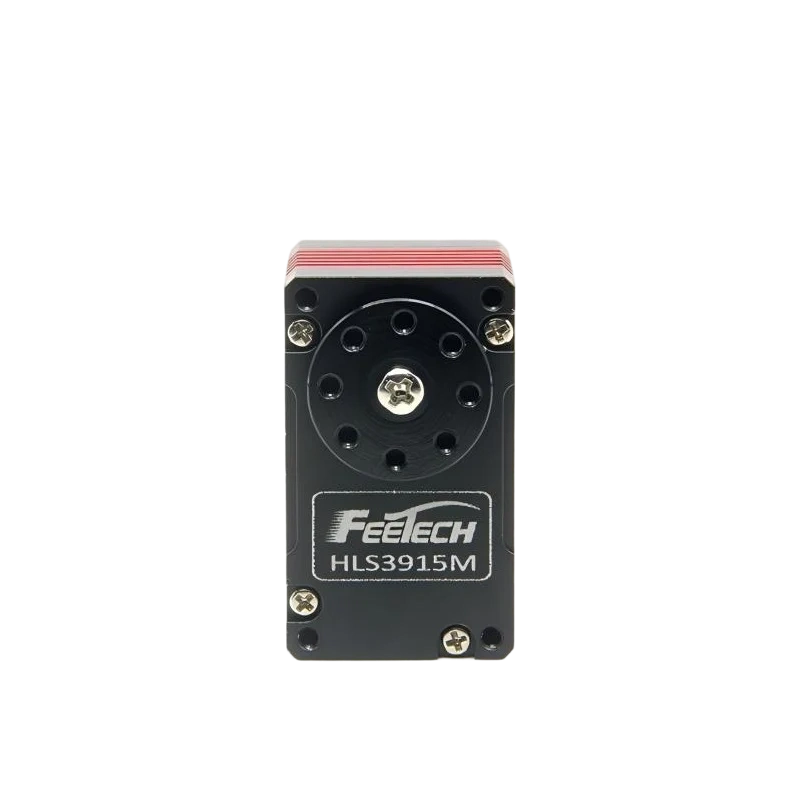

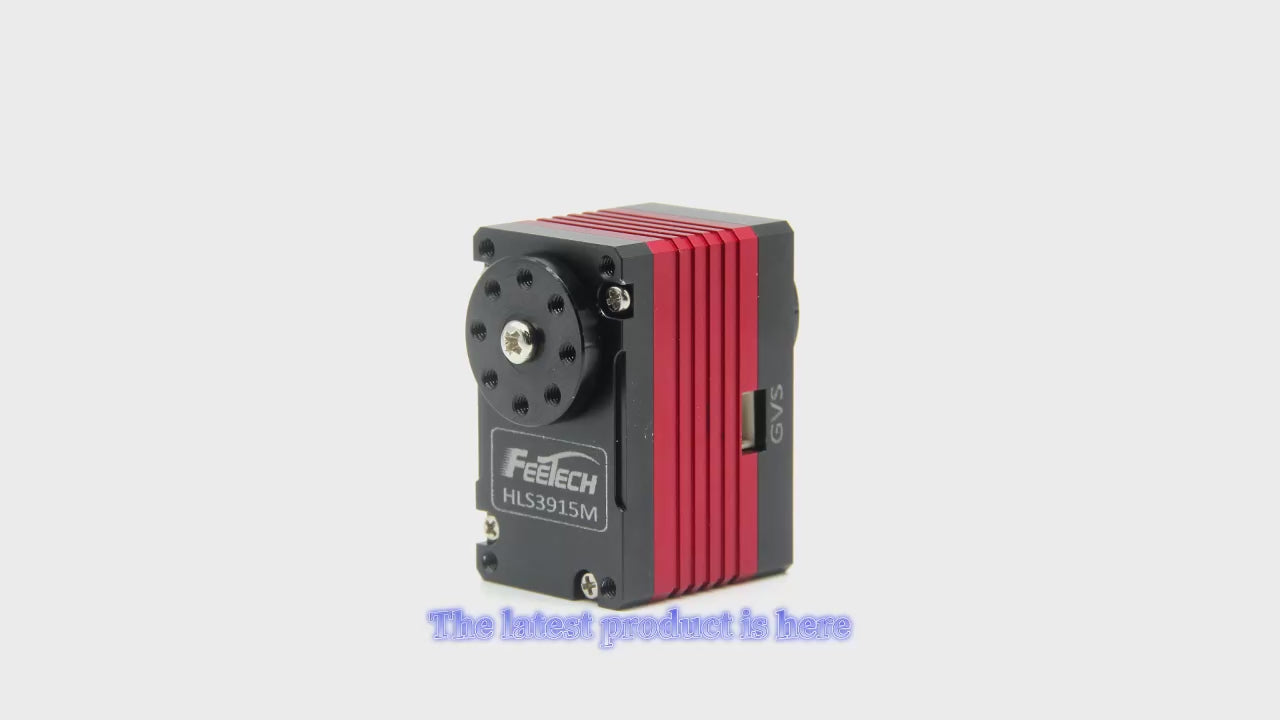

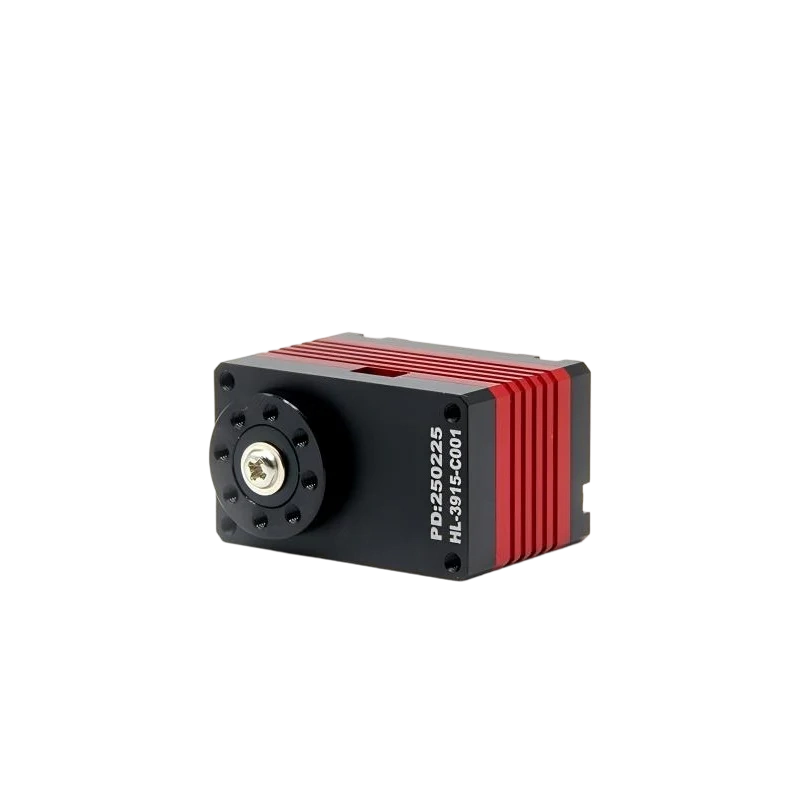

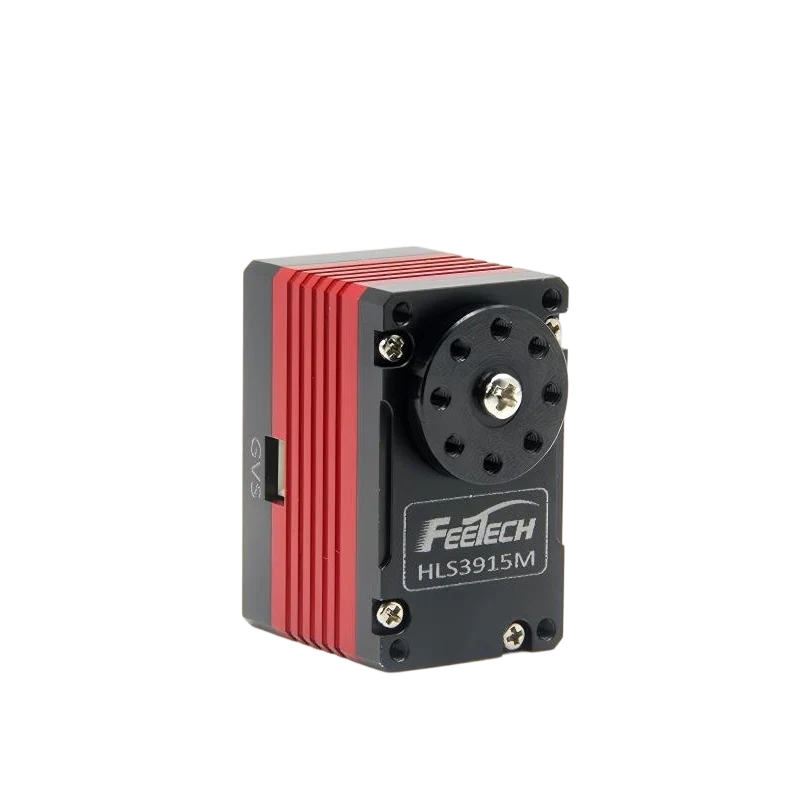

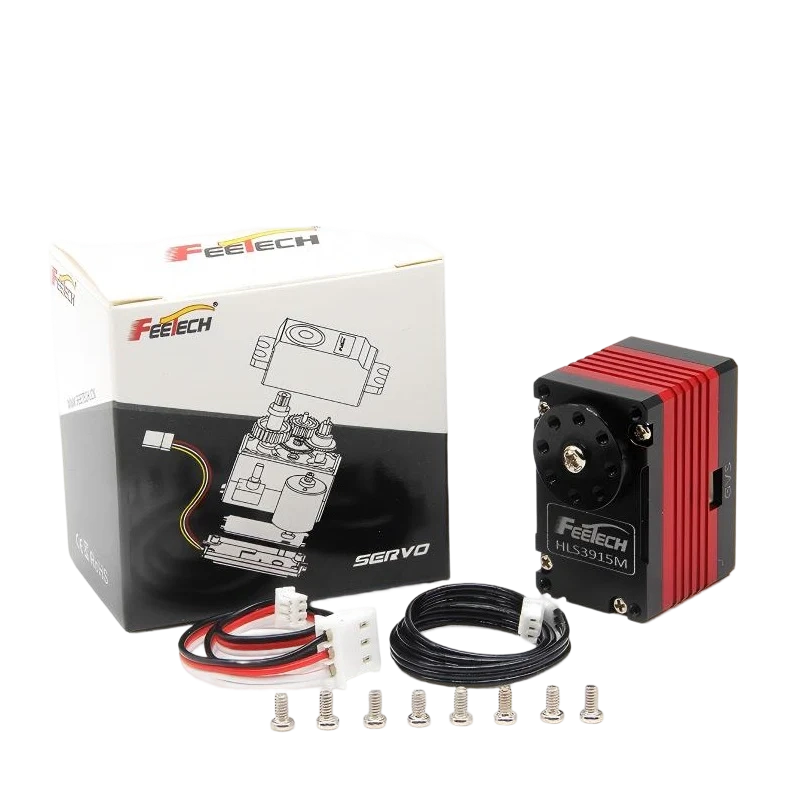

FEETECH HL-3915 Servo Motor for Robotics & Robot Joints

Model: HL-3915-C001

Product Name: 12V 14kg double shaft constant force TTL serial bus servo

$100
Version

Care Information

Operate this precision servo within the specified voltage and load limits, and avoid stall conditions or prolonged overload. Ensure correct wiring and secure mechanical mounting with proper alignment. Do not disassemble or expose the unit to excessive shock, moisture, or contaminants; installation should be performed by qualified personnel.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
≡ PARAMETER ⌃
Storage Temperature Range
-30℃～80℃
Operating Temperature Range
-10℃～60℃
Temperature Range
25℃ ±5℃
Humidity Range
65%±10%
Size
A：20mm; B：34mm; C：23mm
Weight
35.8±2g
Gear type
Metal Gear
Limit angle
NO limit
Bearing
Ball bearings
Horn gear spline
25T/OD4.95mm
Gear Ratio
1/320
The rocker phantom
0°
Case
Aluminium
Connector wire
15CM/20CM
Motor
Coreless Motor
Rated Input Voltage
4V-14V
No load speed
0.1sec/60°(100RPM)@12V
Runnig current(at no load)
260mA@12V
Peak stall torque
14.2kg.cm@12V
Stall current
1.5A@12V
Rated Load
4.5kg. cm@12V
Rated current
500mA@12V
KT
9.3kg. cm/A
Operating Mode 0
Angle servo mode (default mode, absolute position controllable from 0-360 degrees)
Operating Mode 1
Motor constant speed mode
Operating Mode 2
Motor constant current mode
Multi-Loop Mode
Control of ±7 turns (high accuracy)
Constant force output
Maintains set torque output
Command signal
Digital Packet
Protocol Type
Half Duplex Serial
ID range
0-253
Communication Speed
38400bps ~ 1 Mbps
Control Algorithm
PID
Neutral Position
180°（2048）
Running degree
360° (0~4095)
Resolution [deg/pulse]
0.088°
Rotating Direction
Clockwise
Feedback
Load, Position, Speed, Voltage, Current, Temperature

Technical Documentation

STP
FEETECH_HL_3915_Servo_Motor.stp
PDF
HL3915_Product_structure_diagram.pdf
PDF
HL3915-PRODUCT_SPECIFICATION.pdf
