DAMIAO

DAMIAO DM-H65-1EC Compact Servo Motor for Robotics

Model: DM-H65-1EC

$135
Version

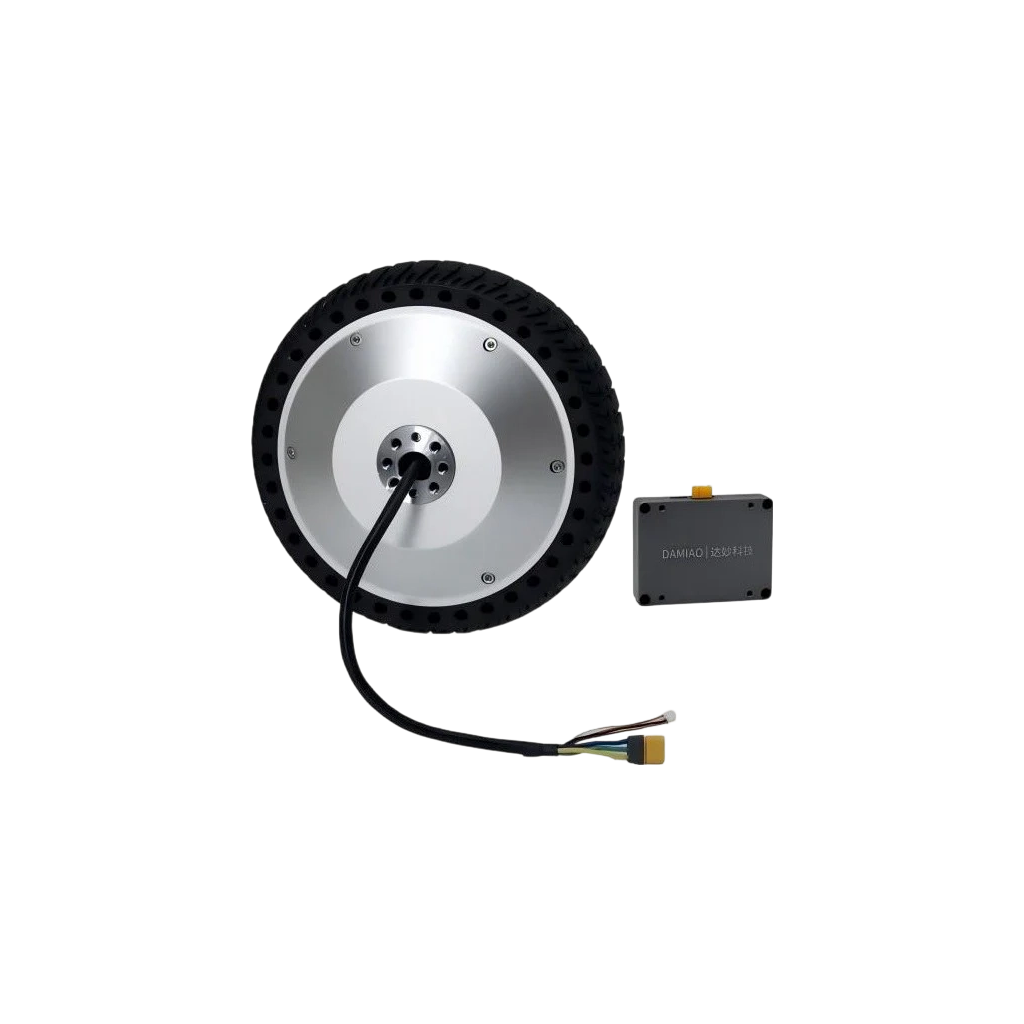

Communication Module

Care information

Store in a dry, dust-free environment and avoid impact or excessive vibration during handling. Do not disassemble the motor or modify internal components, as this may affect performance and void warranty. Ensure proper voltage supply and secure mounting before operation.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Technical Specifications

Parameter Value
Model DM-H65-1EC
Supported Voltage 24 V / 36 V / 48 V DC (Wide-Voltage Version)
Nominal Current 9.4 A / 5.10 A @ 24 V | 9.4 A / 3.45 A @ 36 V | 9.4 A / 2.56 A @ 48 V
Peak Current 33.6 A / 21.55 A @ 24 V | 33.6 A / 14.00 A @ 36 V | 33.6 A / 10.40 A @ 48 V
Nominal Torque 6.0 N·m
Peak Torque 21.5 N·m
Nominal Speed 120 rpm
Maximum No-Load Speed 260 rpm @ 24 V | 395 rpm @ 36 V | 480 rpm @ 48 V
Number of Slots 27
Pole Pairs 15
Phase Inductance 750 µH (@25°C)
Phase Resistance 420 mΩ (@25°C)
Outer Diameter 171 mm
Height 66.3 mm
Motor Weight 3150 g
Encoder Resolution 17-bit
Encoder Accuracy ±0.05°
Number of Encoders 1
Control Interface CAN (5 Mbps Max)
Configuration Interface UART (921600 bps)
Control Modes MIT Mode | Velocity Mode | Position Mode | Impedance / Force-Position Hybrid Mode

Technical Documentation

STP
DAMIAO_DM_H65_1EC.STEP
PDF
DAMIAO_DM-H65-1EC_instalation_drawing.pdf
PDF
DM-H65-1EC_User_Manual-1-3.pdf
PDF
USB_to_CANFD_Module_User_Manual_V1.0.pdf
