HIGH TORQUE

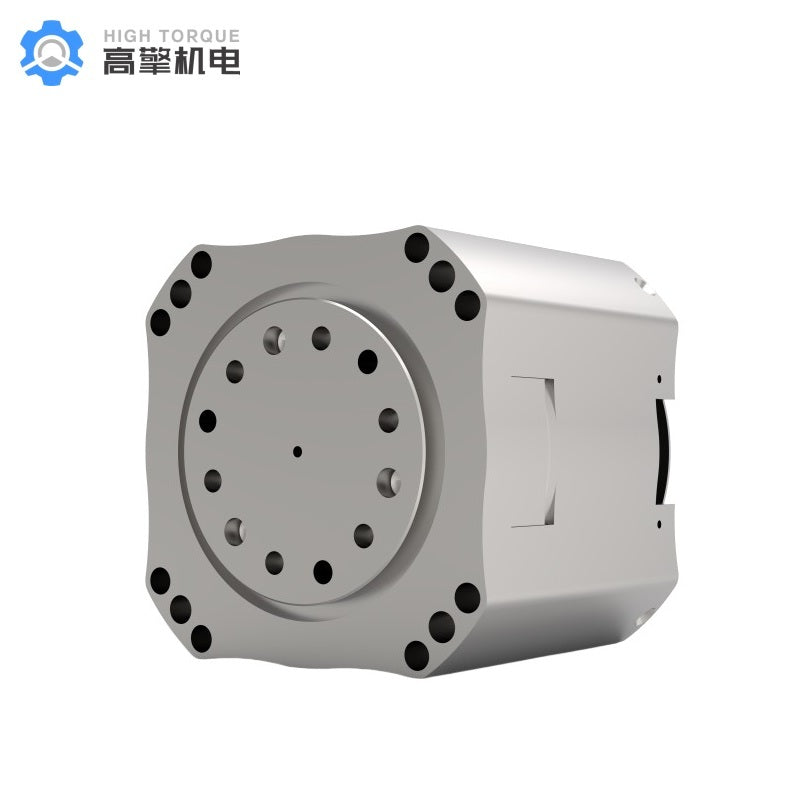

HIGH TORQUE HTDW-6056-36-NE-JC Motor

  • Suitable for robotics development, automation prototypes, education labs, and research platforms.
  • Designed for compact robot hardware integration where torque density and reliable motion are required.
  • Useful for robot joint modules, mobile robots, humanoid projects, and precision motion systems.
$255
Version
Terminal resistance

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

HIGH TORQUE HTDW-6056-36-NE-JC Motor

The HIGH TORQUE HTDW-6056-36-NE-JC Motor is a high torque robot servo motor for robotics development, actuator integration, automation prototypes, and research platforms. It is intended for engineering teams building compact robotic joints, motion modules, and robot hardware systems.

Features

  • **Robot actuator integration:** Suitable for robotic joints, motion modules, and servo-driven hardware.
  • **Robotics development:** Supports education, research, prototyping, and automation projects.
  • **High torque motor application:** Built for compact designs where torque output and controlled motion matter.
  • **Engineering documentation:** Use the attached product-specific files for mechanical and integration reference when available.

Developer Support

HIGH TORQUE Motor Debugging Assistant User manual.pdf: HIGH TORQUE HTDW-6056-36-NE-JC Motor product documentation with specifications and integration reference. ▶ Debugging Manual.pdf: HIGH TORQUE HTDW-6056-36-NE-JC Motor product documentation with specifications and integration reference. ▶ 1.2 fdcan Protocol Analysis.pdf: HIGH TORQUE HTDW-6056-36-NE-JC Motor product documentation with specifications and integration reference. ▶ User Manual.pdf: HIGH TORQUE HTDW-6056-36-NE-JC Motor product documentation with specifications and integration reference. ▶ HIGH TORQUE HTDW-6056-36-NE-JC Motor 3D Model.STP: HIGH TORQUE HTDW-6056-36-NE-JC Motor CAD or 3D model resource for mechanical integration reference. ▶

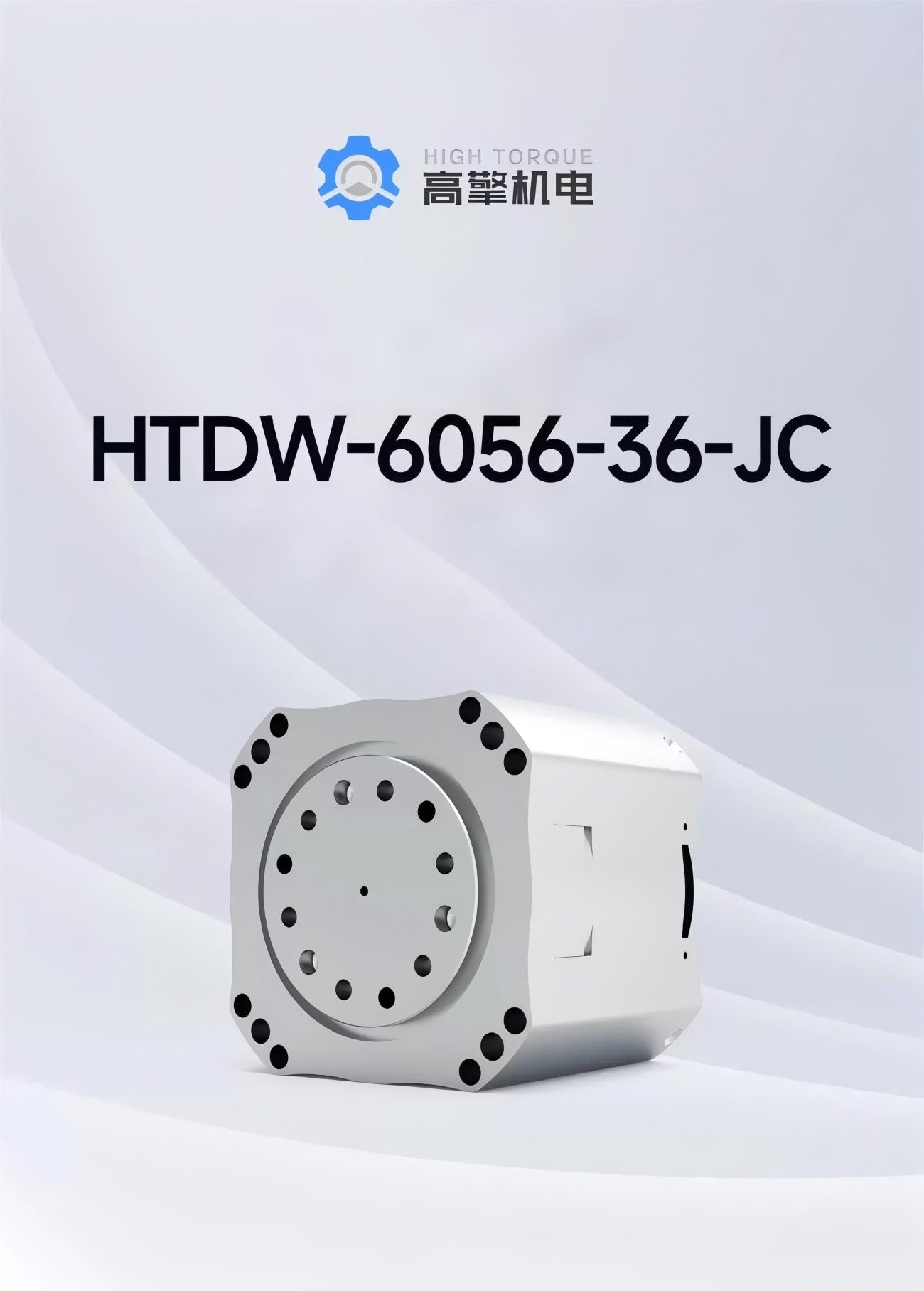

HIGH TORQUE HTDW-6056-36-NE-JC Motor | High Torque Robot Servo Motor for Robotics Development detail image 1

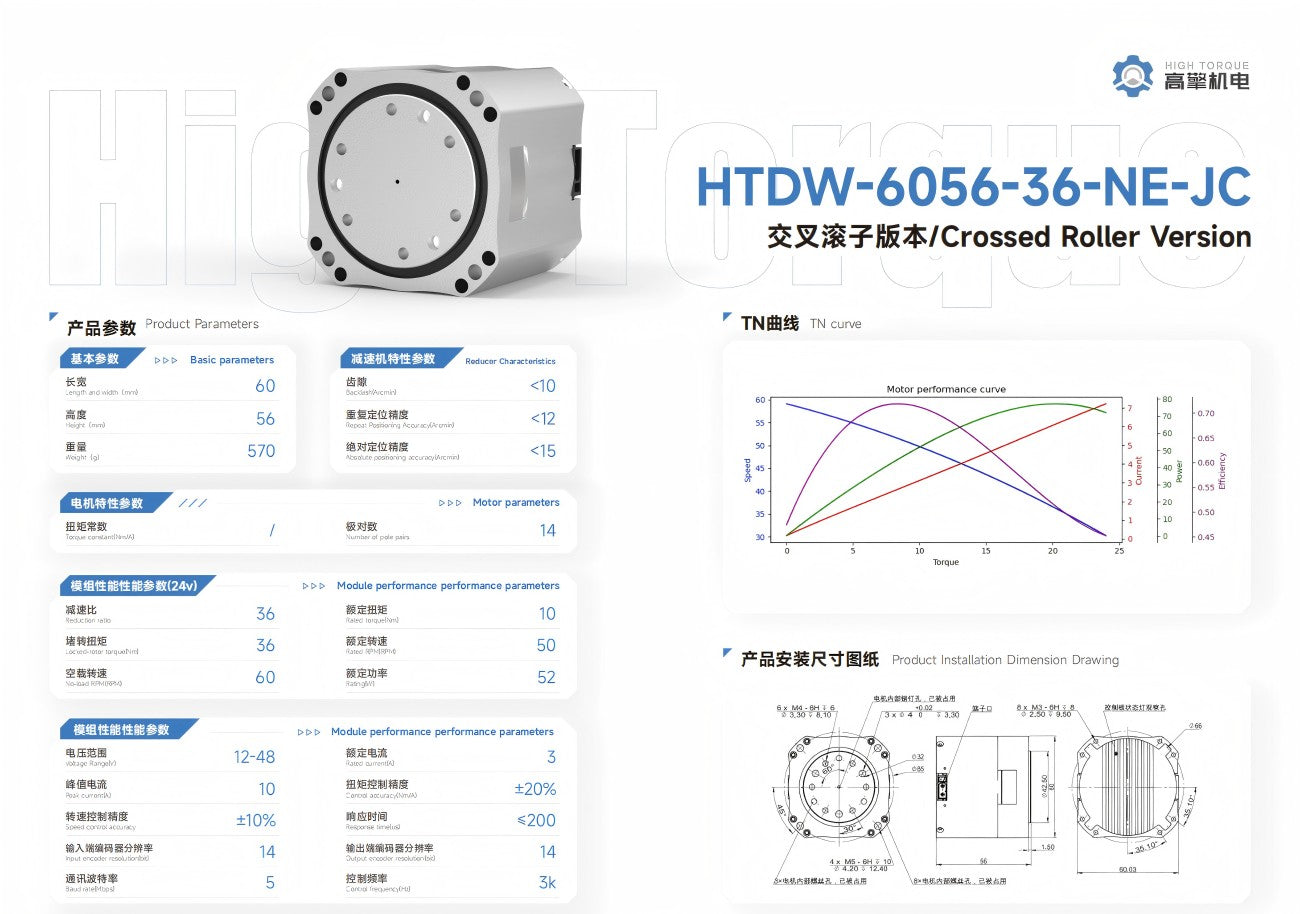

HIGH TORQUE HTDW-6056-36-NE-JC Motor | High Torque Robot Servo Motor for Robotics Development detail image 2
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Length and Width
60mm
Height
56mm
Weight
570g
Backlash
<10Arcmin
Repeat Positioning Accuracy
<12Arcmin
Absolute Positioning Accuracy
<15Arcmin
Torque Constant
/
Number of Pole Pairs
14
Reduction Ratio
36
Locked-rotor Torque
36Nm
No-load RPM
60RPM
Rated Torque
10Nm
Rated RPM
50RPM
Rating
52W
Voltage Range
12-48V
Peak Current
10A
Speed Control Accuracy
±10%
Input Encoder Resolution
14-bit
Baud Rate
5Mbps
Rated Current
3A
Control Accuracy
±20%
Response Time
≤200us
Output Encoder Resolution
14-bit
Control Frequency
3kHz
