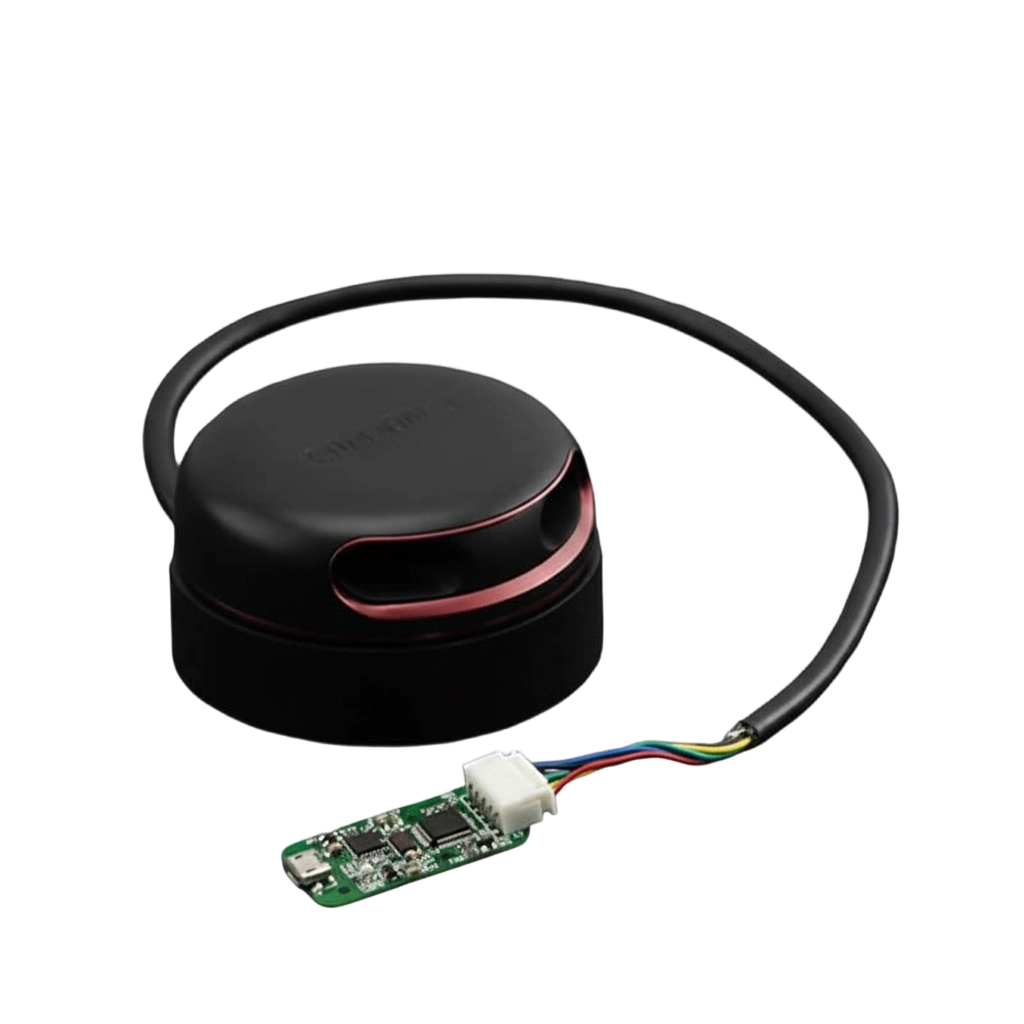

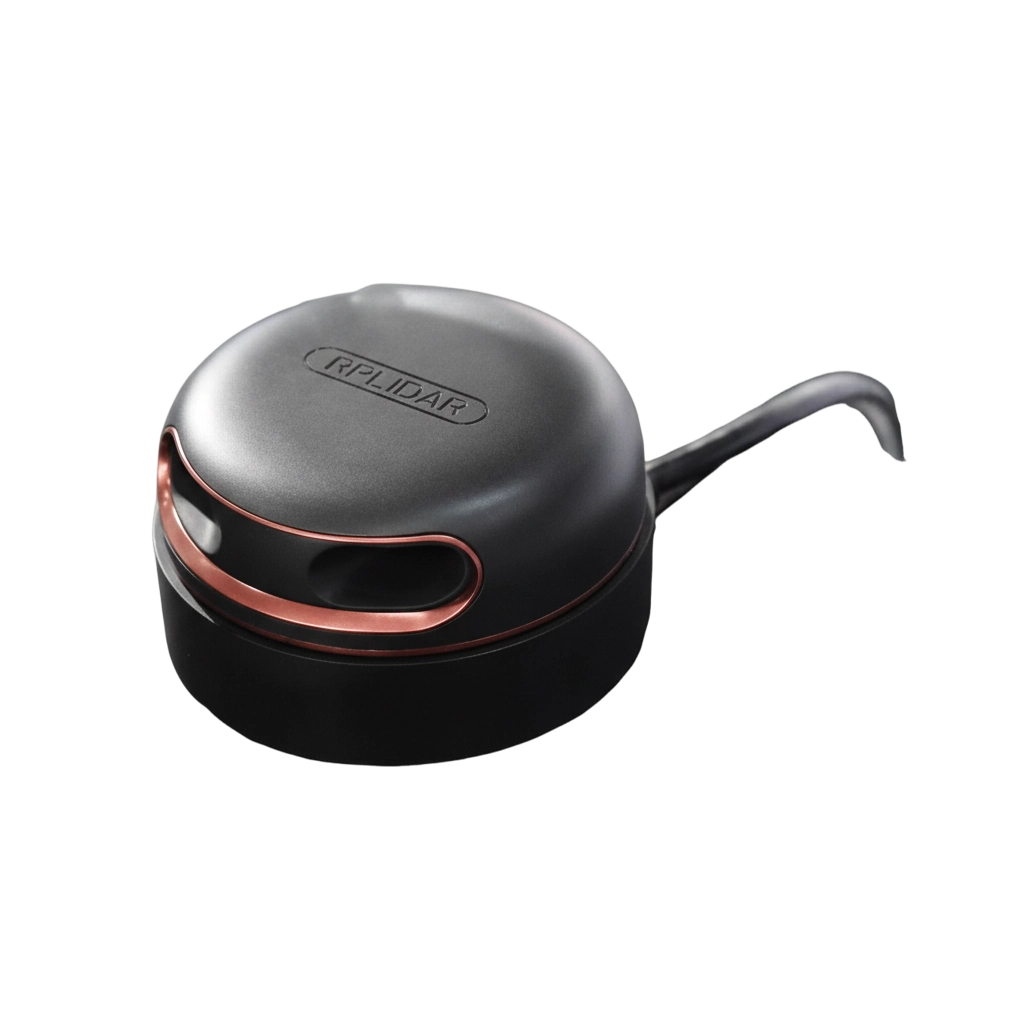

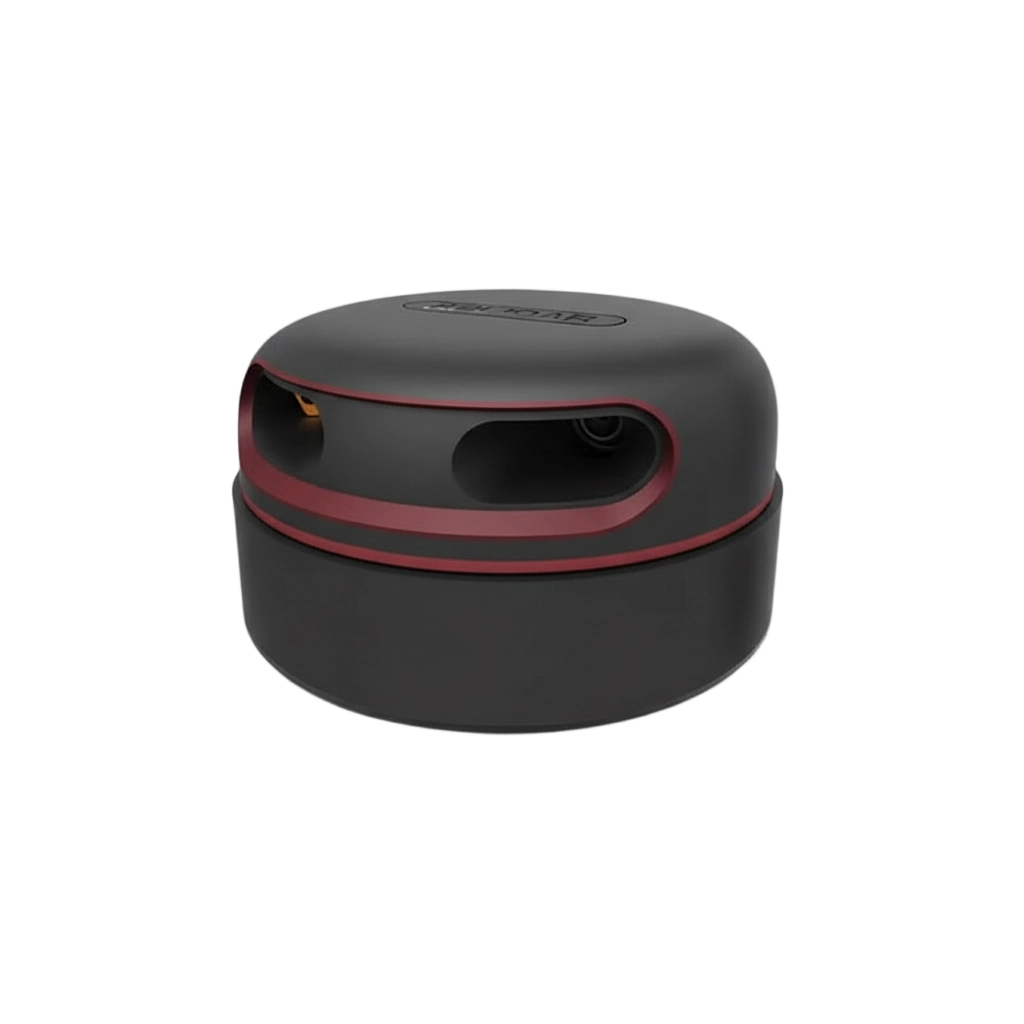

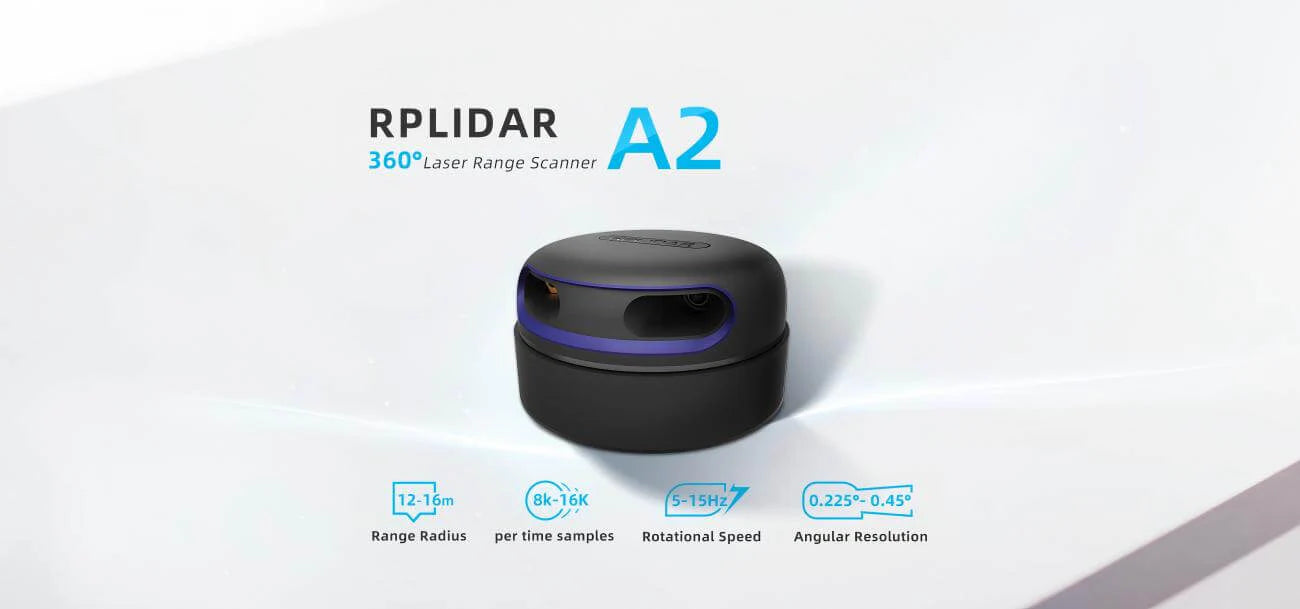

SLAMTEC RPLIDAR A2 360° LiDAR Sensor for Robotics & Mapping

Model: RPLIDAR A2
Product Type: High-Speed 2D 360° Laser Scanning LiDAR

$335

Care information

Avoid operating in high humidity, dusty environments, or under strong direct light. Do not touch the rotating parts during operation, and avoid direct eye exposure to the laser aperture.

Shipping

Free shipping. 12-Day delivery.

Technical Specifications

Parameter Value

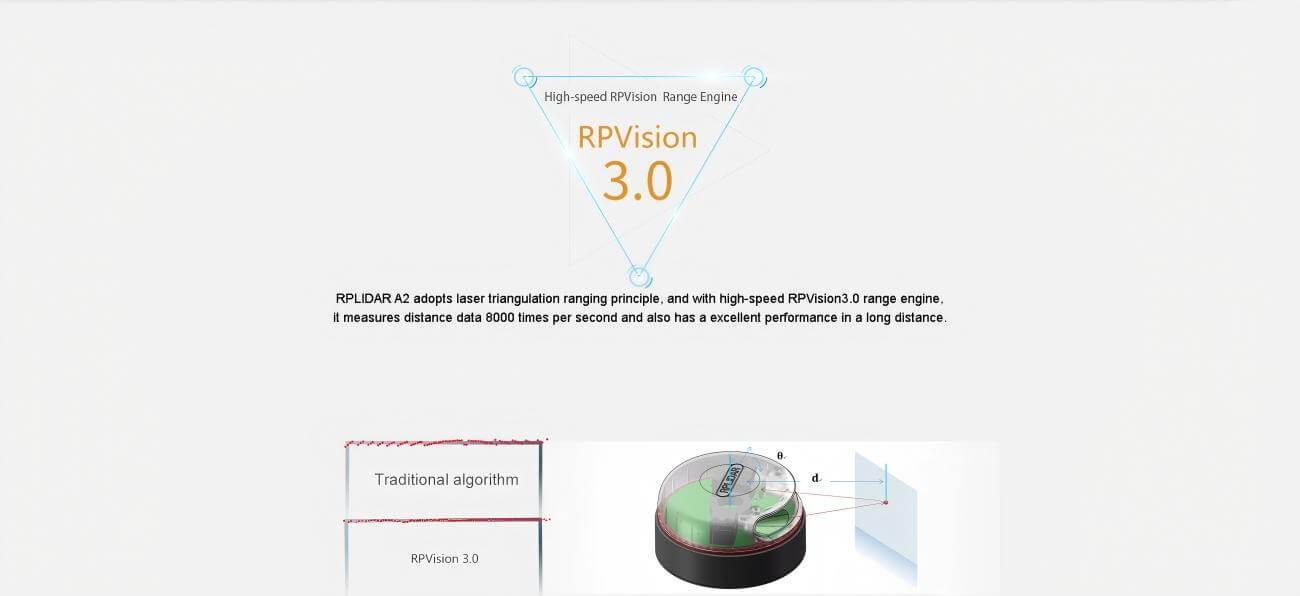

Measurement Principle Triangulation Ranging

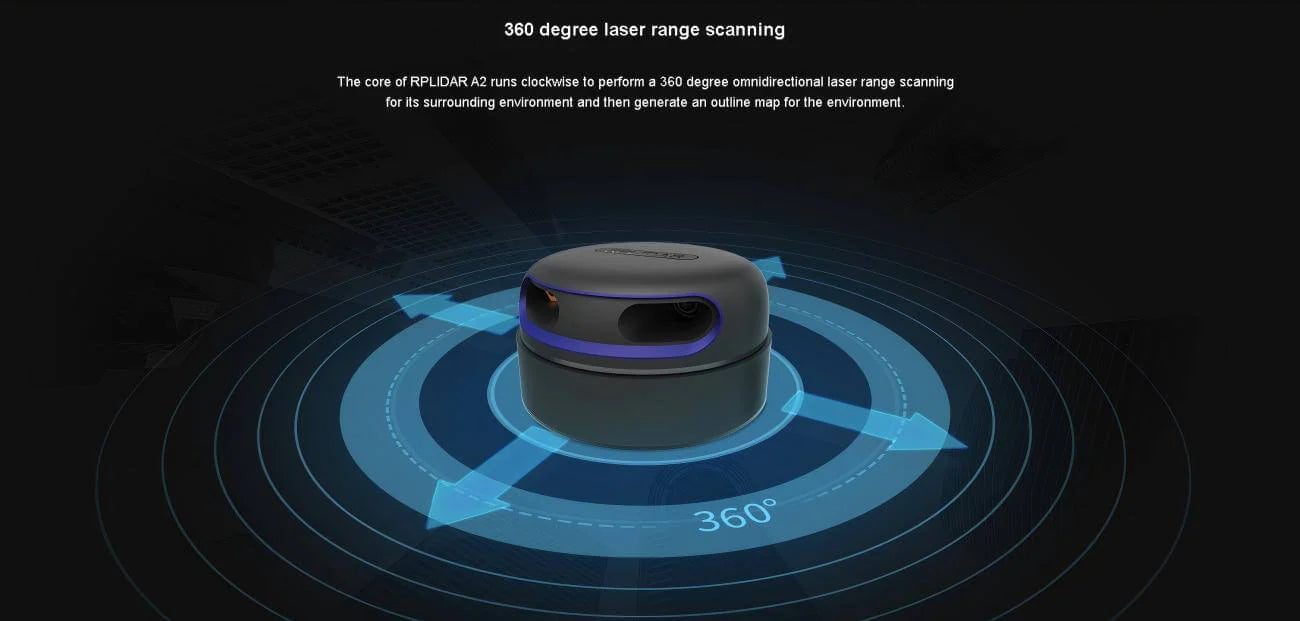

Scanning Angle 360° Continuous Rotation

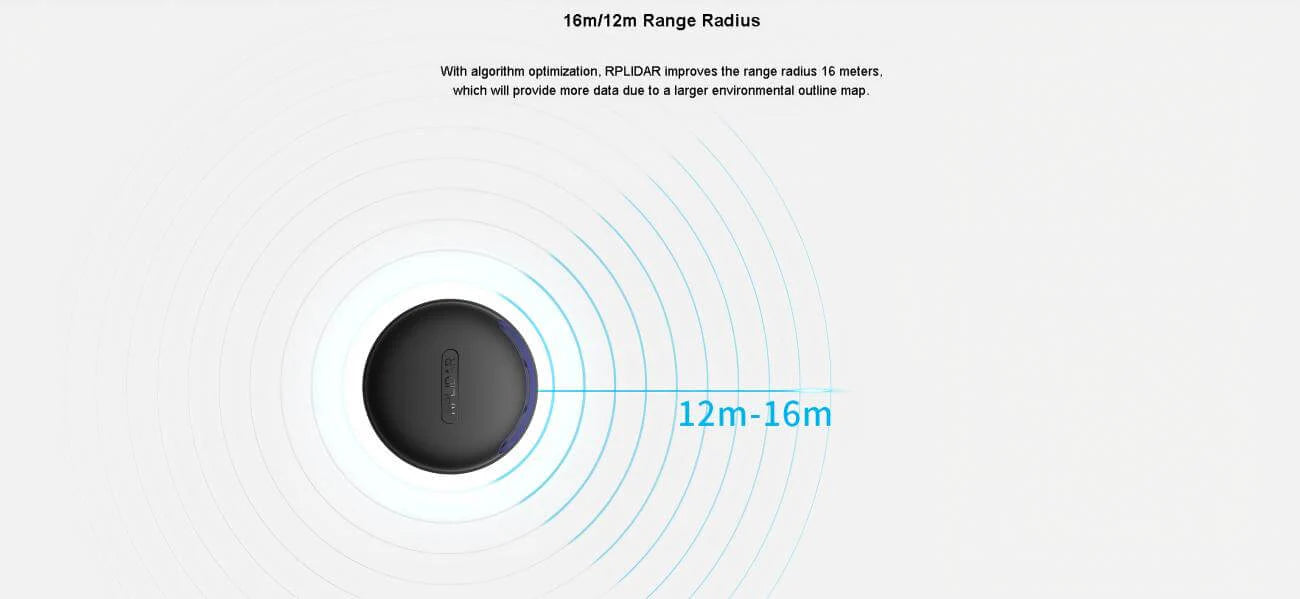

Distance Range (White Object) Up to 12 m
Distance Range (Black Object) Up to 10 m
Minimum Detection Distance 0.2 m
Angular Resolution 0.225°
Scan Rate 10 Hz Typical (Adjustable 5 – 15 Hz)
Sample Rate 16 kHz
Scan Field Flatness ±1.5°
Laser Wavelength 785 nm
Laser Output Power 10 mW
Laser Pulse Width 87 μs
Laser Safety Classification IEC 60825-1 Class 1
Communication Interface TTL UART
Baud Rate 256000 bps
SDK Compatibility Compatible with previous SDK protocols
Supply Voltage 4.9 – 5.2 V DC
Voltage Ripple ≤20 mV
Inrush Current 2500 mA
Startup Current 1500 mA
Operating Current 450 mA @ 5 V
Idle Current 200 mA @ 5 V
Operating Temperature Range 0 – 40 °C
Weight 190 g

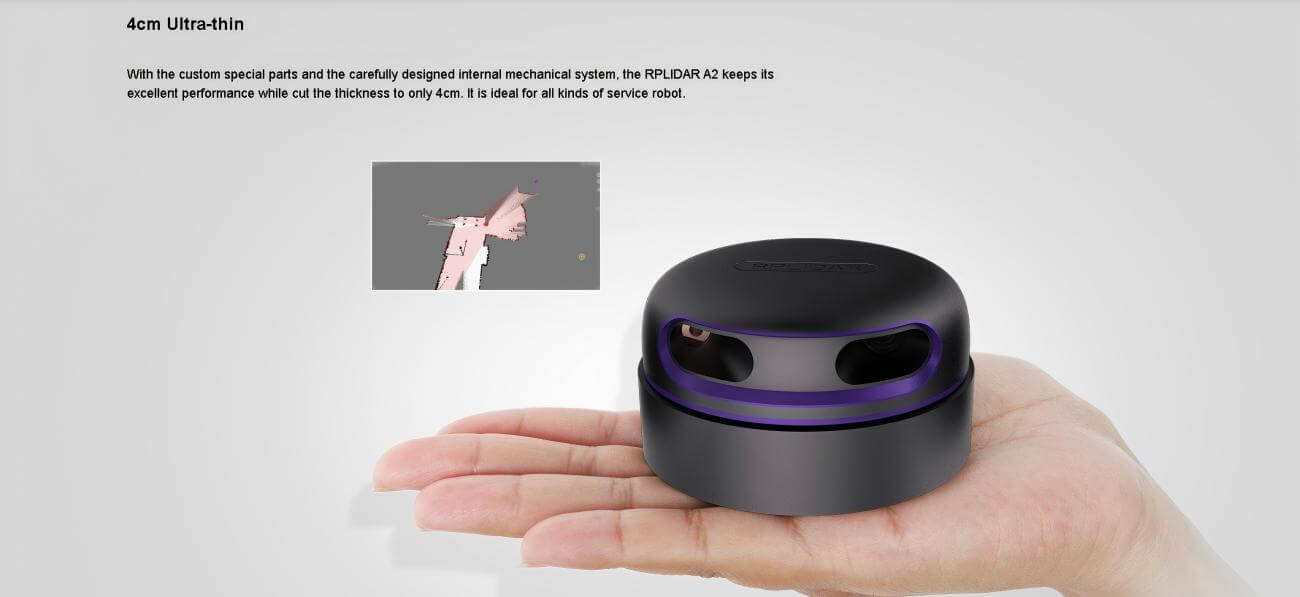

Dimensions (Diameter × Height) 70 mm × 41 mm

Technical Documentation

PDF
A2_series_Development_Kit_User_Manual.pdf
PDF
A2M12_Introduction_and_Datasheet.pdf

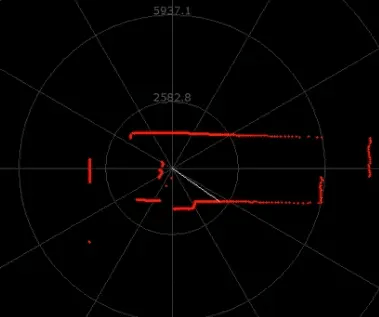

High Sample Rate for Faster and More Accurate Mapping

The LiDAR sample rate directly determines mapping speed and precision. Through optimized optical architecture and advanced signal processing algorithms, RPLIDAR A2 achieves a sample rate of up to 8000 samples per second — delivering leading performance within the economical LiDAR category.

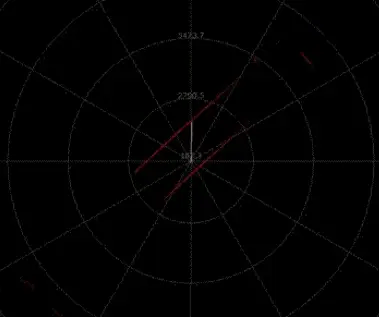

Performance comparison under various operating conditions.
