DJI

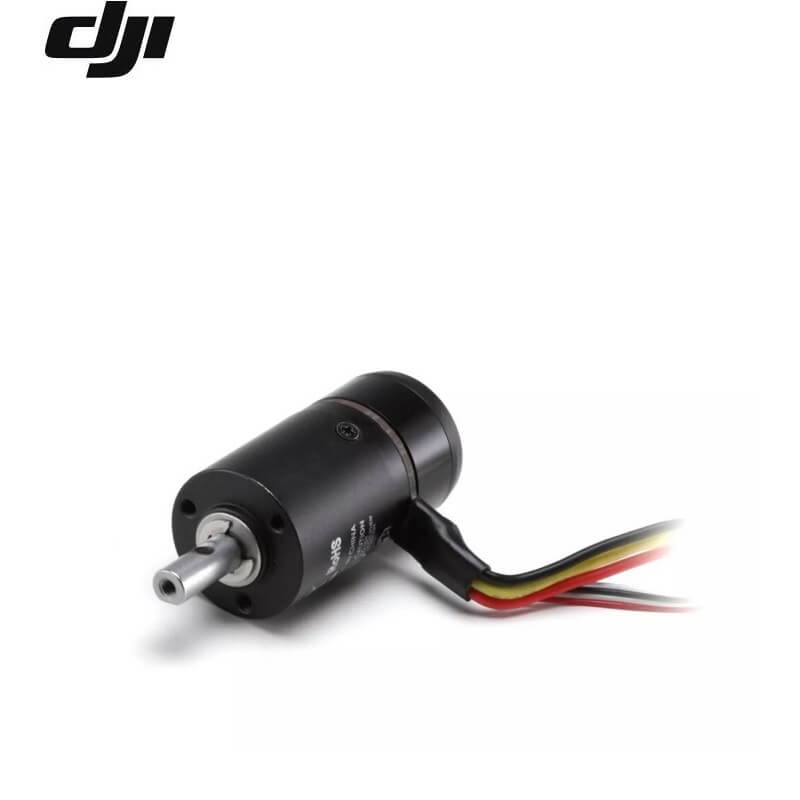

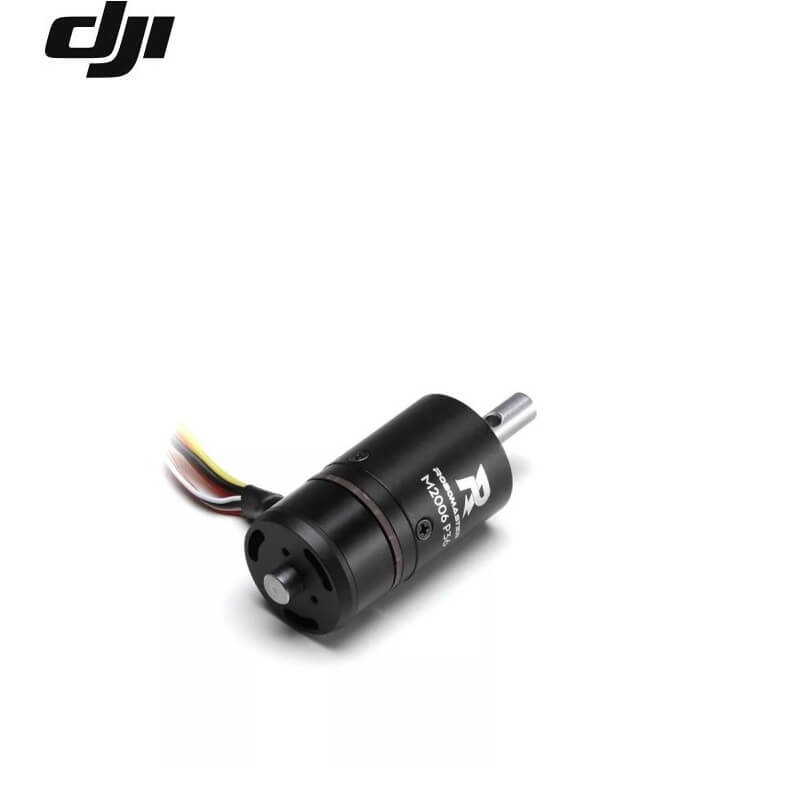

DJI RoboMaster M2006 P36 Brushless DC Gear Motor

  • ltem Name: DJI RoboMaster M2006 P36
  • Suitable for education labs, robotics teams, automation prototypes, and engineering builds.
  • Designed for integration into RoboMaster-style robot platforms and motion systems.
  • Supports compact robotics projects where reliable motor or actuator components are required.
$95
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

DJI RoboMaster M2006 P36 Brushless DC Gear Motor

The DJI RoboMaster M2006 P36 Brushless DC Gear Motor is a DJI RoboMaster robot servo motor for robotics development, robot hardware integration, education labs, and automation prototypes. It is intended for builders and engineering teams working with compact robotic motion systems.

Features

  • **RoboMaster platform component:** Suitable for DJI RoboMaster-style robot builds and hardware integration.
  • **Robotics development:** Supports education, research, prototyping, and automation projects.
  • **Engineering integration:** Useful for robot motor, actuator, or controller assemblies where source specifications match the target design.
  • **Developer support:** Compatible documentation and downloadable resources are attached when provided by the reference page.

Developer Support

DJI_RoboMaster_M2006_P36_Brushless_DC_Gear_Motor.stp: DJI RoboMaster M2006 P36 Brushless DC Gear Motor CAD or 3D model resource for mechanical integration reference. ▶ DJI_RoboMaster_C610_Brushless_Motor_Controller.stp: DJI RoboMaster M2006 P36 Brushless DC Gear Motor CAD or 3D model resource for mechanical integration reference. ▶ RM_M2006_P36-INSTALLATION_DRAWING.pdf: DJI RoboMaster M2006 P36 Brushless DC Gear Motor installation dimension drawing for mechanical design reference. ▶

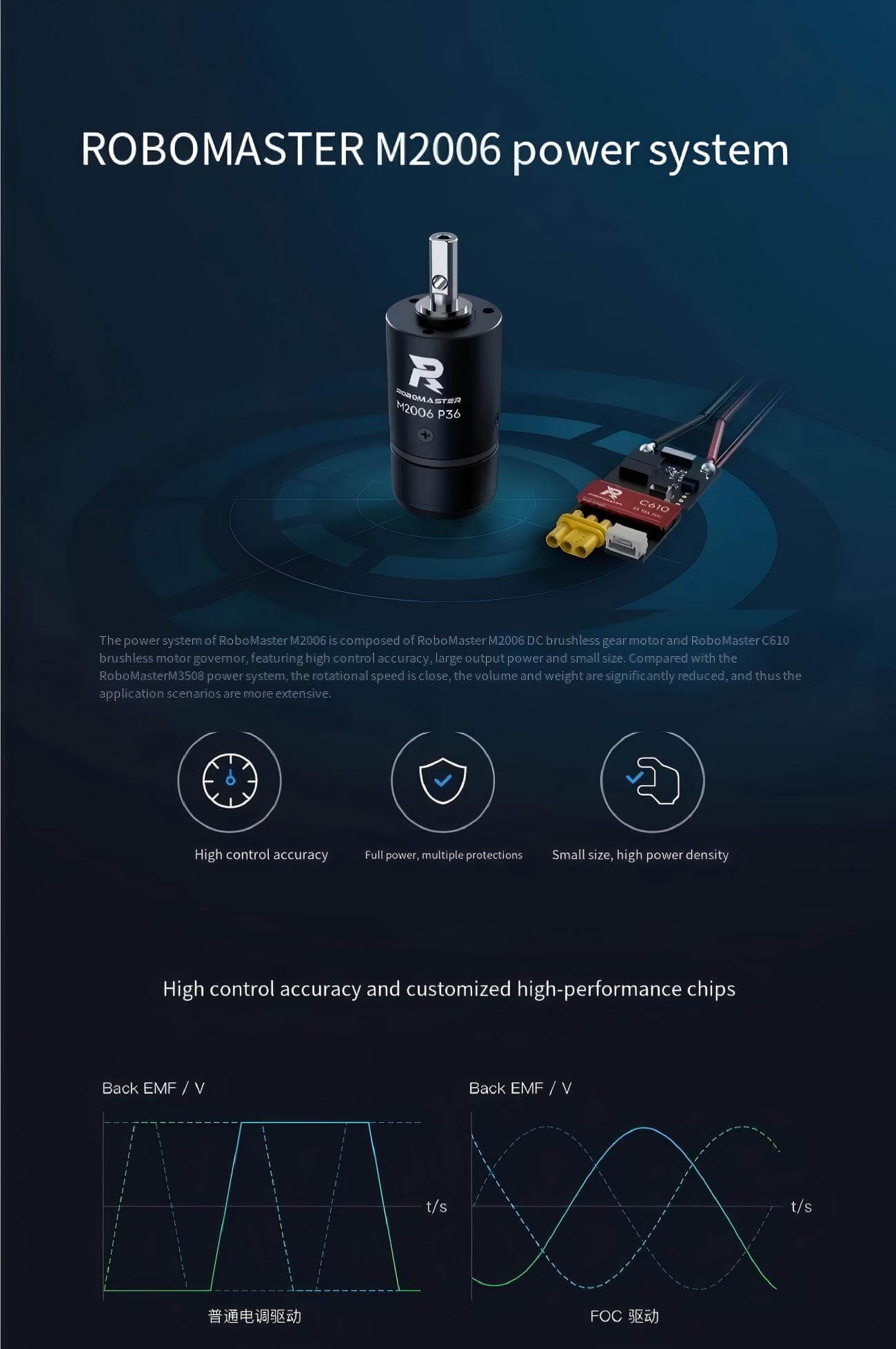

DJI RoboMaster M2006 P36 Brushless DC Gear Motor | Robot Servo Motor for Robotics Development detail image 1

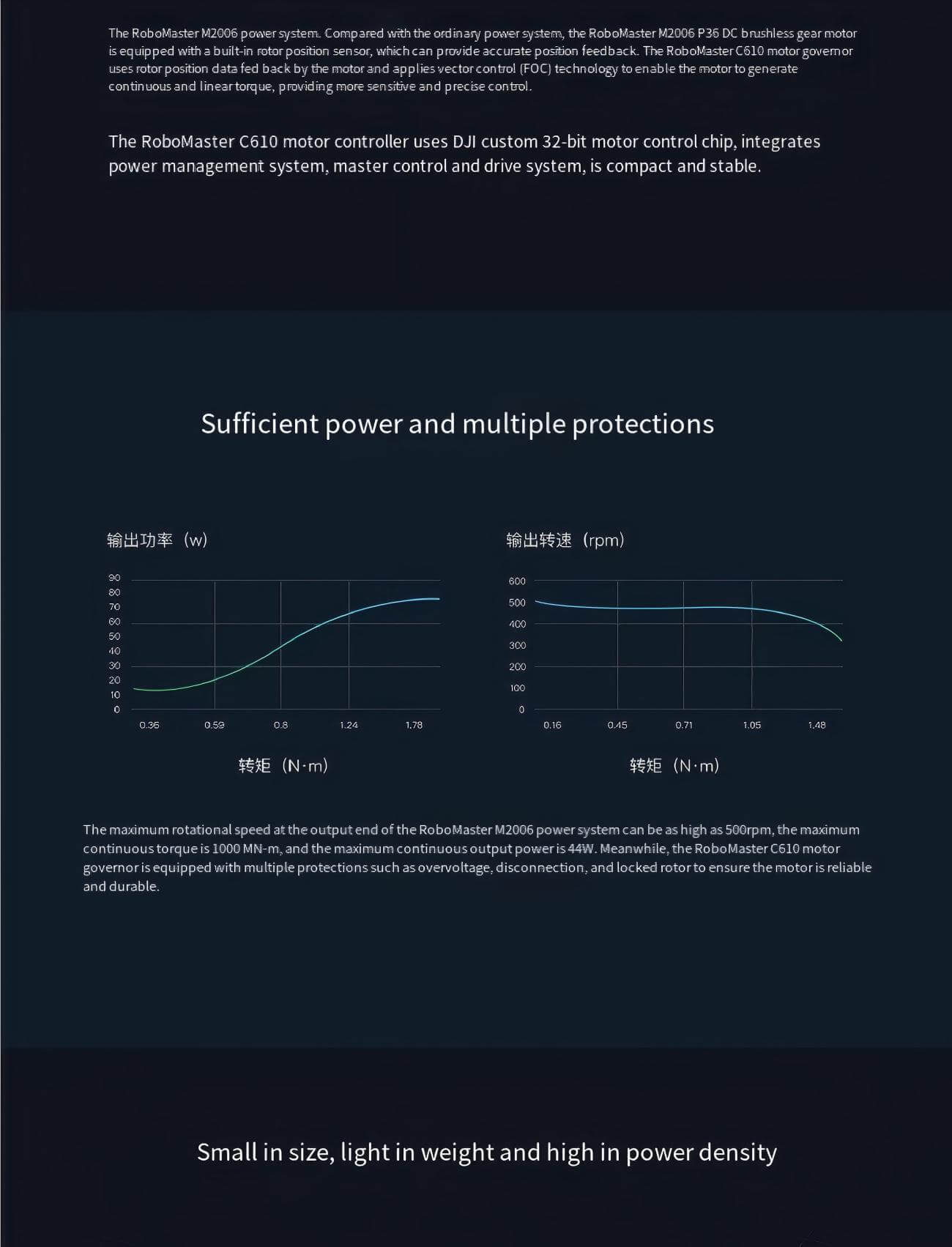

DJI RoboMaster M2006 P36 Brushless DC Gear Motor | Robot Servo Motor for Robotics Development detail image 2

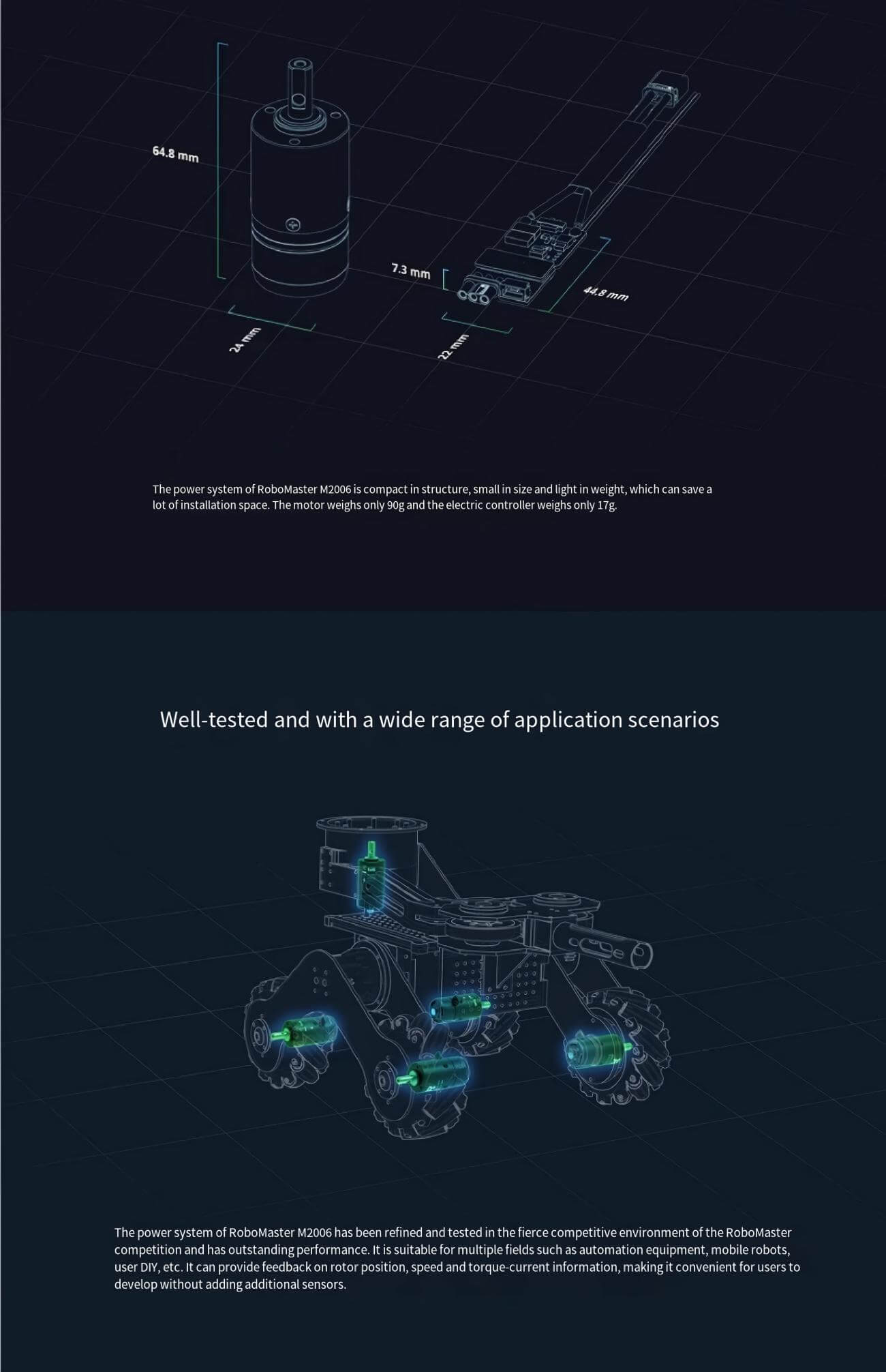

DJI RoboMaster M2006 P36 Brushless DC Gear Motor | Robot Servo Motor for Robotics Development detail image 3

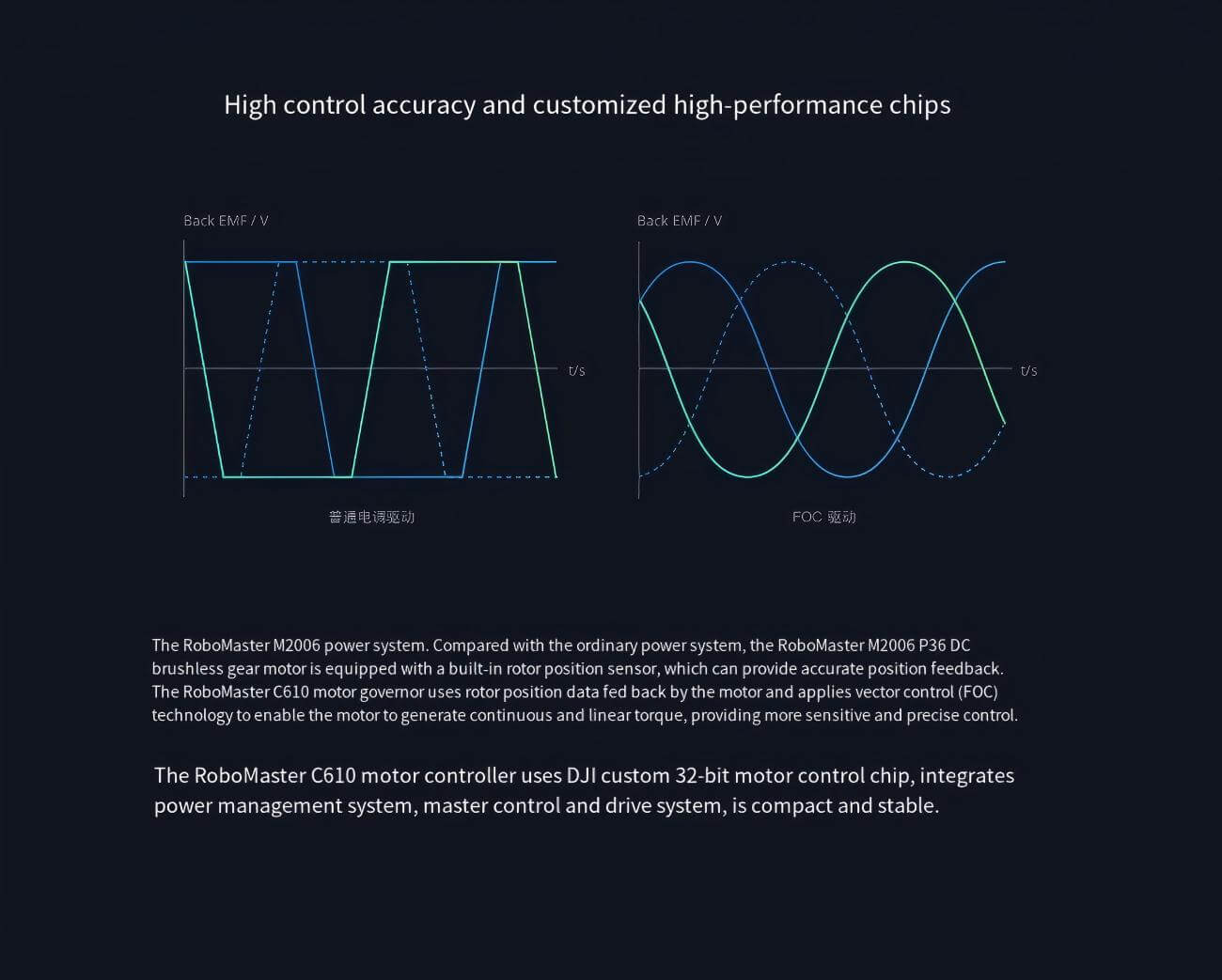

DJI RoboMaster M2006 P36 Brushless DC Gear Motor | Robot Servo Motor for Robotics Development detail image 4
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
ltem Name
DJI RoboMaster M2006 P36
Using C610 Speed Controlled at rated voltage
No-Load Speed
500rpm
No-Load Current
0.6A
Rated Rotational Speed
416rpm
Rated Torque (max continuous torque)
1N·m
Rated Current
3A
Max Efficiency
66%
Using Z650 ESC at the rated voltage
Rotational Speed (without payload)
777rpm
Current (without payload)
0.8A
Rated Rotational Speed
555rpm
Rated Torque (max continuous torque)
0.8N·m
Rated Current (max continuous line current)
3.7A
Max Efficiency
66%
Stall Torque
7N·m
Stall Current
27.3A
Characteristic Parameters
Rated Voltage
24V
Torque Constant
0.18N·m/A
Speed Constant
32.96rpm/V
Speed/Torque Gradient
110rpm/N·m
Mechanical Time Constant
52.78ms
Phase Resistance
461mΩ
Phase Inductance
64.22μH
Operating Temperature Range
0-55° C
Number of Pole Pairs
7
Weight
90g
Reduction Ratio
36:1
