LinkerBot | SKU:

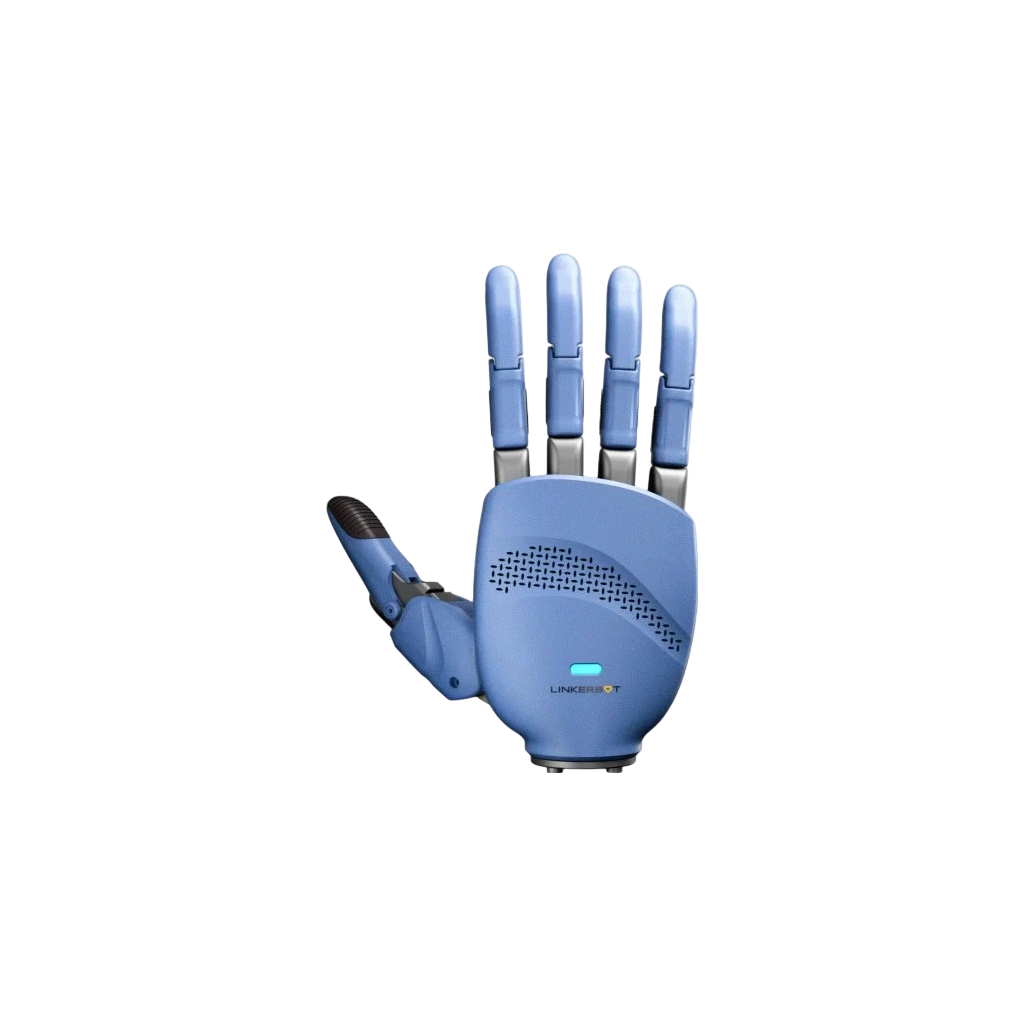

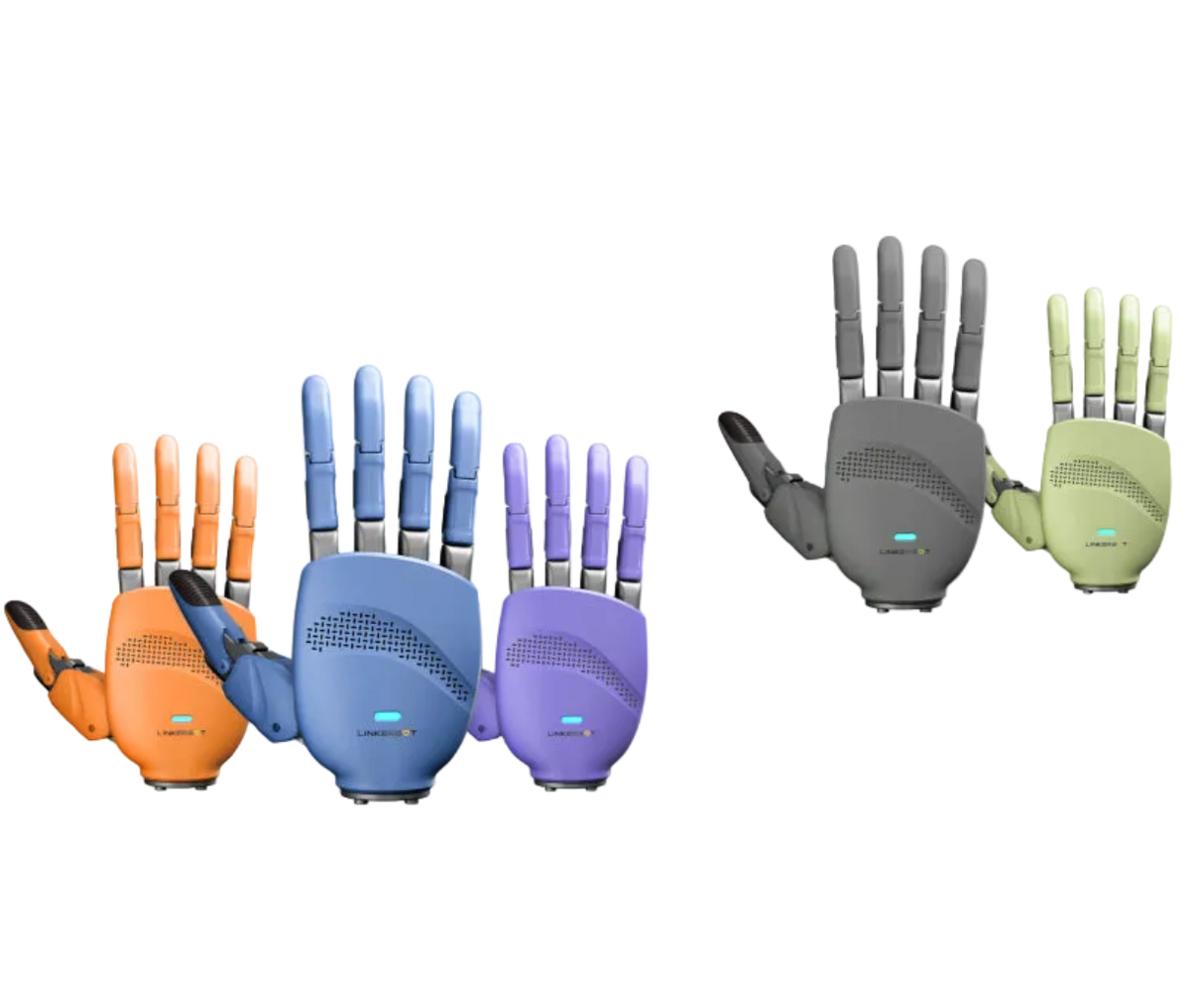

LinkerBot O6 Dexterous Robot Hand for Robotics Development
Regular price
$1,499
Unit price
LinkerBot O6 Dexterous Robot Hand for Robotics Development - Linker Hand O6(Left) is backordered and will ship as soon as it is back in stock.
Care information
Care information
Store in a dry, dust-free environment and avoid impact or excessive vibration during handling. Do not disassemble the motor or modify internal components, as this may affect performance and void warranty. Ensure proper voltage supply and secure mounting before operation.
Shipping
Shipping
Free shipping. 12-Day delivery.
Development Support
LinkerHand Dexterous Hand ROS2 SDK
The official software development kit for LinkerHand dexterous robotic hands (such as O6, L6, O7, L20).
Technical Specifications
| Parameter | Value |
|---|---|
| Degrees of Freedom (DoF) | 6 |
| Number of Joints | 11 (6 Active + 5 Passive) |
| Transmission Mode | Worm Gear Transmission |
| Control Interface | CAN / RS485 |
| Weight | 370 g |

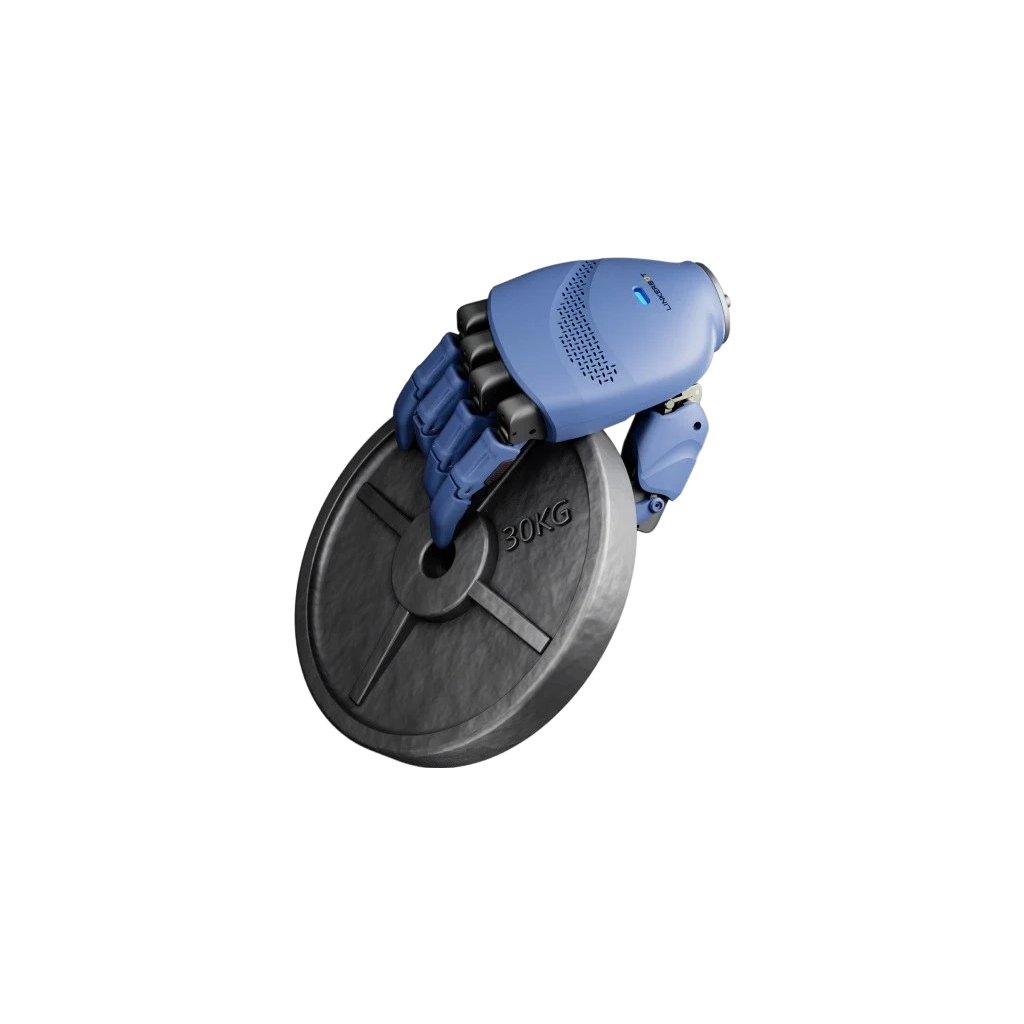

| Maximum Load | 30 kg |
| Operating Voltage | DC 24 V ±10% |
| Repeat Positioning Accuracy | ±0.2 mm |
| Tactile Sensor | Optional |
| Maximum Thumb Tip Force | 28 N |
| Maximum Four-Finger Tip Force | 33 N |
| Maximum Five-Finger Grip Force | 130 N |
