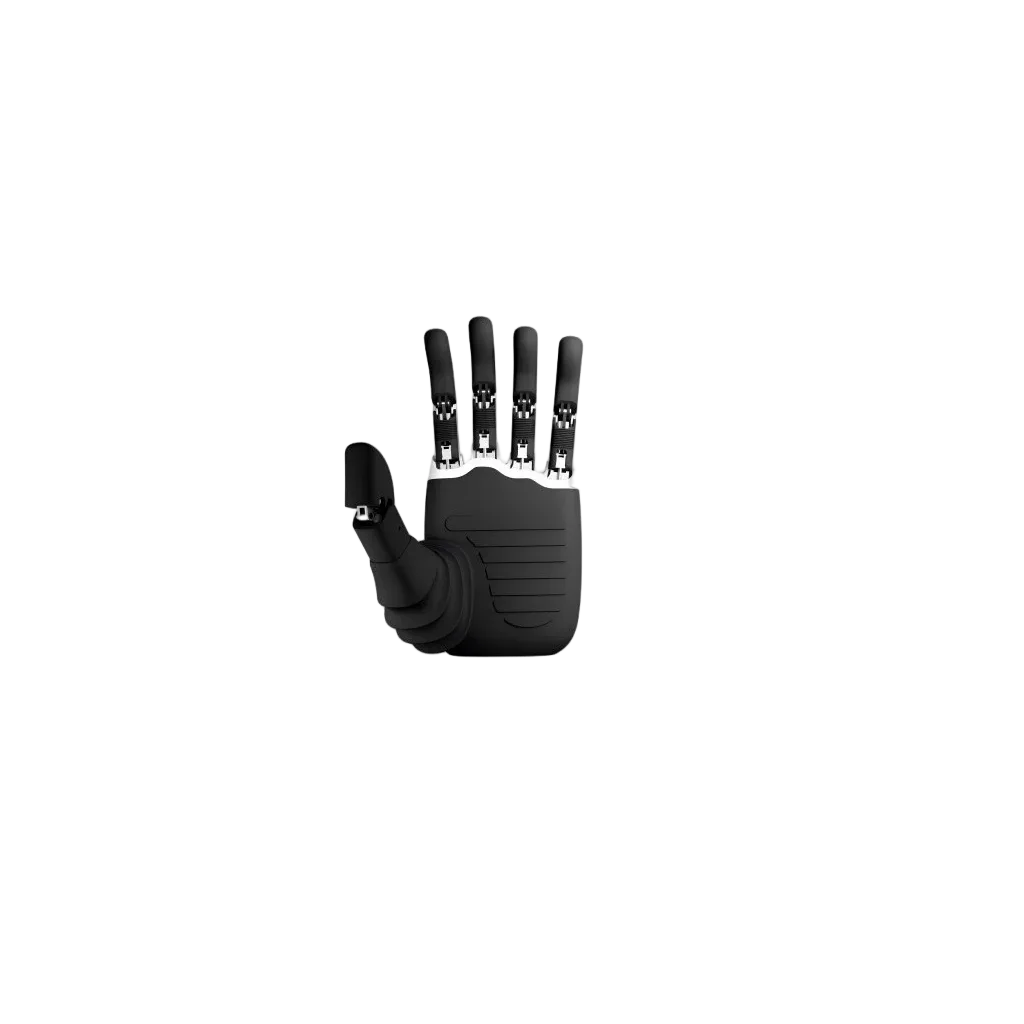

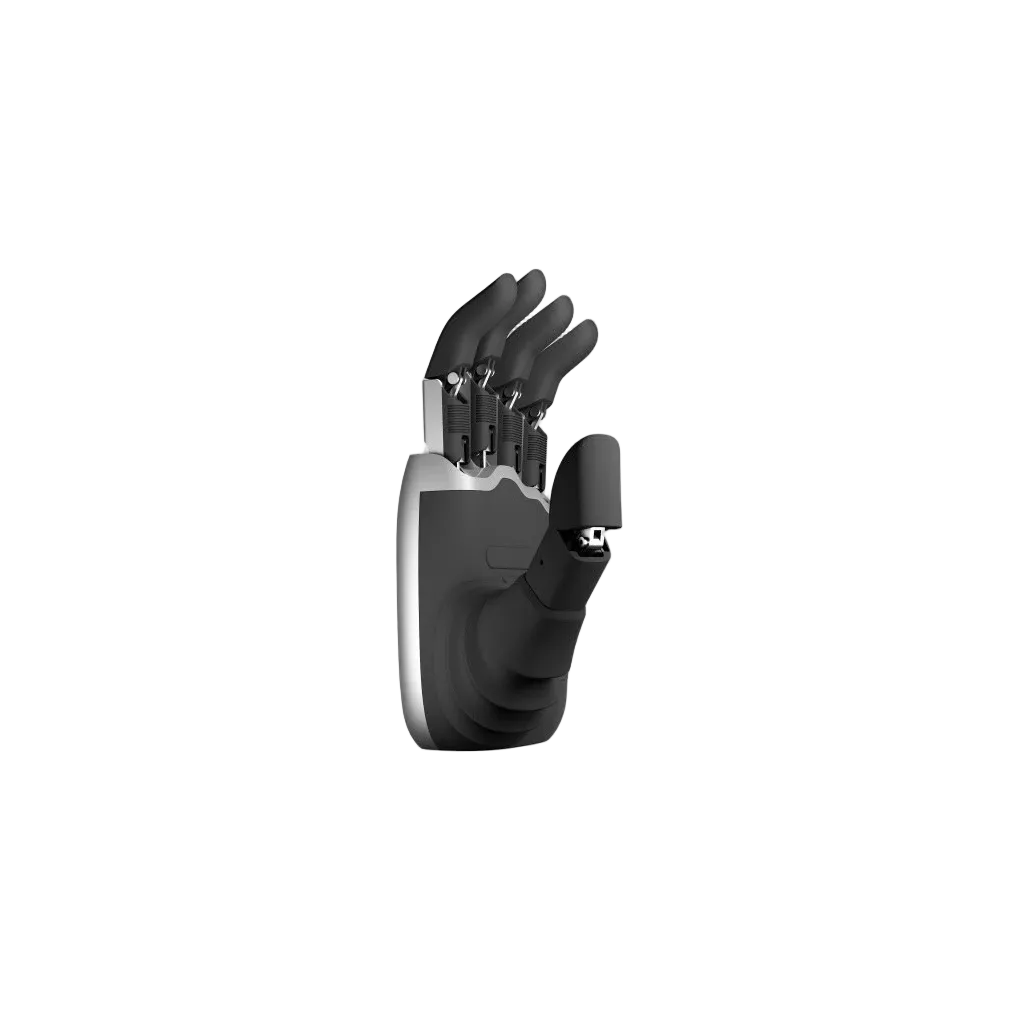

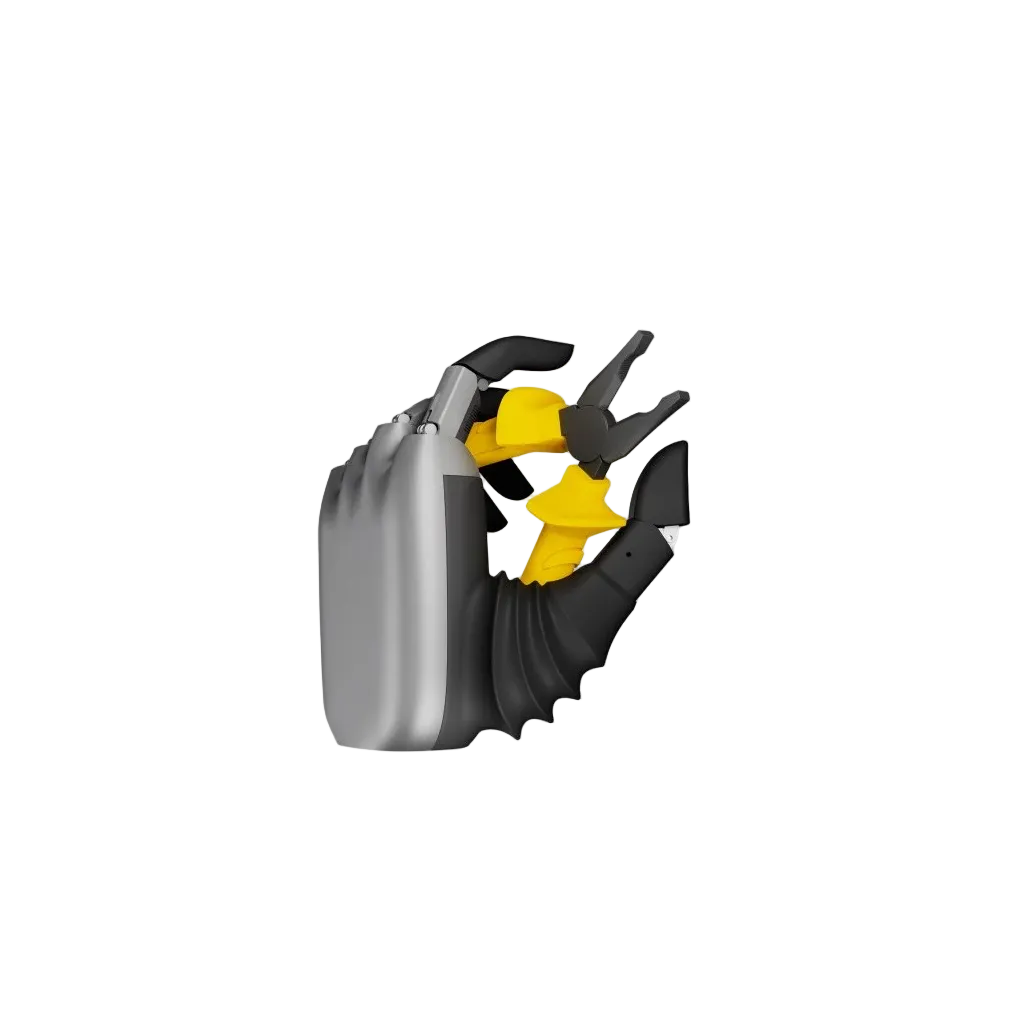

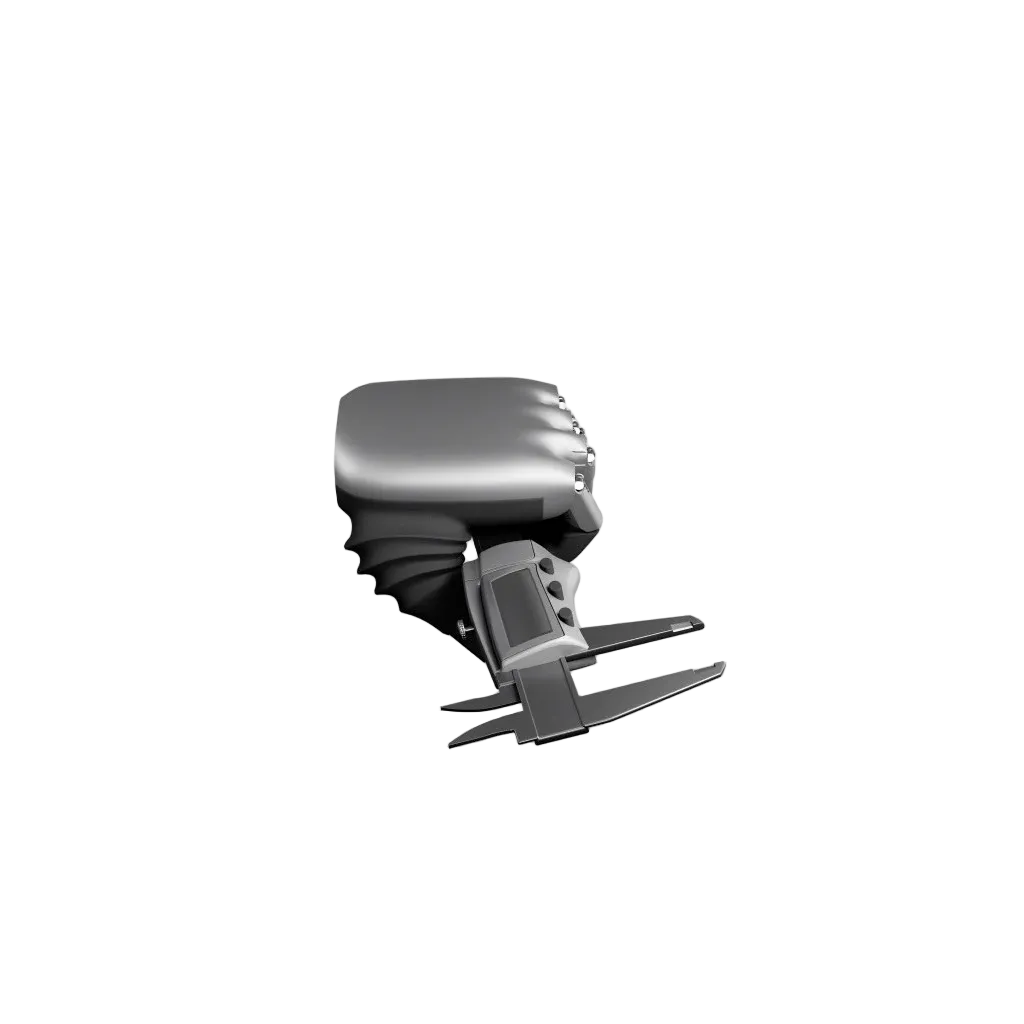

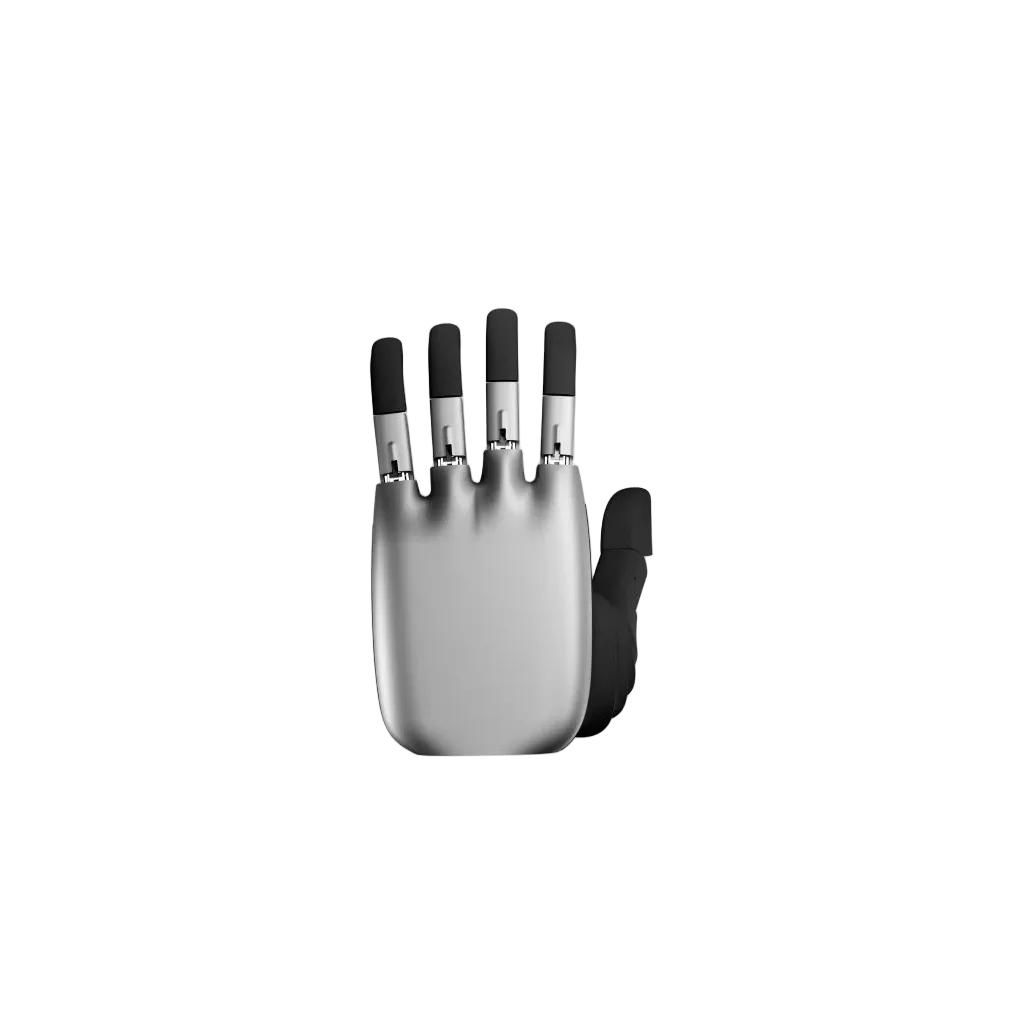

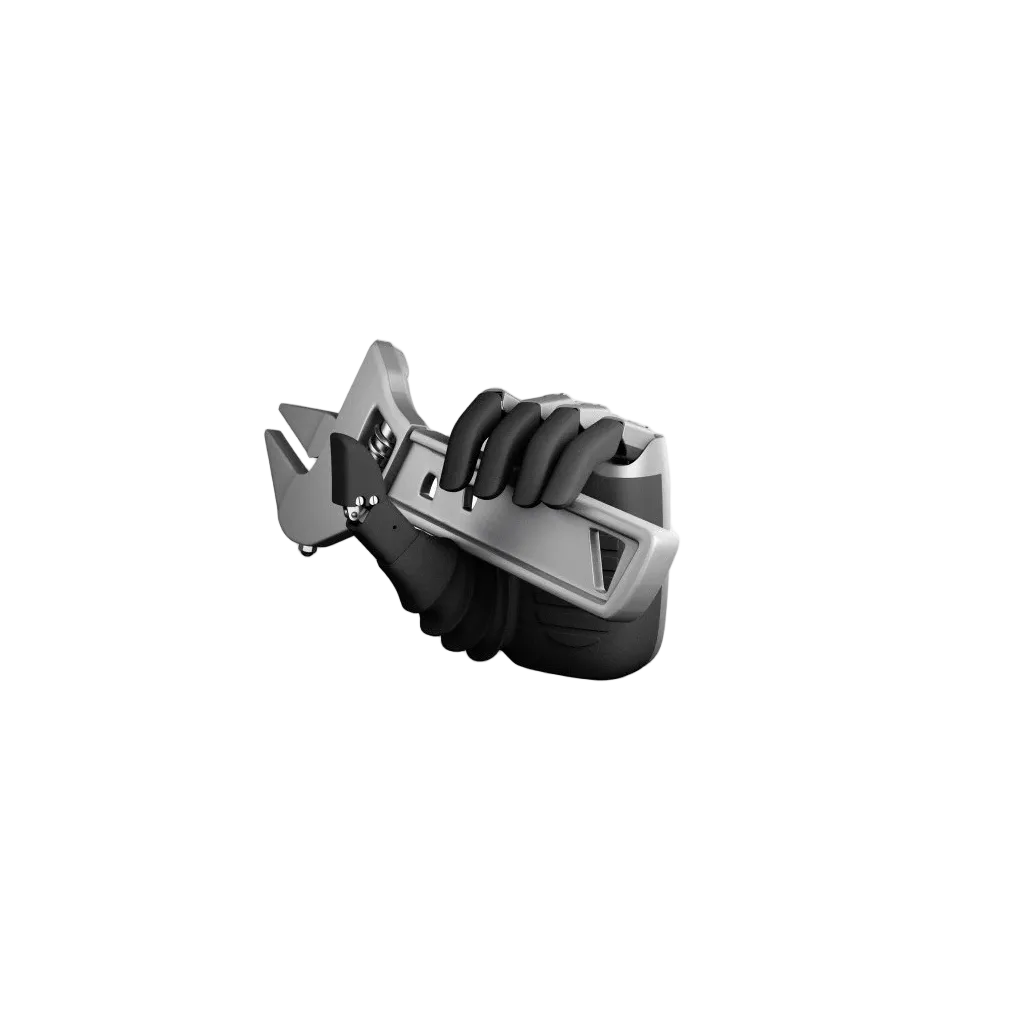

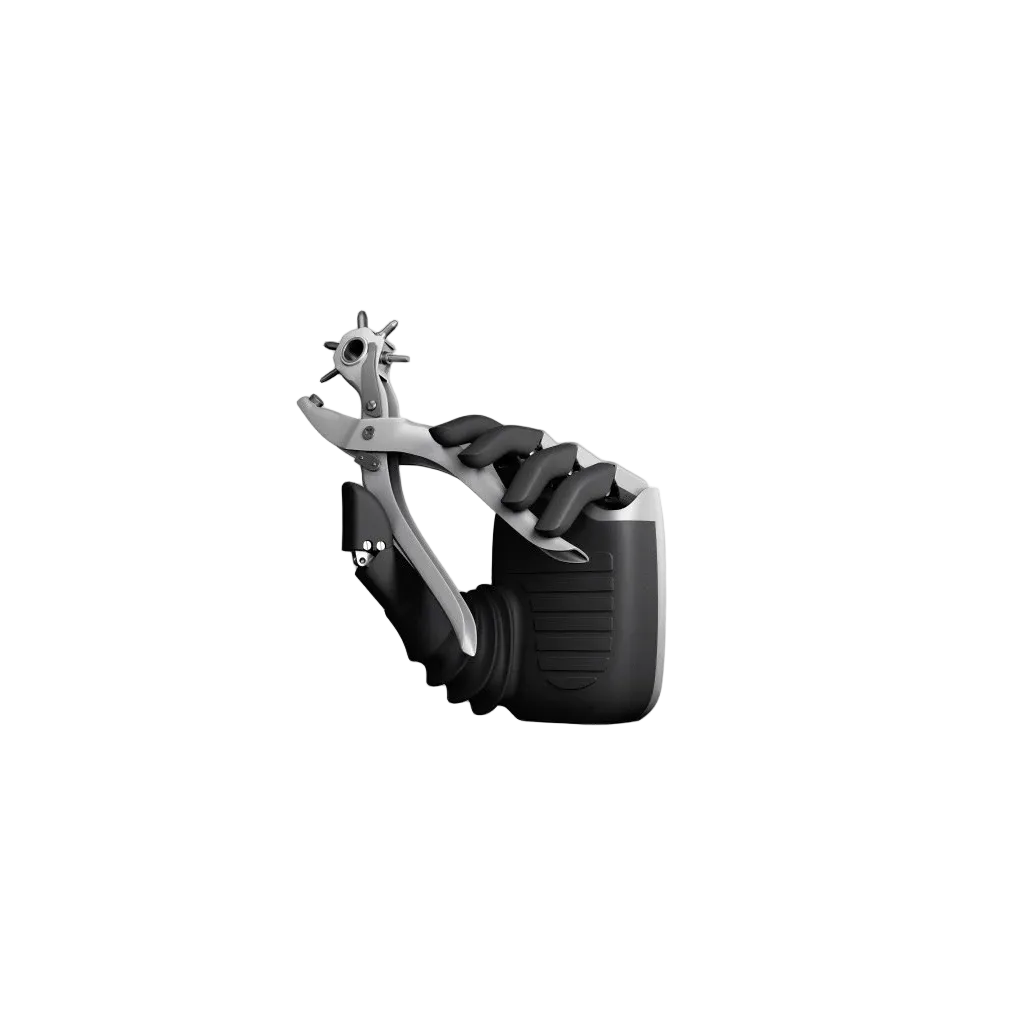

LinkerBot L6 Dexterous Robot Hand

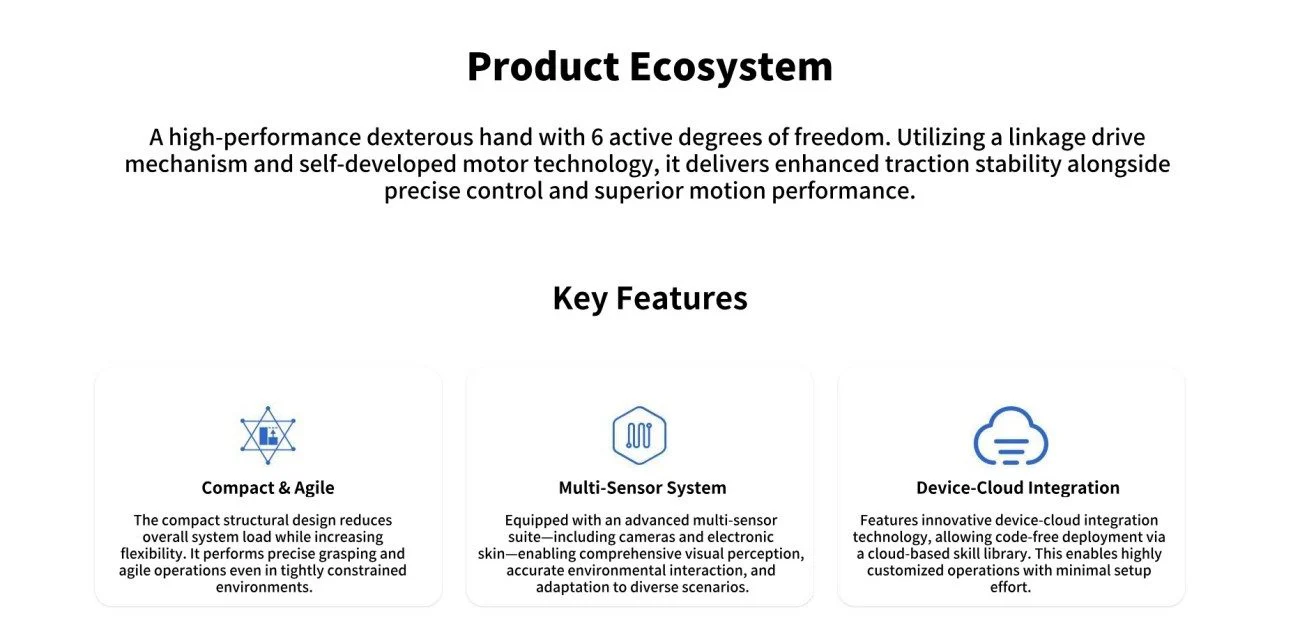

A high-performance dexterous hand with 6 active degrees of freeedom. Utilizing a linkage drive mechanism and self-developed motor technology, it delivers enhanced traction stability alongside precise control and superior motion performance.
LinkerBot L6 Dexterous Robot Hand - Linker Hand L6 (Left) is backordered and will ship as soon as it is back in stock.
Care information
Care information
Store in a dry, dust-free environment and avoid impact or excessive vibration during handling. Do not disassemble the motor or modify internal components, as this may affect performance and void warranty. Ensure proper voltage supply and secure mounting before operation.
Shipping
Shipping
Free shipping. 12-Day delivery.
Development Support
LinkerHand Dexterous Hand ROS2 SDK
The official software development kit for LinkerHand dexterous robotic hands (such as O6, L6, O7, L20).
Technical Specifications
| Parameter | Value |
|---|---|
| Degrees of Freedom (DoF) | 6 |
| Number of Joints | 11 (6 Active + 5 Passive) |
| Transmission Mode | Linkage Transmission |
| Control Interface | CAN |
| Weight | 623.5 g |
| Maximum Load | 28 kg |
| Operating Voltage | DC 24 V ±10% |
| Static Current | 0.2 A |
| Average Current (No-Load Movement) | 0.75 A |
| Maximum Current | 1.4 A |
| Repeat Positioning Accuracy | ±0.2 mm |
| Maximum Thumb Tip Force | 10 N |
| Maximum Four-Finger Tip Force | 8 N |
| Maximum Five-Finger Grasping Force | 50 N |
