CHOHO | SKU:

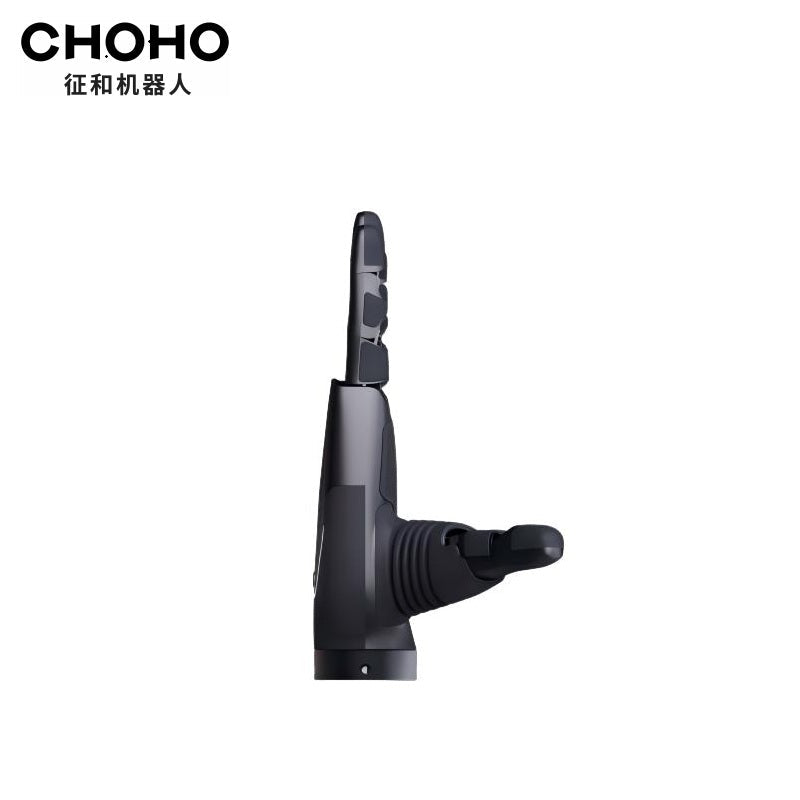

CHOHO Hand
- CHOHO Hand for dexterous manipulation, humanoid robotics, and embodied AI research.
- Suitable for robotics developers, research labs, education teams, and teleoperation projects.
- Designed for robotic hand integration in grasping, interaction, and automation workflows.
- Useful for prototyping robot manipulation, hand control, and human robot interaction applications.
Regular price
$18,800
Unit price
CHOHO Hand - CHOHO Hand(Tactile) / Left is backordered and will ship as soon as it is back in stock.
Warranty
Warranty
- 1-year limited warranty for the main unit.
- 6-month limited warranty for the battery.
- For service support, please contact customer care with proof of purchase.
Shipping
Shipping
• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.
Developer Support
▤ PARAMETER ⌃
Product Name
CHOHOHand

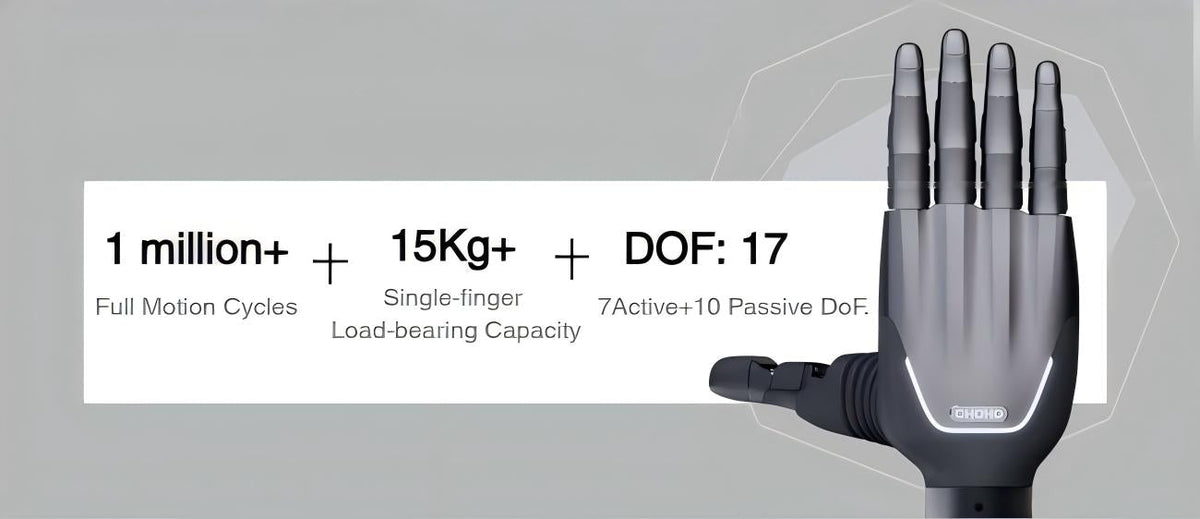

Degrees of Freedom
17 DOF (7 active + 10 passive)
Single Finger DOF
Thumb: 5 DOF, Other fingers: 3 DOF each
Max Unfolded Dimension
H:213.6mm, W:171.5mm, T:50mm
Total Weight
715g
Single Finger Max Load
15Kg+
Fingertip Force
30N per finger
Opening/Closing Speed
180°/s
Repeat Positioning Accuracy
±0.1mm
Service Life
1,000,000+ cycles
Operating Temperature
-20°C ~ 60°C (wider range with different housing materials)
Input Voltage
DC24-48V
Communication Interface
EtherCAT / CAN
Fingertip Sensor (Optional)
Range: Normal Fz:0-25N / Tangential Fxy:±10N; Min. resolution: 0.1N
Micro Chain Pitch
1.905mm
Roller Diameter
1.20mm
Unit Mass
<20g/m
Min Tensile Strength
350N
Max Working Load
<120N
Expected Cycle Life
1,000,000+ cycles
Expected Service Hours
12,000 - 15,000 hours
