PACECAT

PACECAT LSS Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Model: LSS-10A-C30E44
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for environmental sensing workflows that require reliable ranging and spatial awareness.
  • Useful for developers building localization, obstacle detection, navigation, and robotics perception applications.
$599
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

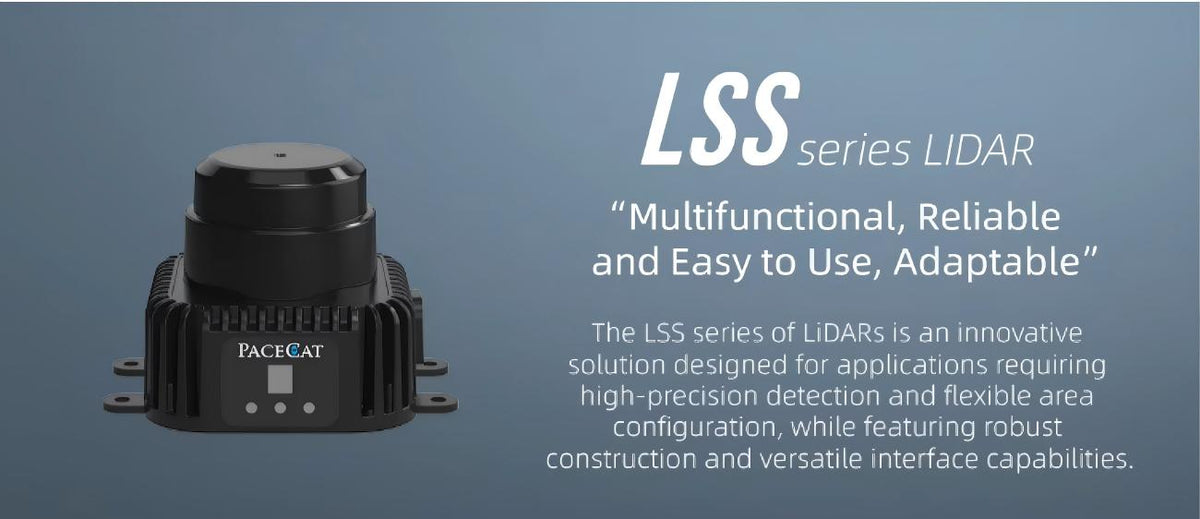

PACECAT LSS Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

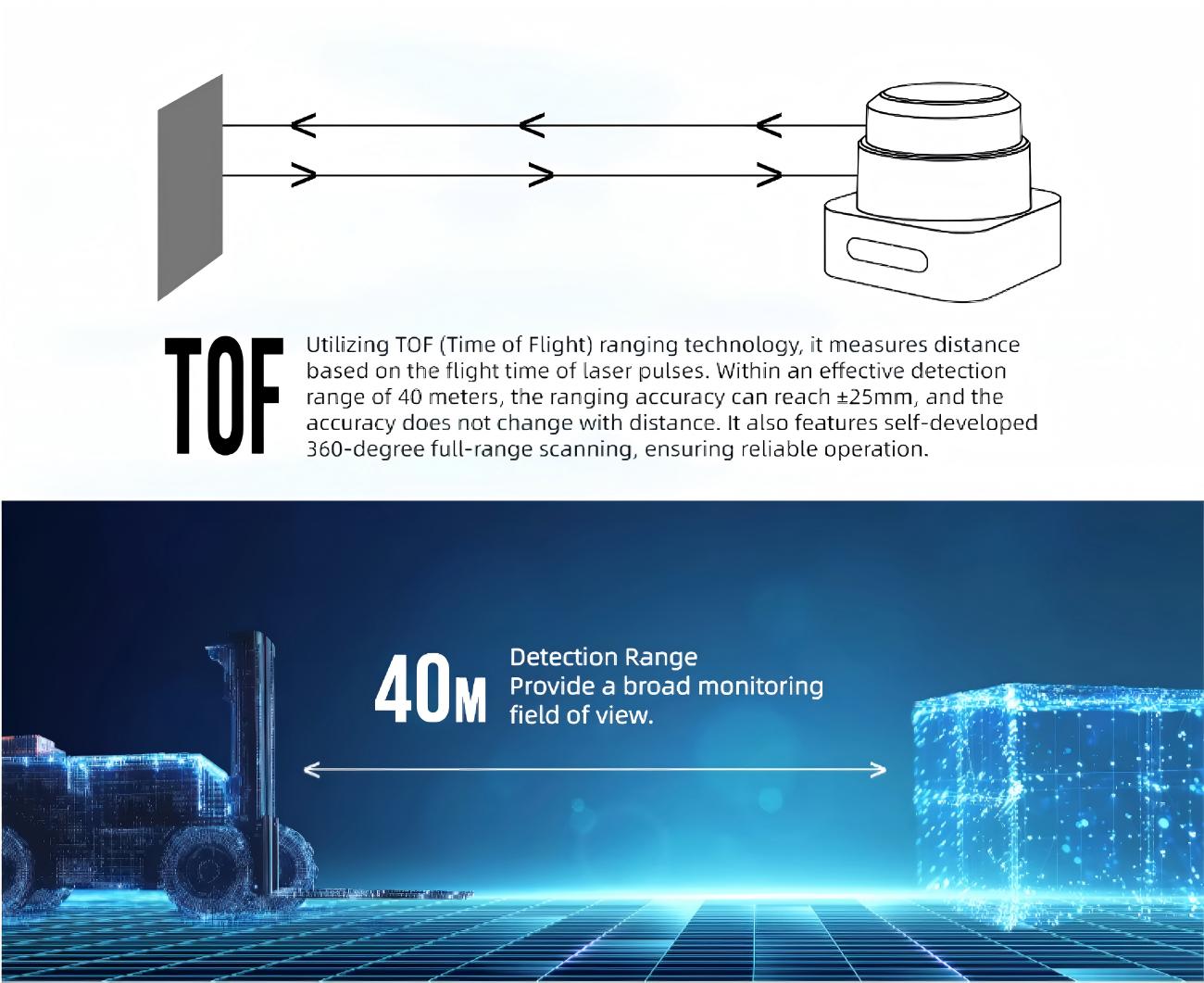

PACECAT LSS Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

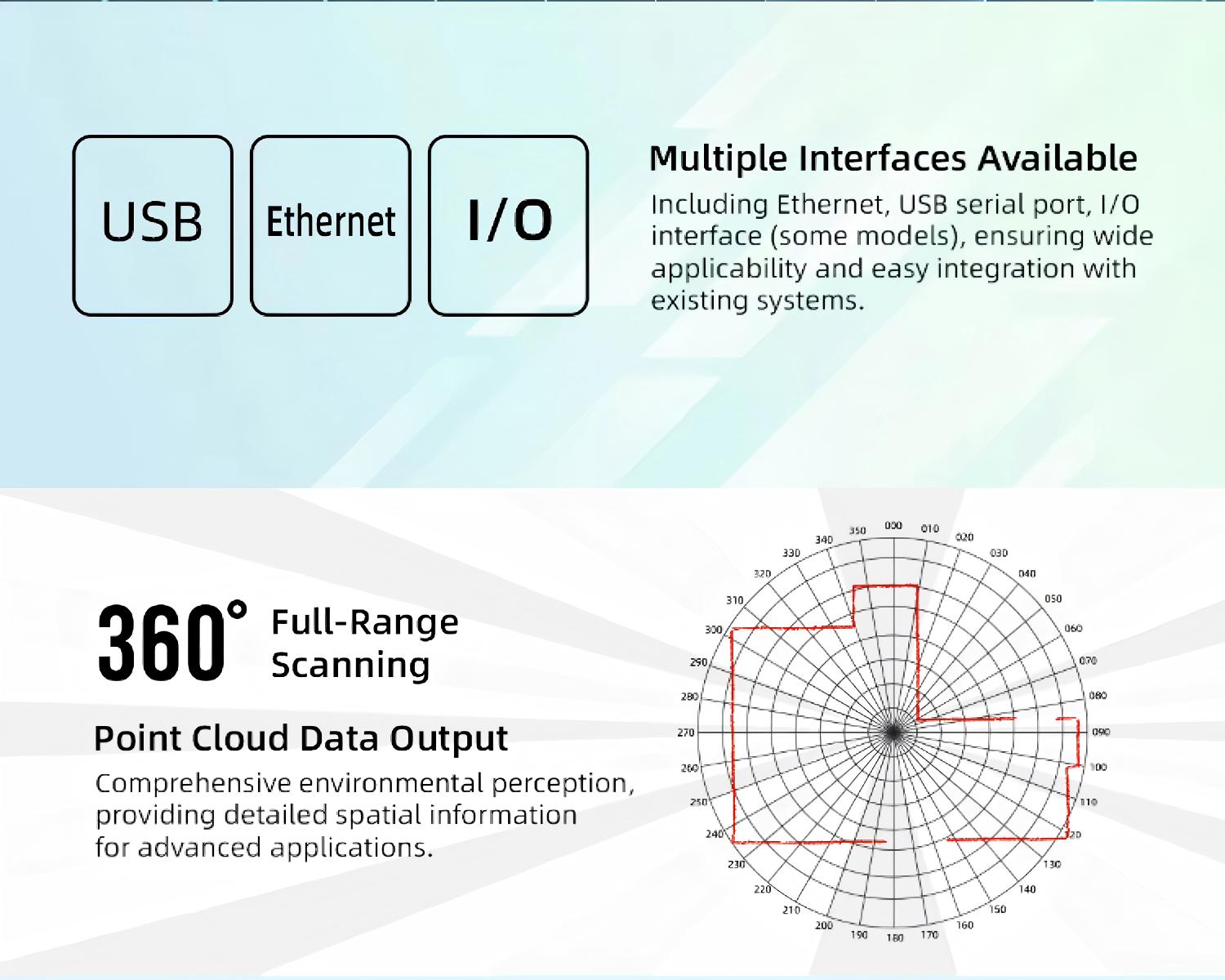

PACECAT LSS Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

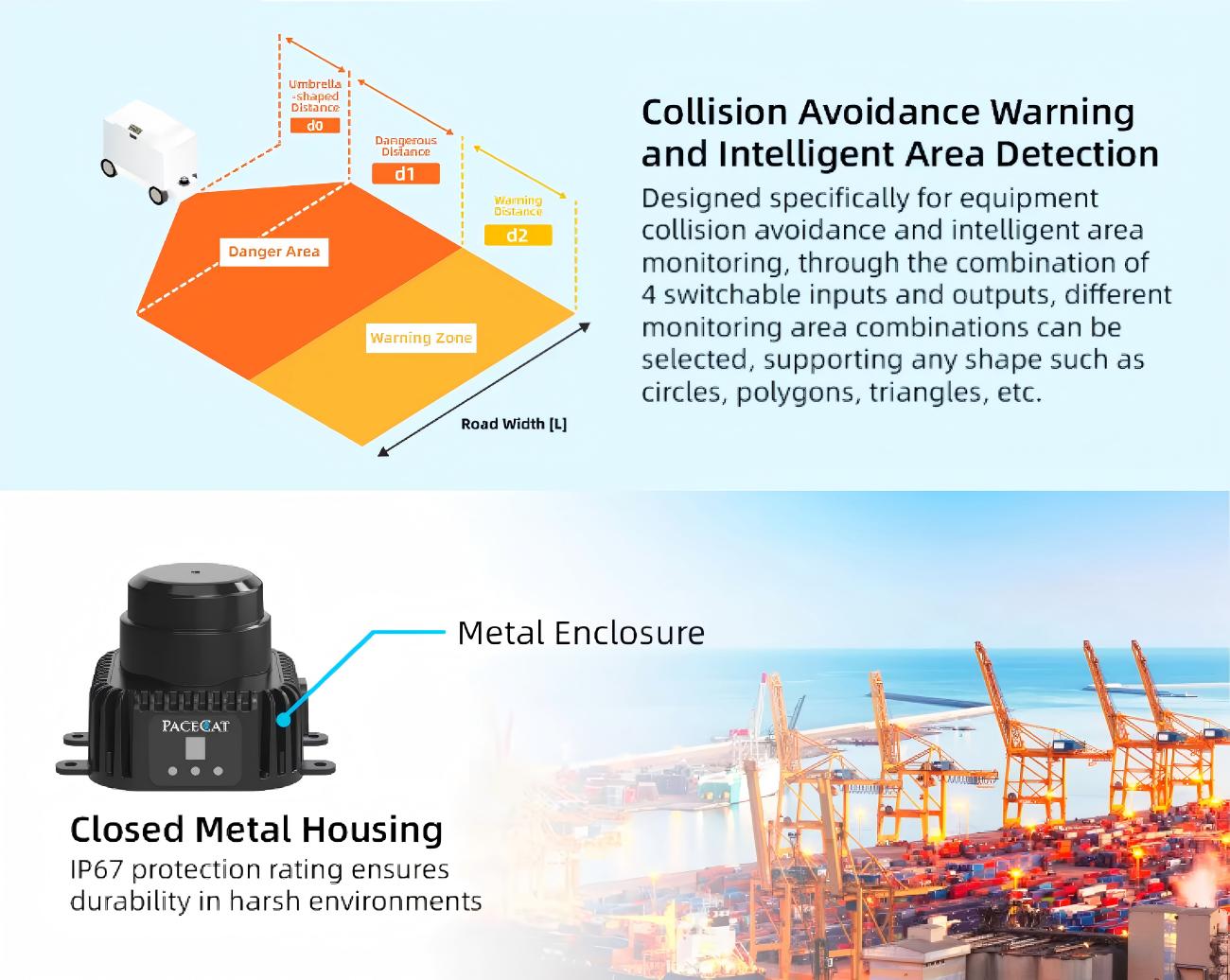

PACECAT LSS Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
PACECAT LSS Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
▤ Technical Specifications ⌃
Parameter LSS-10A-C30E44 LSS-40S-B20E44 LSS-40D-C30E LSS-40D-C20E
Model LSS-10A-C30E44 LSS-40S-B20E44 LSS-40D-C30E LSS-40D-C20E
Laser Wavelength 905nm±15nm 905nm±15nm 905nm±15nm 905nm±15nm
Measuring Distance 0.1-20m@90% 0.1-10m@10% 0.1-40m@90% 0.1-10m@10% 0.1-40m@90% 0.1-10m@10% 0.1-40m@90% 0.1-10m@10%
Laser Frequency 18kHz 18kHz 18kHz 30kHz
Refresh Frequency 10Hz, 15Hz 10Hz, 15Hz 10Hz, 15Hz 10Hz, 15Hz
Echo Mode Single Pulse Single Pulse Single Pulse Single Pulse
Echo Intensity 0-254 0-254 0-254 0-254
Drive Method Built-in Brushless Motor Built-in Brushless Motor Built-in Brushless Motor Built-in Brushless Motor
Horizontal Field of View (FOV) 360° 360° 360° 360°
Horizontal Angular Resolution 0.2°@10Hz 0.3°@15Hz 0.2°@10Hz 0.3°@15Hz 0.2°@10Hz 0.3°@15Hz 0.12°@10Hz 0.2°@15Hz
Range Accuracy ±30mm ±30mm ±30mm ±30mm
Distance Resolution mm mm mm mm
Data Interface USB/Ethernet 100Mbit/s USB/Ethernet 100Mbit/s USB/Ethernet 100Mbit/s USB/Ethernet 100Mbit/s
Anti-glare >80000LX >80000LX >80000LX >80000LX
Reference Weight 330g 330g 330g 330g
Working Voltage 10.0VDC-26.0VDC 10.0VDC-26.0VDC 10.0VDC-26.0VDC 10.0VDC-26.0VDC
Working Temperature -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C
Power Consumption ≤4W ≤4W ≤3W ≤3W
Protection Grade (IP) IP65/IP67 IP65/IP67 IP65/IP67 IP65/IP67
Device Dimensions (mm) 88 (68)×68×59mm 88 (68)×68×59mm 88 (68)×68×59mm 88 (68)×68×59mm
