High-Performance Humanoid Robot

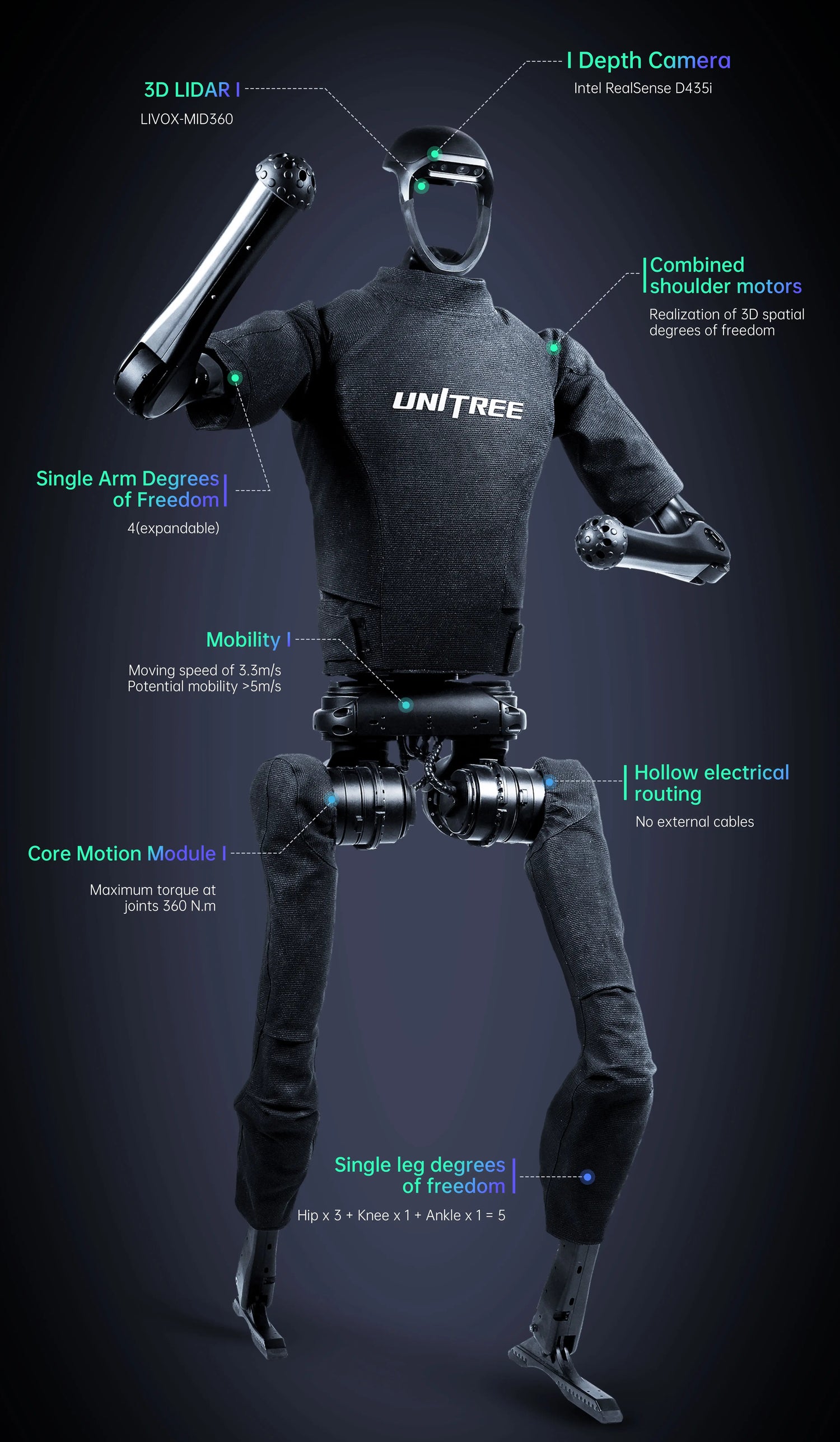

Peak torque density up to 189 N·m/kg and maximum joint torque 360 N·m, enabling powerful, fast and flexible robotic movement.
Unitree H1 Humanoid Robot for AI Research & Advanced Robotics is backordered and will ship as soon as it is back in stock.
Free shipping. 12-Day delivery.
| Features |

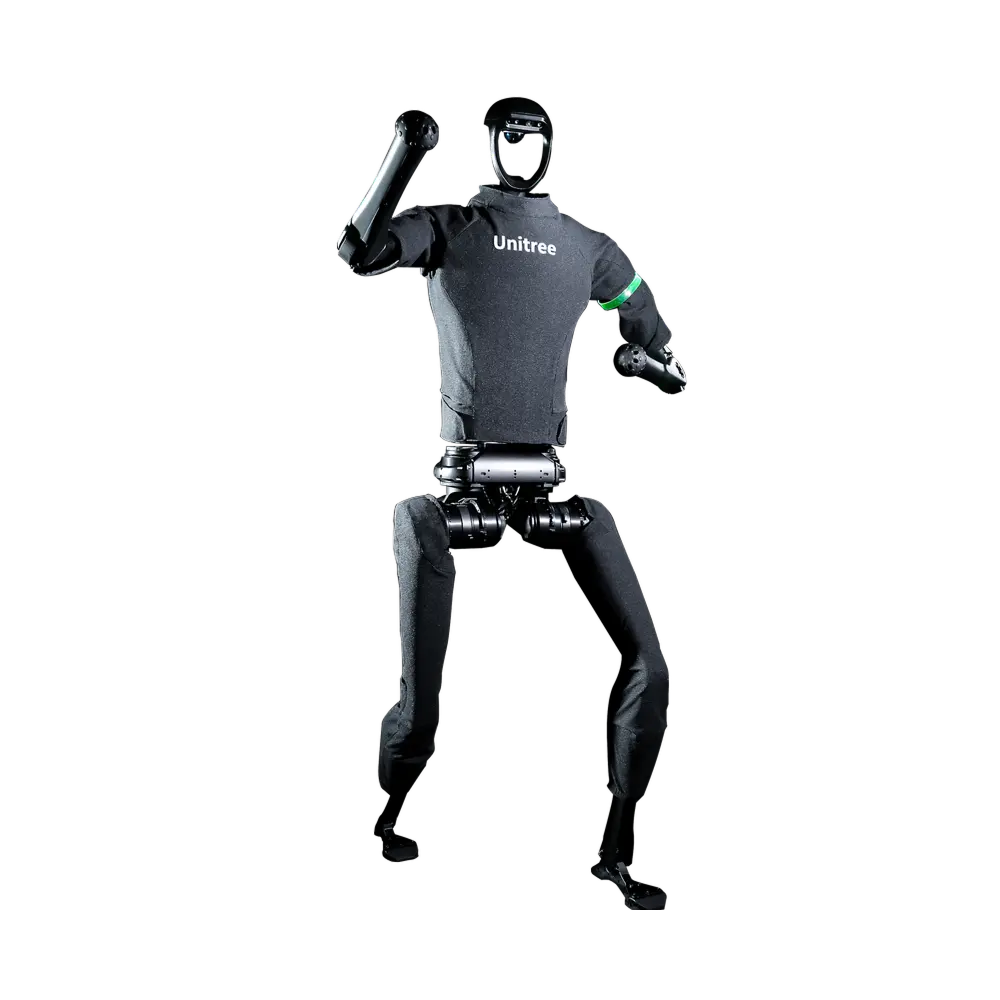

![]() Unitree H1 Humanoid Robot for AI Research & Advanced Robotics
$99,000
|
|---|
| Comparison label |
![]()
Unitree H1 Humanoid Robot for AI Research & Advanced Robotics
$99,000 |
![]()
Unitree H1-2 Humanoid Robot for Advanced AI & Robotics Research
$128,900 |
|---|---|---|
| Key Dimensions |
(1520+285) mm × 570 mm × 220 mm
|
(1503+285) mm × 510 mm × 287 mm
|
| Thigh and Calf Length |
400 mm × 2
|
400 mm × 2
|
| Total Arm Length |
338 mm × 2
|
685 mm
|
| DOF of Each Leg |
5 (Hip × 3 + Knee × 1 + Ankle × 1)
|
6 (Hip × 3 + Knee × 1 + Ankle × 2)
|
| DOF of Each Arm |
4 (Expandable)
|
7 (Shoulder × 3 + Elbow × 1 + Wrist × 3)
|
| Total Weight |
About 47 kg
|
About 70 kg
|
| Joint Output Bearing |
Industrial grade crossed roller bearings (high precision, high load capacity)
|
Industrial grade crossed roller bearings (high precision, high load capacity)
|
| Core Joint Motor |
Low inertia high-speed internal rotor PMSM (permanent magnet synchronous motor, better response speed and heat dissipation)
|
Low inertia high-speed internal rotor PMSM (permanent magnet synchronous motor, better response speed and heat dissipation)
|
| Ultimate Torque of Joint Unit | Knee Torque: About 360 N·m Hip Joint Torque: About 220 N·m Ankle Torque: About 59 N·m Arm Joint Torque: About 75 N·m
| Knee Torque: About 360 N·m Hip Joint Torque: About 220 N·m Waist Joint Torque: About 220 N·m Ankle Joint Torque: About 75 × 2 N·m
|
| Mobility |
Moving speed of 3.3 m/s (world record), potential mobility > 5 m/s
|
Moving speed < 2 m/s
|
| Battery |
Battery capacity 15 Ah (0.864 kWh), max voltage 67.2 V
|
Battery capacity 15 Ah (0.864 kWh), max voltage 67.2 V
|
| Control and Perception Computing Power | Standard Configuration: Intel Core i5 (Platform Function), Intel Core i7 (User Development) Optional Configuration: Intel Core i7 or Nvidia Jetson Orin NX
| Standard Configuration: Intel Core i5 (Platform Function), Intel Core i7 (User Development) Optional Configuration: Intel Core i7 or Nvidia Jetson Orin NX (up to three)
|
| Sensor Configuration |
3D LIDAR + Depth Camera
|
3D LIDAR + Depth Camera
|
| Dexterous Hand |
Optional
|
Optional Dex5-1 or other ambidextrous hands
|
| Arm Joint Performance (Peak Torque) |
/
| Shoulder: About 120 N·m Elbow: About 120 N·m Wrist: About 30 N·m
|
| Arm Normal Load |
/
| Peak: About 21 kg Rated: About 7 kg
|
