LIVOX

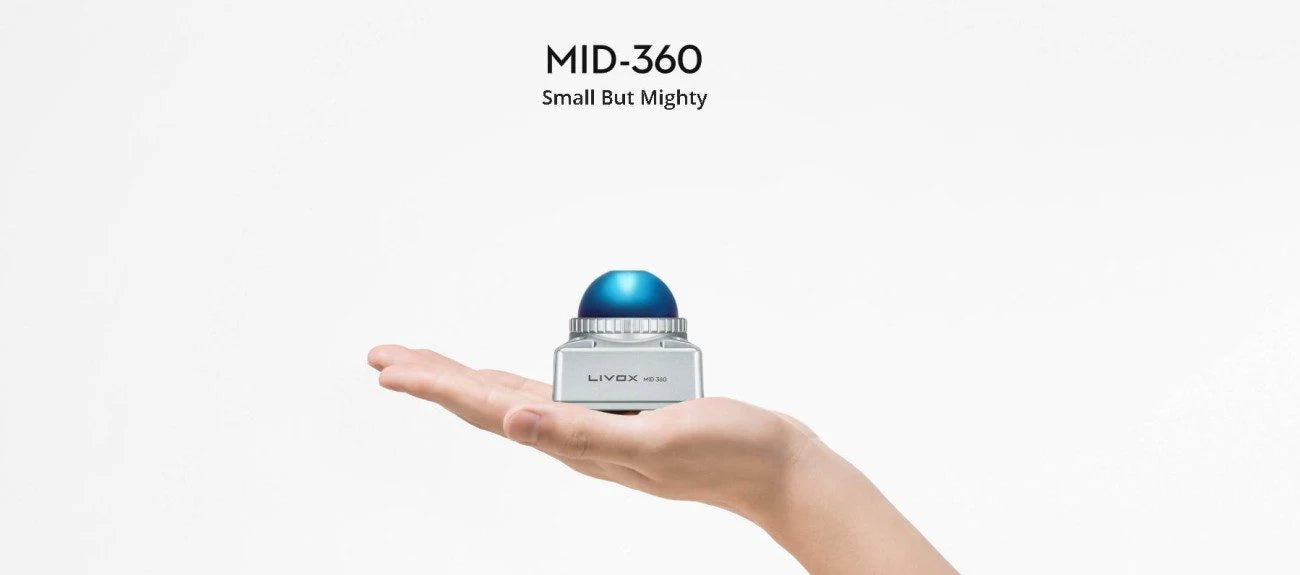

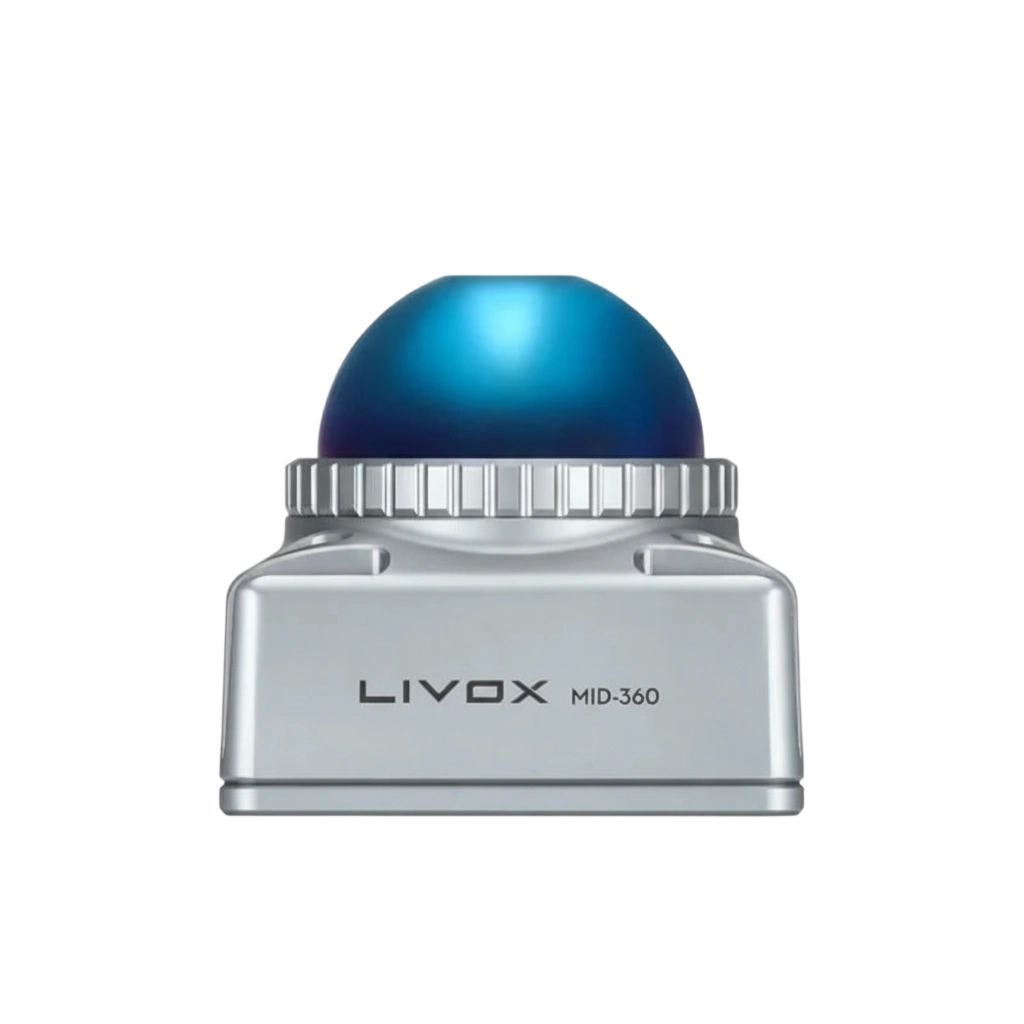

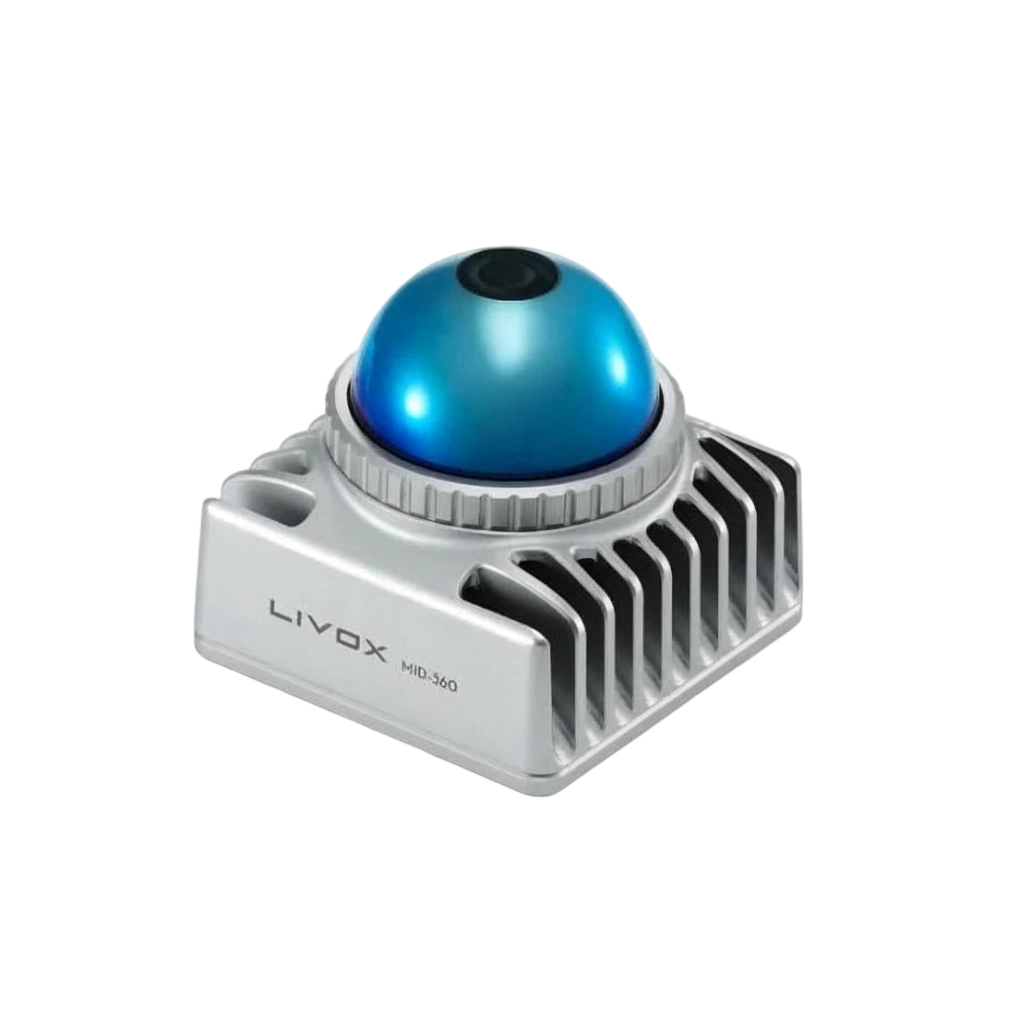

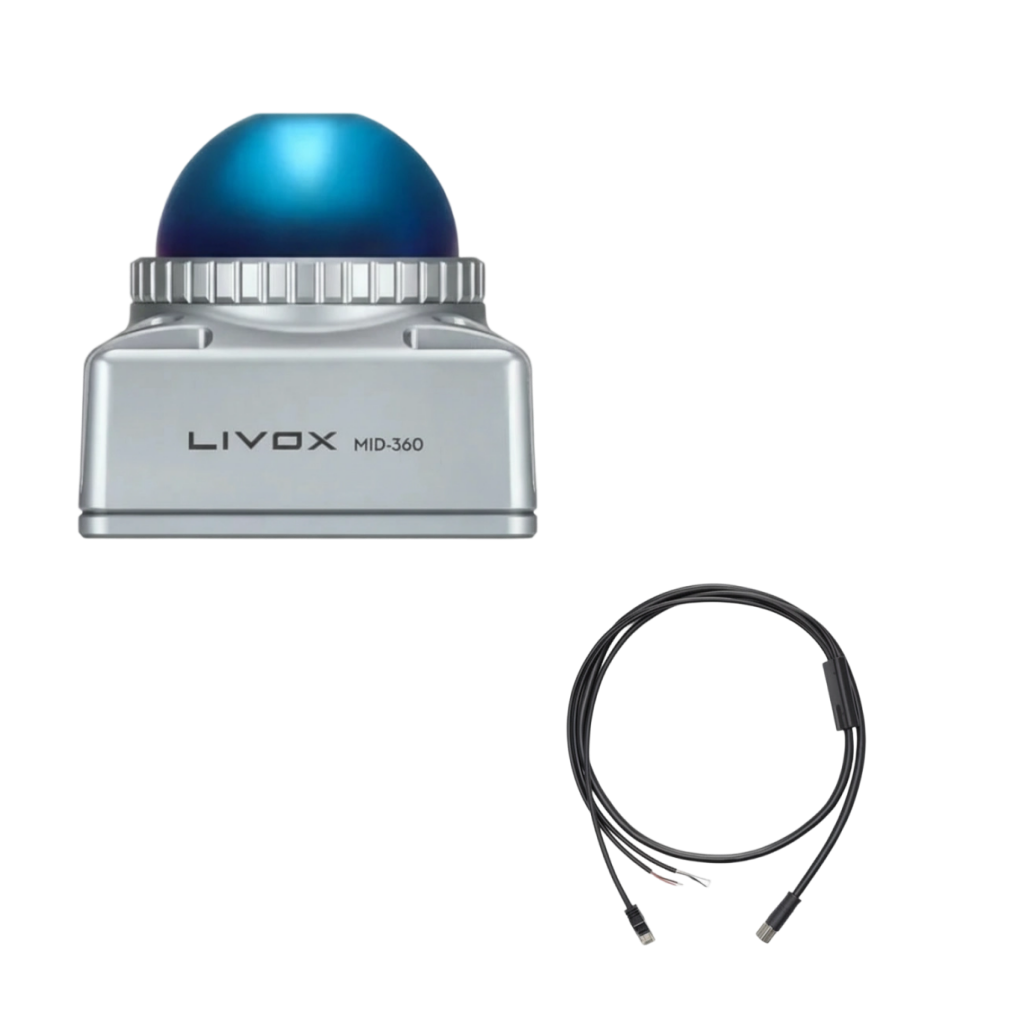

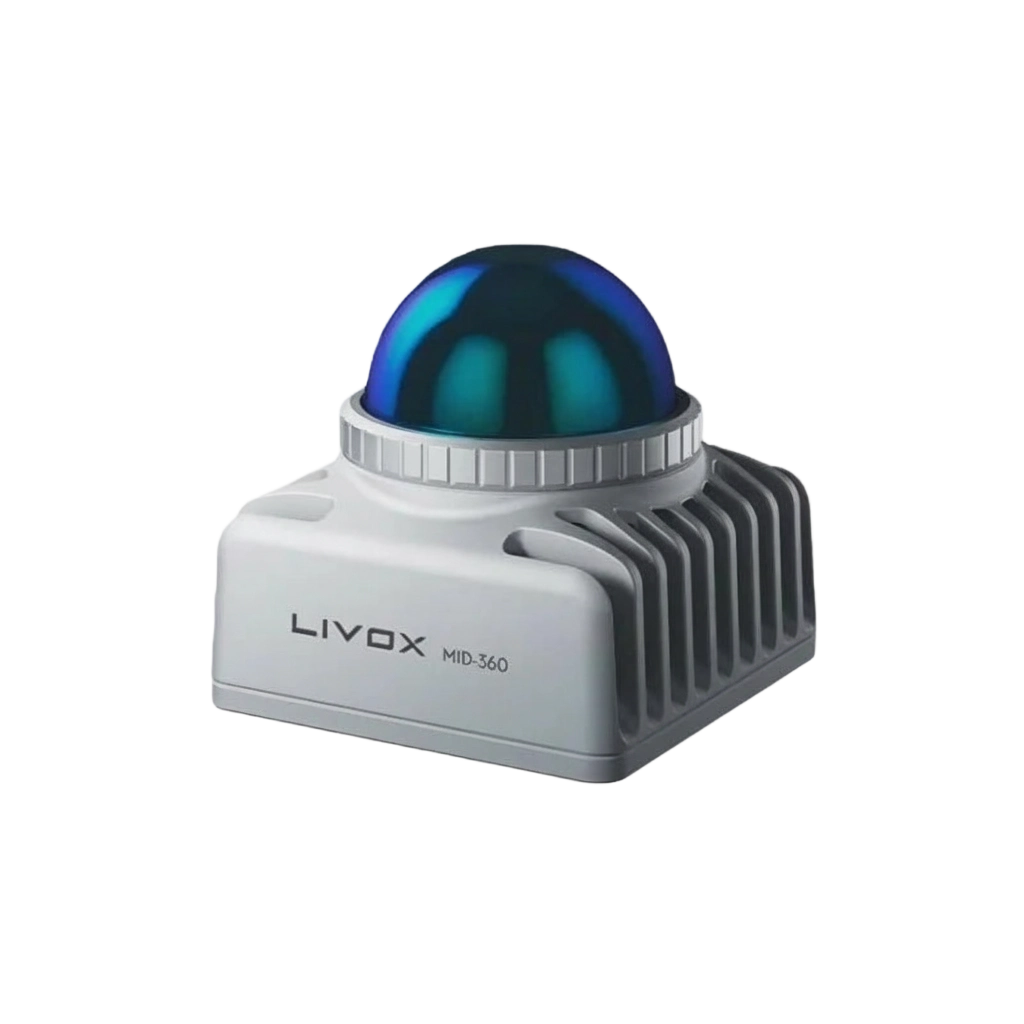

Livox MID-360 LiDAR Sensor for SLAM & Robotics | Quote

$899
Version

Care information

Install securely to prevent vibration or impact during operation. Operate within the specified voltage range and avoid exposure to moisture beyond the rated protection level. Do not stare directly into the laser aperture.

Shipping

Free shipping. 12-Day delivery.

Technical Specifications

Parameter Value
Laser Wavelength 905 nm
Laser Safety Classification Class 1 (IEC 60825-1:2014, Eye Safe)
Detection Range (@100 kLux, 10% Reflectivity) 40 m
Detection Range (@100 kLux, 80% Reflectivity) 70 m

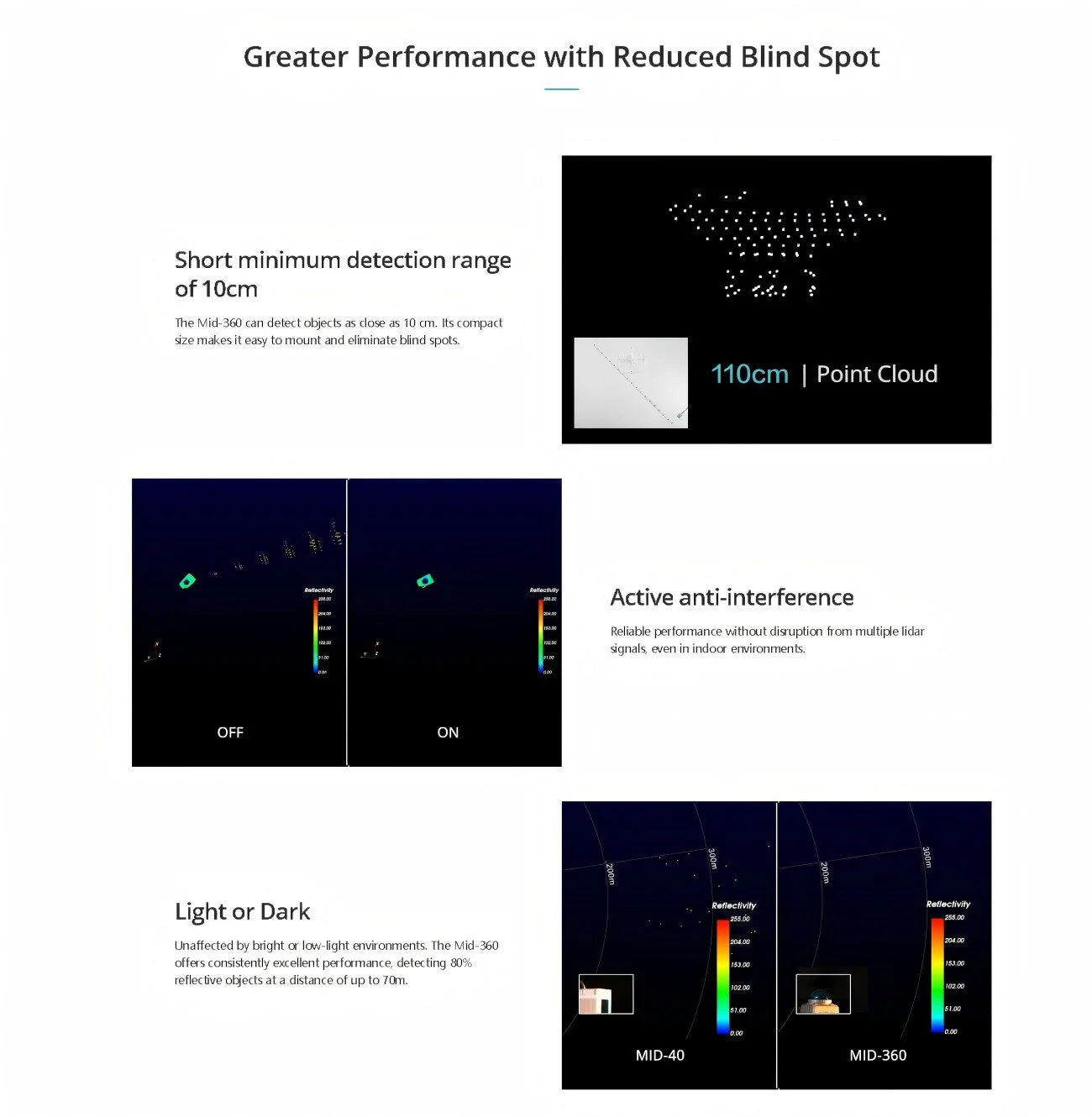

Minimum Detection Distance (Blind Zone) 0.1 m
Field of View (Horizontal) 360°
Field of View (Vertical) -7° to 52°
Distance Random Error (1σ @ 10 m) ≤ 2 cm
Distance Random Error (1σ @ 0.2 m) ≤ 3 cm
Angular Random Error (1σ) ≤ 0.15°
Point Rate 200,000 points/s
Frame Rate 10 Hz (Typical)
False Alarm Ratio (@100 kLux) < 0.01%
Data Interface 100BASE-TX Ethernet
Time Synchronization IEEE 1588-2008 (PTP v2), GPS
Anti-Interference Function Supported
Integrated IMU Built-in IMU (ICM-40609)
Power Consumption (Typical @25°C) 6.5 W
Power Supply Voltage Range 9 – 27 V DC
Operating Temperature Range -20°C – 55°C (-4°F – 131°F)
Storage Temperature Range -40°C – 70°C (-40°F – 158°F)
Ingress Protection Rating IP67
Dimensions (W × D × H) 65 × 65 × 60 mm
Weight Approx. 265 g

Technical Documentation

PDF
Livox_Mid-360_Quick_Start_Guide_multi.pdf
PDF
Livox_Mid-360_User_Manual_EN.pdf
STP
mid_360_fov_asm.stp
STP
mid_360_asm.stp
STP

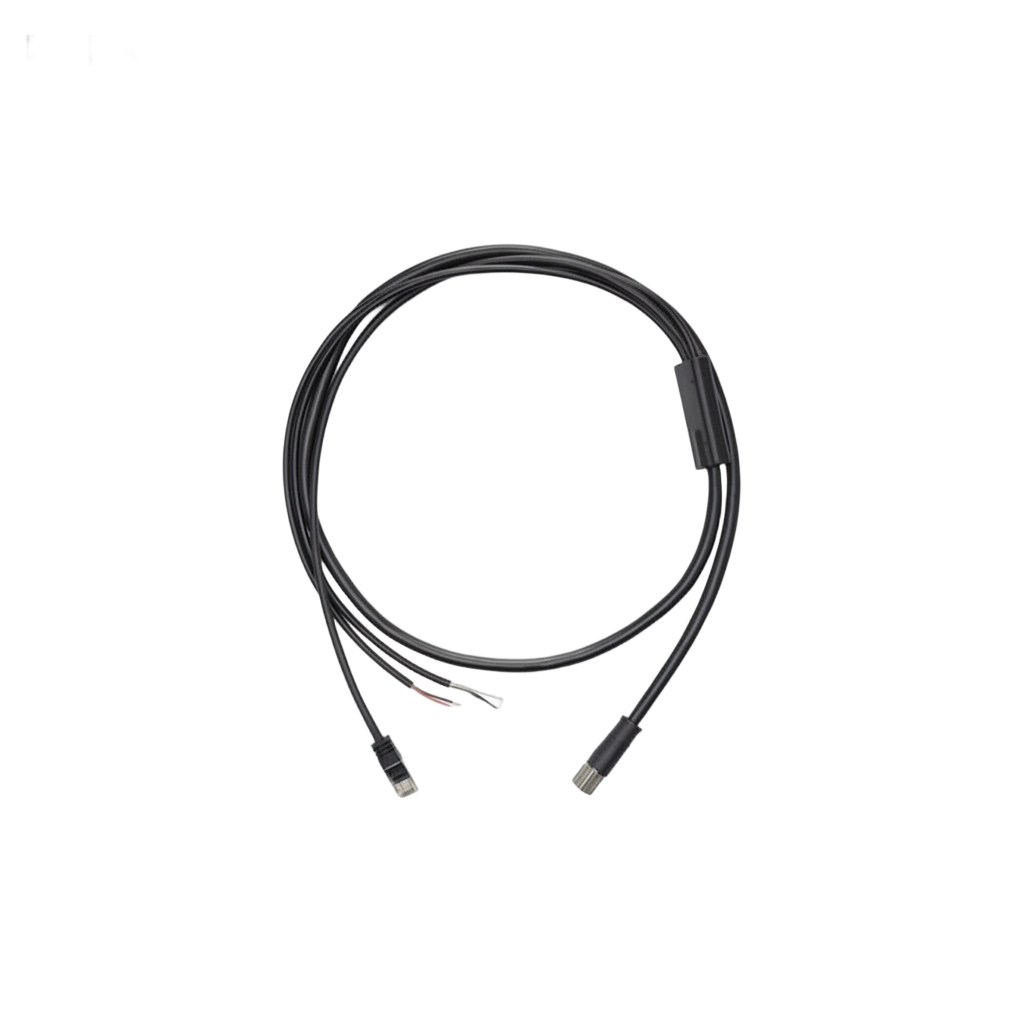

Livox_three_wire_aviation_connector.stp
