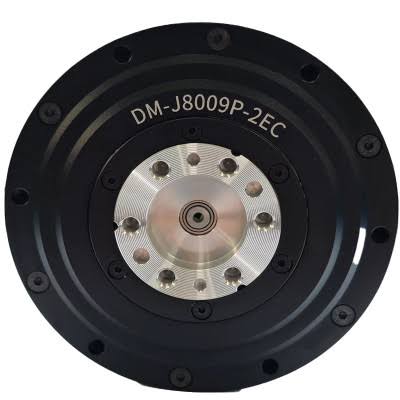

For robotic manipulators executing high-precision assembly and humanoids operating in close proximity to human personnel, the core requirement shifts from raw speed to extreme force compliance and positional accuracy. Traditional rigid direct-drive motors lack the necessary gear reduction to hold high payloads efficiently, driving up steady-state power consumption. To break this efficiency ceiling, advanced robotic architectures choose to integrate Damiao (DM) High-Torque Frameless Motors or integrated controllers alongside high-precision Harmonic Drives (such as Strain Wave Gearing topologies). This integration provides massive torque amplification within a highly compact physical envelope, establishing zero-backlash position holding that is critical for sub-millimeter industrial tracking loops.
Kinematic Modeling and Missing Non-Linear Elasticity Profiles
The control loop configuration typically implements multi-loop feedback systems using dual absolute encoders: one positioned on the motor shaft to monitor high-speed commutation, and a second high-resolution encoder placed past the output side of the harmonic reducer to actively isolate gear-teeth flex and structural wind-up.
However, from an analytical modeling viewpoint, treating a harmonic drive joint as a purely rigid link introduces profound errors into real-time impedance control algorithms. Academic papers routinely gloss over the explicit non-linear elasticity and hysteresis profiles inherent to the flexible spline component of the strain wave gear when driven by Damiao's dynamic FOC current controllers. Essential parameters required for precise state estimation—specifically the non-linear spring constants (k) under dynamic load reversals, the frequency-dependent friction coefficients of the wave generator, and the precise velocity ripple amplitudes caused by soft-tooth engagement—are completely omitted from standard datasheets. Without these characterization profiles, implementing high-performance Series Elastic Actuation (SEA) or virtual compliance models results in tracking errors and joint-level oscillation.
The Flexspline Structural Fatigue Barrier and the Realities of Total Cost of Ownership (TCO)
While the fusion of Damiao’s high-torque density motors with harmonic drives delivers unmatched compact torque output on paper, deploying these high-reduction setups across continuous commercial operations exposes intense mechanical vulnerabilities and severe cost penalties.
- The Flexspline Fatigue Trap: The underlying mechanics of strain wave gearing depend on the continuous elastomeric deformation of a thin-walled steel flexspline. Under repetitive, contact-rich high-torque loads—such as emergency braking cycles or rigid obstacle impacts—the flexspline undergoes extreme micro-scale stress concentration, leading to accelerated metal fatigue, tooth skipping, or immediate structural shearing.
- The High TCO Penalty: Furthermore, harmonic drives are notoriously sensitive to temperature fluctuations; as friction heats the specialized grease, its kinematic viscosity breaks down, accelerating gear wear and ruining the system's absolute positioning accuracy. Because of this steep wear-and-tear index, the Total Cost of Ownership (TCO) for high-reduction joint assemblies remains incredibly high. Until the robotics industry standardizes autonomous, real-time backlash self-calibration software layers and drops the component pricing of precision strain wave gearing, high-reduction setups will remain confined to specialized low-speed industrial arms, failing to achieve the cost-effective scale required for mass-market service or logistics humanoid fleets.
```
