LimX Dynamics

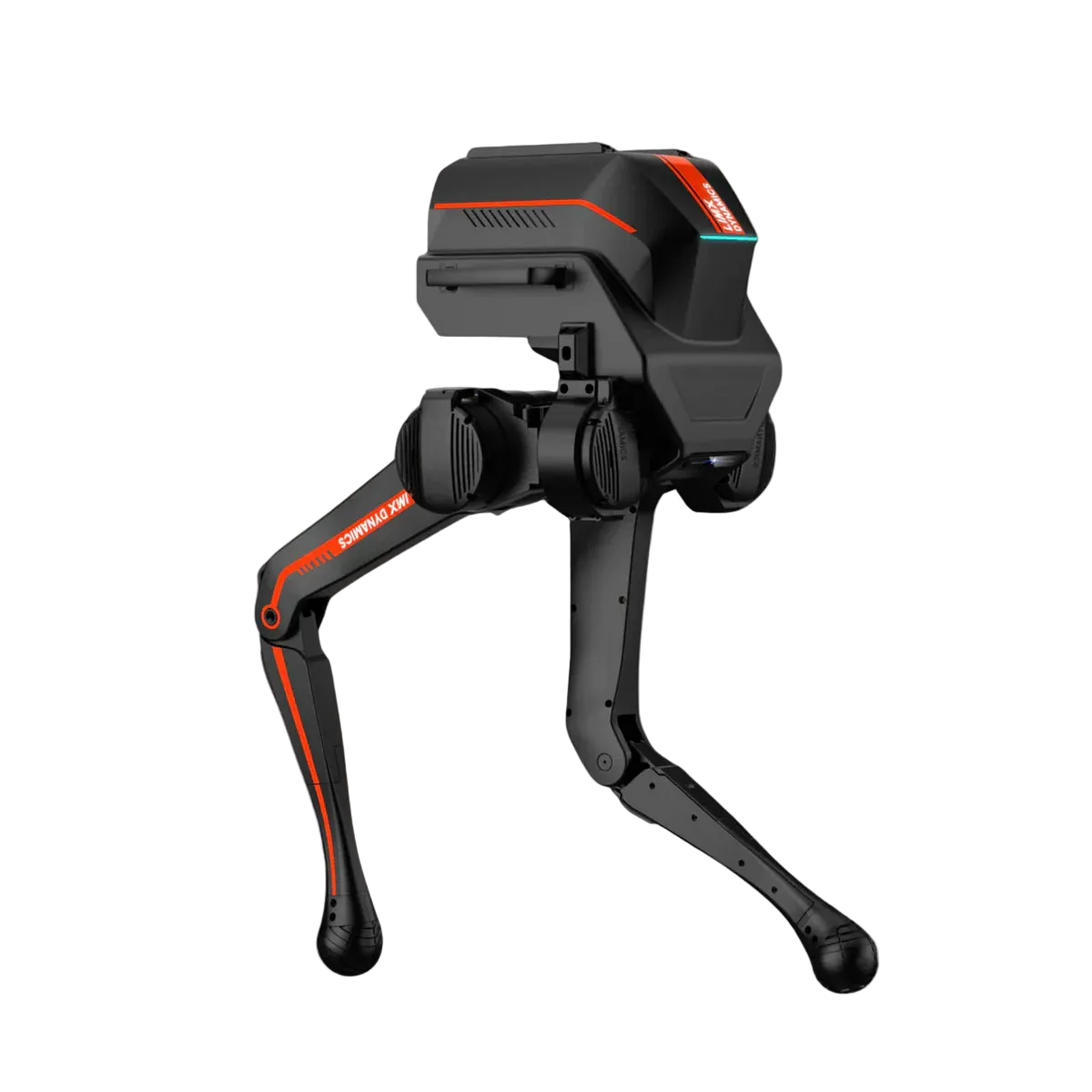

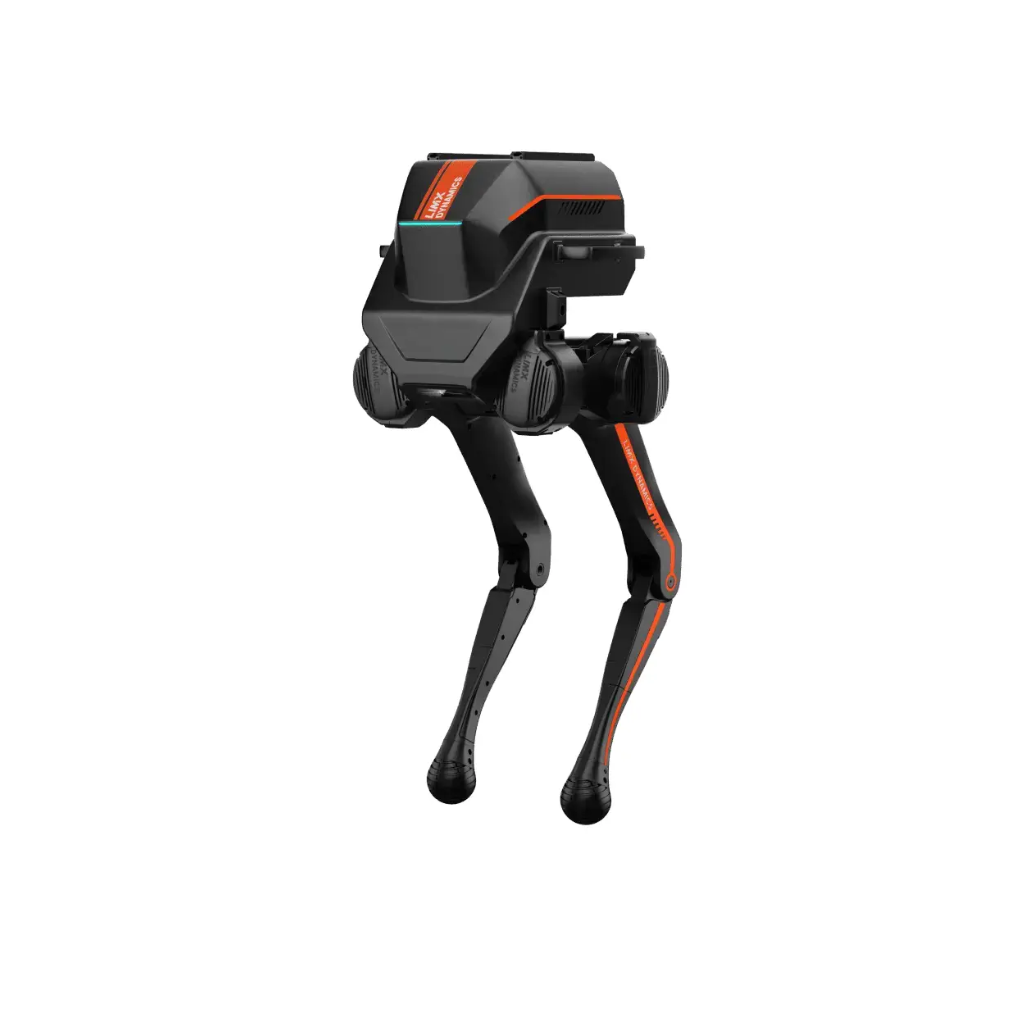

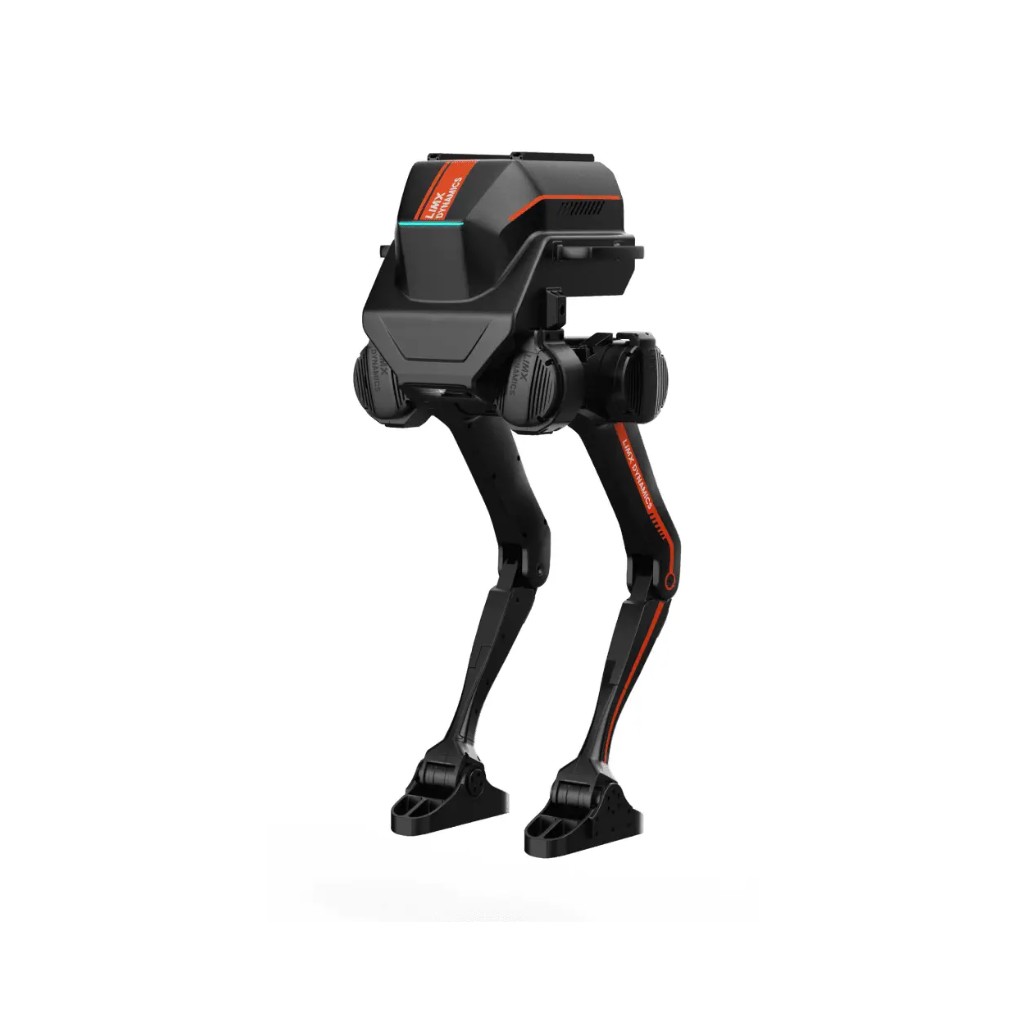

LimX Dynamics TRON 1 Multi-Modal Standard Biped Robot for Robotics Development

LimX Dynamics' TRON 1 is the first multi-modal biped robot, serving as a R&D platform that supports innovation in both robotic hardware and software across various disciplines and fields.

$13,000

Care information

Store in a dry, dust-free environment and avoid impact or excessive vibration during handling. Do not disassemble the motor or modify internal components, as this may affect performance and void warranty. Ensure proper voltage supply and secure mounting before operation.

Shipping

Free shipping. 12-Day delivery.

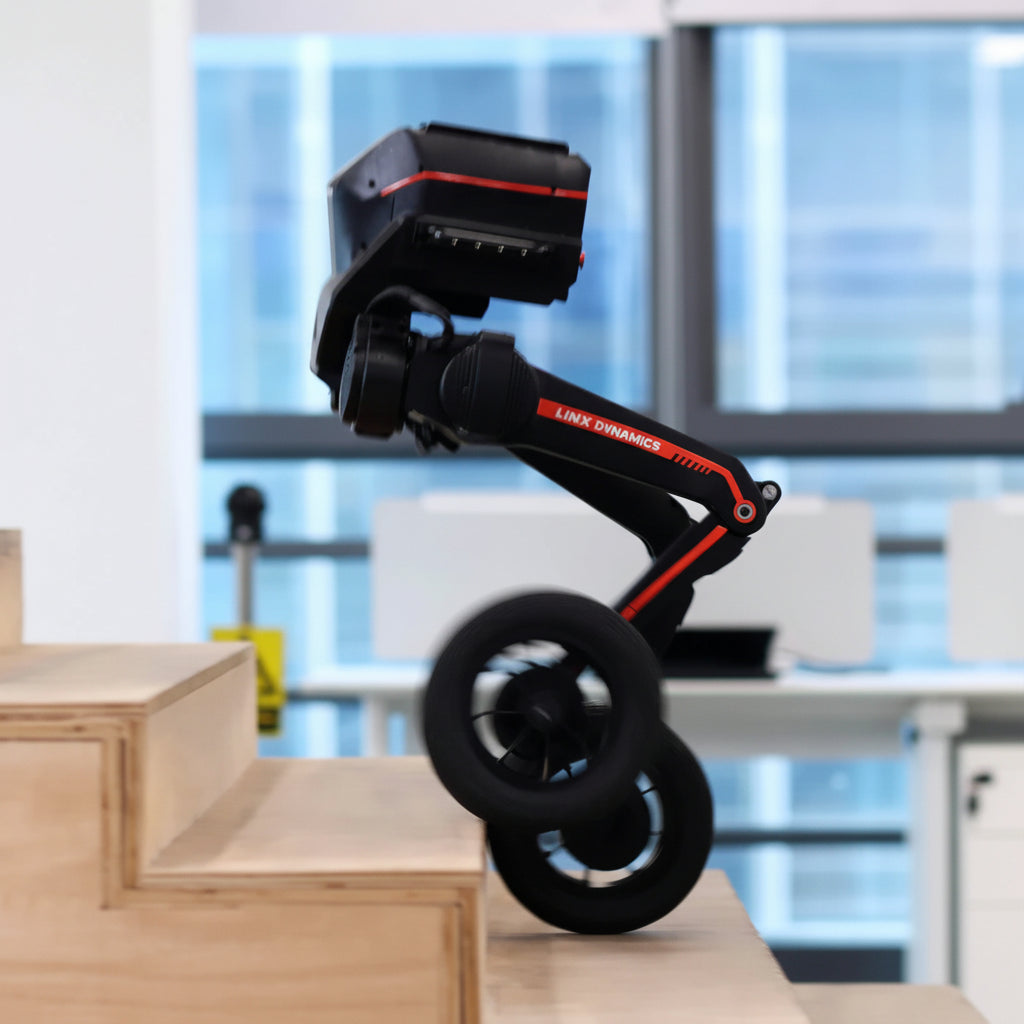

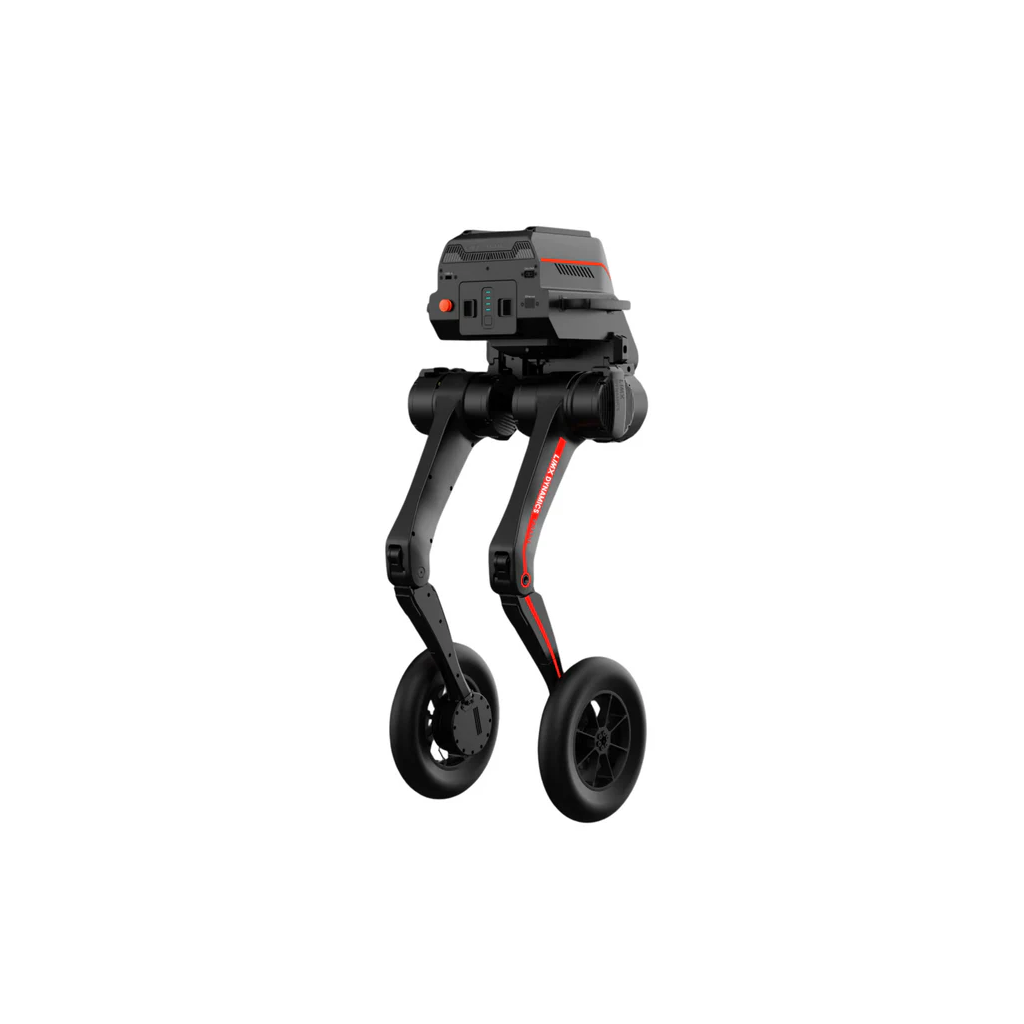

TRON 1 features a modular design that allows for seamless switching among three different foot end configurations.

With automatic hardware recognition and software adaptation, it provides a flexible and versatile platform for
research.

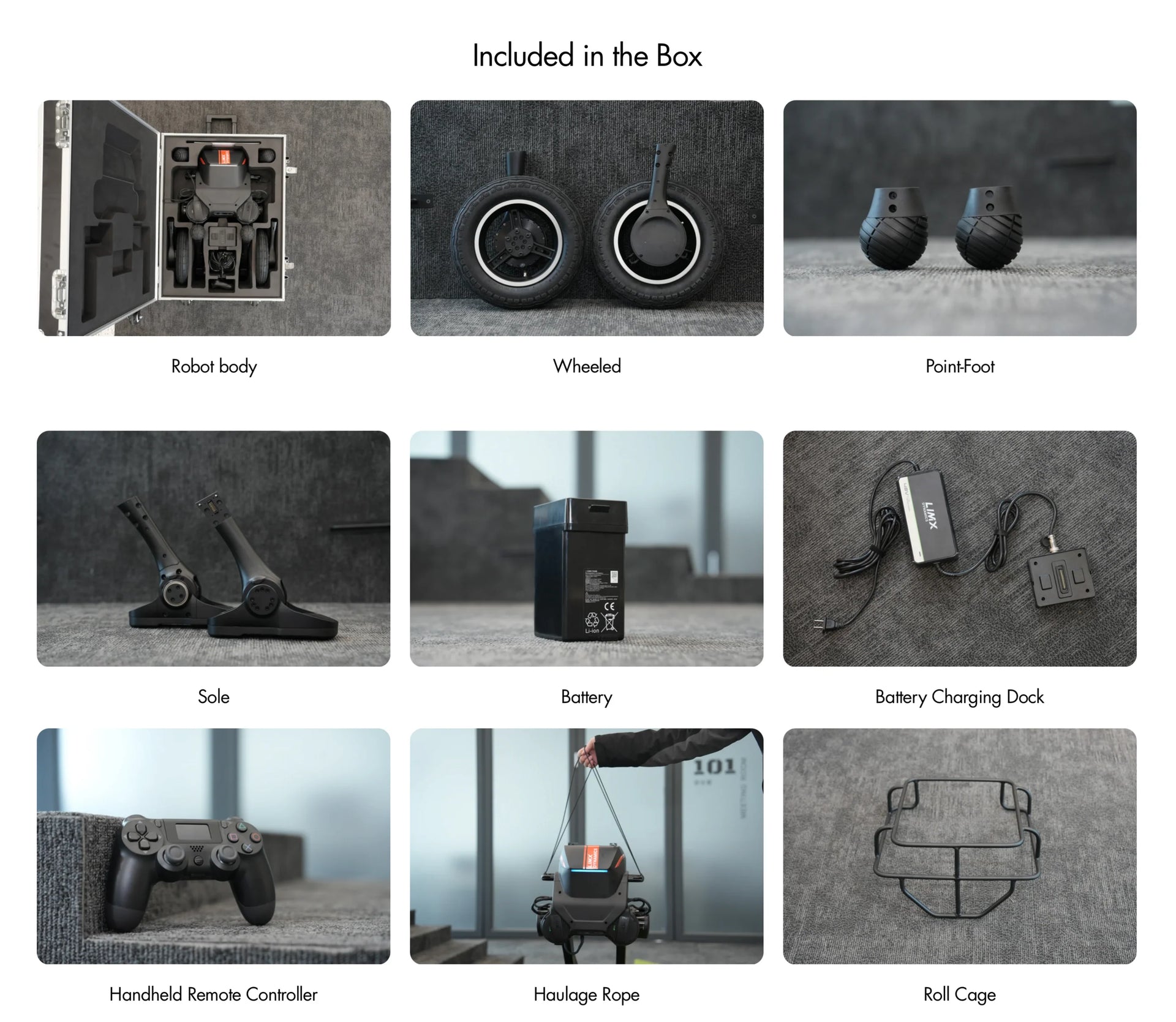

Ready to Use Right Out of the Box

Feature the simplicity of the bipedal structure and built-in high-performance motion control algorithms for immediate use

Quick Assembly & Disassembly Mechanism

Efficient switching of different foot-ends for flexible combinationsAutomatic hardware recognition and software adaptation

Limx Dynamics TRON 1

Innovative Configurations

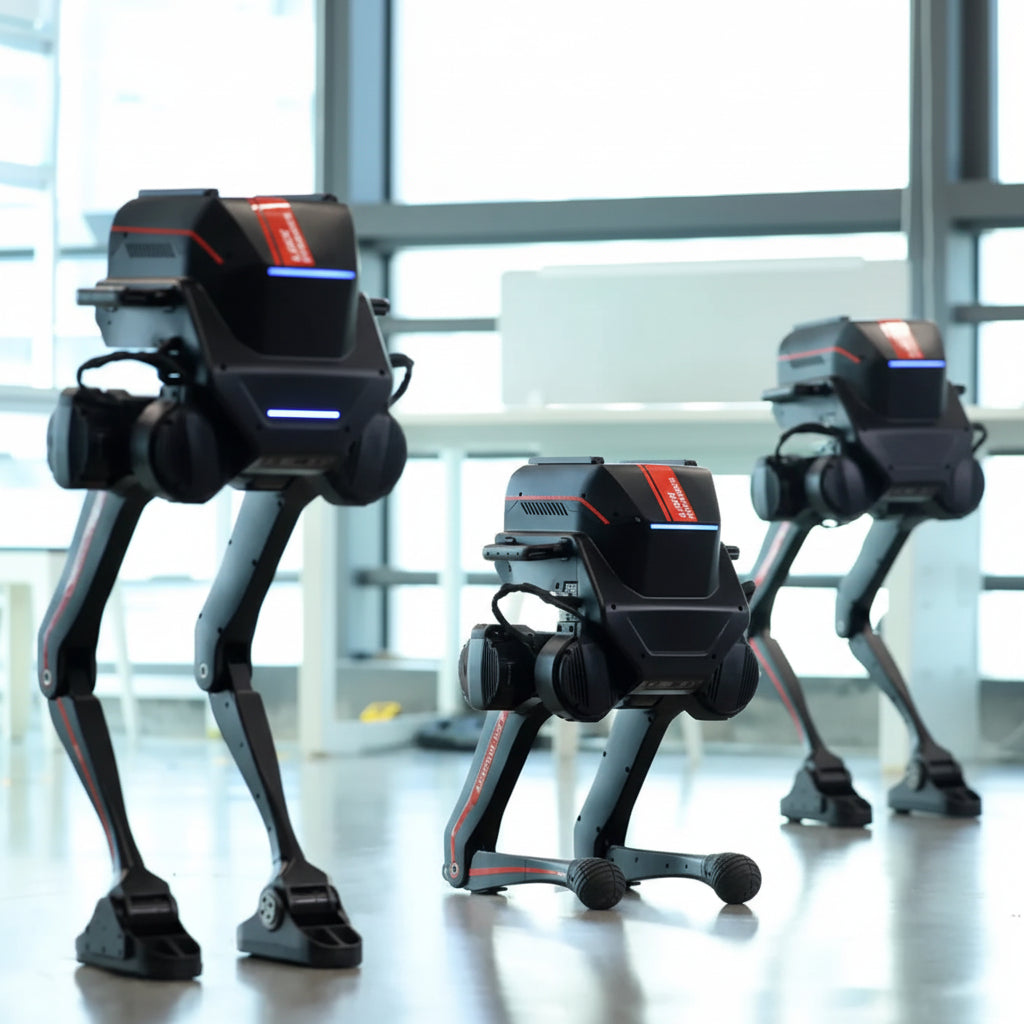

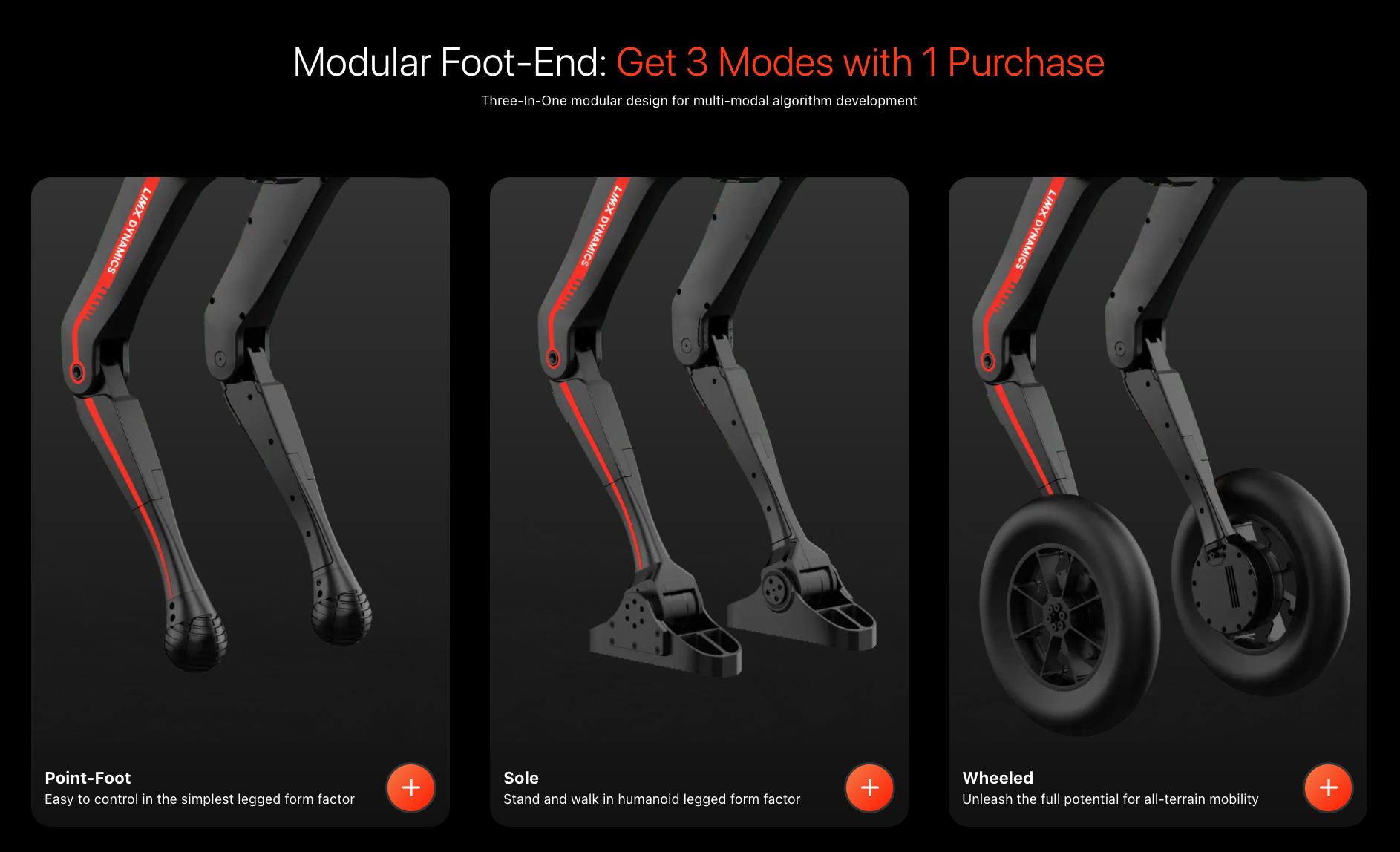

TRON 1 features a unique and innovative “Three-In-One” modular design for multi-modal algorithm development, equipped with a fully open SDK and hardware interfaces to unlock the hardware's potential to meet the demands of high-complexity verification and validation (V&V).

Spin Up Rl Research

TRON 1 supports full-process development with Python, and one-click Sim2Real deployment, significantly accelerating reinforcement learning research.

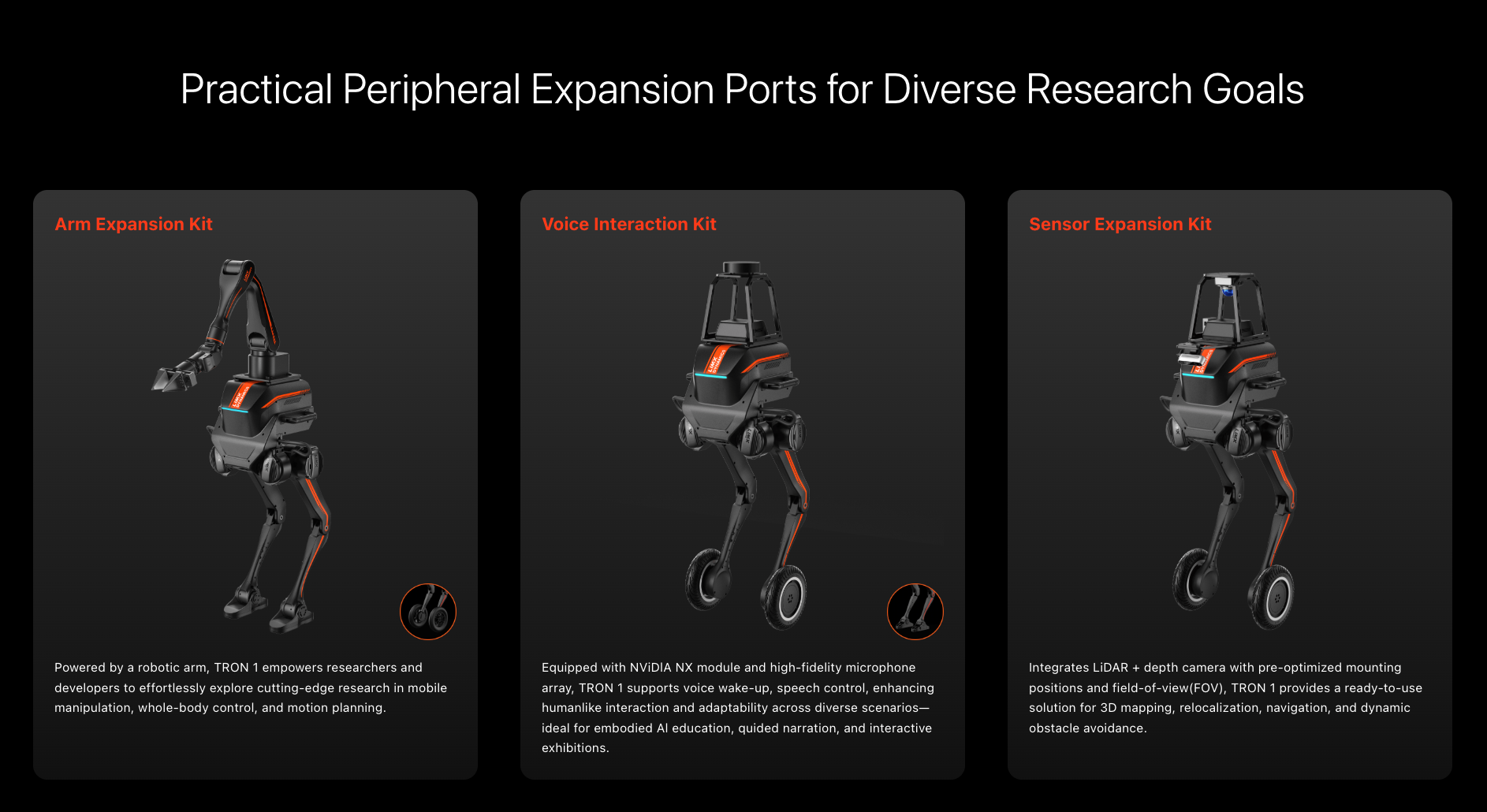

Boasting a wide range of practical ports, TRON 1 allows for various expansion accessories to maximize its applications in diverse research areas. The goal is to empower innovators in academic research, new technology development, industrial exploration, educational training, and more.

Supports Cross-field Research

In the AI era of general-purpose robots, TRON 1 serves as the best onboarding platform for humanoid robot motion control and a must-have testbed for Embodied Intelligence research.
≡ PARAMETER ⌃
Mechanical Parameters
Standard Edition
Education Edition
Dimensions
≤392mm x 420mm x 845mm
≤392mm x 420mm x 845mm
Material
Aluminum Alloy + Industrial Plastic
Aluminum Alloy + Industrial Plastic
Net Weight
≤20kg
≤20kg
Battery Parameters
Standard Edition
Education Edition
Battery Supply Voltage
48V
48V
Maximum Battery Power
1000W
1000W
Battery Swapping
✓
✓
Battery Type
Ternary Lithium
Ternary Lithium
Battery Capacity
240Wh (48v/5Ah)
240Wh (48v/5Ah)
Battery Range
≥2h (At Rated Operational Conditions)
≥2h (At Rated Operational Conditions)
Charging Methods
Battery Charging / Quick Battery Swap
Battery Charging / Quick Battery Swap
Charger
Battery Charging Dock
Battery Charging Dock
Charging Time
<1h (20%-80%) / 1.5h (100%)
<1h (20%-80%) / 1.5h (100%)
Performance Parameters
Standard Edition
Education Edition
Load Capacity
0kg (Maximum 15kg)
0kg (Maximum 15kg)
Movement Speed
Point-Foot <1 m/s / Sole <1 m/s / Wheeled ≥5 m/s
Point-Foot <1 m/s / Sole <1 m/s / Wheeled ≥5 m/s
Maximum Climbing Angle
≥15°
≥15°
Maximum Obstacle Height Limitation
15cm
15cm
Computer Specification
12th Gen i3 / 16GB RAM / 512GB (CPU/Memory/Storage)
12th Gen i3 / 16GB RAM / 512GB (CPU/Memory/Storage)
Operating Environment
-5°C to 40°C (Operates in favorable weather conditions)
-5°C to 40°C (Operates in favorable weather conditions)
Actuator Parameters
Standard Edition
Education Edition
Rated Voltage (V)
48V
48V
Rated Torque (Nm)
30Nm
30Nm
Peak Torque (Nm)
80Nm
80Nm
Peak Motor Speed (rad/s)
15rad/s
15rad/s
Sensor Configuration
Standard Edition
Education Edition
RGBD Camera
/
✓ (Optional)
IMU
✓
✓ (IMU Data Access for Developers)
Extensibility
Standard Edition
Education Edition
Peripheral Expansion Ports
/
1×USB3.0 / 1×GbE
Peripheral Power Supply Port
/
24V Output Power: 100W (Peak 200W)
Peripheral Mounting Point
✓
✓
Remote Controller
Standard Edition
Education Edition
Handheld Remote Controller
1 Pcs
1 Pcs
Remote Controller Communication Range
50m
50m
Developer Tools
Standard Edition
Education Edition
Software Upgrade
Supported
Supported
Remote E-Stop
✓
✓
E-Stop Button
✓
✓
Secondary Development
/
Supported
SDK
/
✓
Data Visualization Tools
/
✓
Data Recording and Playback
/
✓
Joint Control Algorithm
/
✓
Simulation Platforms
-
✓
Foot End Extension
Standard Edition
Education Edition
Point-Foot
Four-directional Movement / Turning / In-place Stepping / Squatting Up and Down
Four-directional Movement / Turning / In-place Stepping / Squatting Up and Down
Sole
Four-directional Movement / Turning / In-place Stepping / Static Standing / Squatting Up and Down
Four-directional Movement / Turning / In-place Stepping / Static Standing / Squatting Up and Down
Wheeled
Four-directional Movement / Differential Steering / Turning / In-place Stepping / Static Standing / Squatting Up and Down
Four-directional Movement / Differential Steering / Turning / In-place Stepping / Static Standing / Squatting Up and Down
Others
Standard Edition
Education Edition
Spare Battery
1 (Optional)
1 (Optional)
RGBD Camera
/
1 (Optional)
Roll Cage
1 (Optional)
1 (Optional)
Accessories: Point-Foot
1 Pair
1 Pair (Optional)
Accessories: Wheeled
1 Pair
1 Pair (Optional)
Accessories: Sole
1 Pair
1 Pair (Optional)

Technical Documentation

PDF
TRONI_MULTI-MODAL_BIPED_ROBOT.pdf
