By Bing Xu | Published: May 21, 2026
In legged robotics and dynamic humanoid platforms, the paradigm choice between high-reduction gear trains and Quasi-Direct Drive (QDD) actuation dictates the compliance and safety limits of the entire physical agent. Traditional setups relying on high-ratio harmonic drives suffer from excessive reflected inertia, turning low-level force control into a highly non-linear, unpredictable optimization problem. To bypass this barrier, researchers globally are standardizing on Damiao (DM) Actuators (such as the DM-J40 or DM-MC series), which natively build upon the MIT Cheetah open-source lineage. By coupling high-torque density permanent magnet synchronous motors (PMSM) with low-reduction planetary gearing (typically 1:6 to 1:10), the Damiao architecture maximizes mechanical backdrivability. This physical layout transforms complex force estimation bottlenecks into deterministic current-loop measurements, enabling high-bandwidth torque response without the added weight of multi-axis joint torque sensors.
System Architecture and Characterization Deficiencies in Distributed Topologies

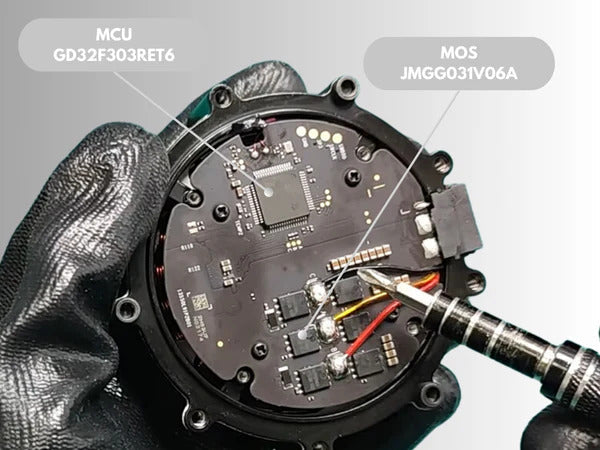

The structural design integrates a customized field-oriented control (FOC) drive board directly onto the motor chassis, routing multi-turn absolute encoders alongside high-speed CAN/RS485 communication interfaces. This distributed computational layout allows researchers to execute localized, low-latency current and position loops at the joint level, significantly reducing the bandwidth burden on the robot's centralized Main Compute Unit (MCU).
However, from an academic validation standpoint, several core performance boundaries of the commercial Damiao modules remain unmapped in available literature. Key technical benchmarks—specifically the definitive thermal dissipation constraints under peak-torque continuous stalling states, the precise mechanical backlash decay profiles over millions of impact cycles, and the exact signal-to-noise ratio (SNR) of the onboard magnetic encoder under extreme high-current phase interference—are missing. For roboticists developing robust state estimators or Model Predictive Control (MPC) algorithms within non-structural terrains, these unlisted parameters introduce unmodeled compliance variables.
The Thermal Saturation Trap and the Scale Economics of Custom Stators
While utilizing Damiao’s off-the-shelf QDD modules accelerates laboratory prototyping, transitioning these components into mass-market commercial production reveals severe mechanical trade-offs and scaling limitations.
- The Thermal Flux Overload: Low-reduction QDD actuators rely heavily on continuous high-current injection to maintain torque when countering gravity or external payloads. This operational profile generates rapid Joule heating within the stator windings. Without active external liquid-cooling paths or advanced thermal-interface-material (TIM) encapsulation, Damiao units face rapid thermal saturation, triggering thermal throttling that sharply degrades peak torque execution during prolonged runs.
- The Custom Stator Bottleneck: Achieving optimal torque density requires high slot-fill factors and custom concentrated winding topologies, which are historically difficult to automate at scale. Compared to automotive-grade mass production lines, the specialized assembly yield for these high-torque robotic stators remains low, driving up marginal manufacturing costs. Until the supply chain achieves commoditization of custom-wound frameless motors, building dense humanoid fleets using high-premium distributed actuators presents a substantial commercial barrier, locking the solution into high-end R&D testbeds and precision lab environments.
