ROBSTRIDE

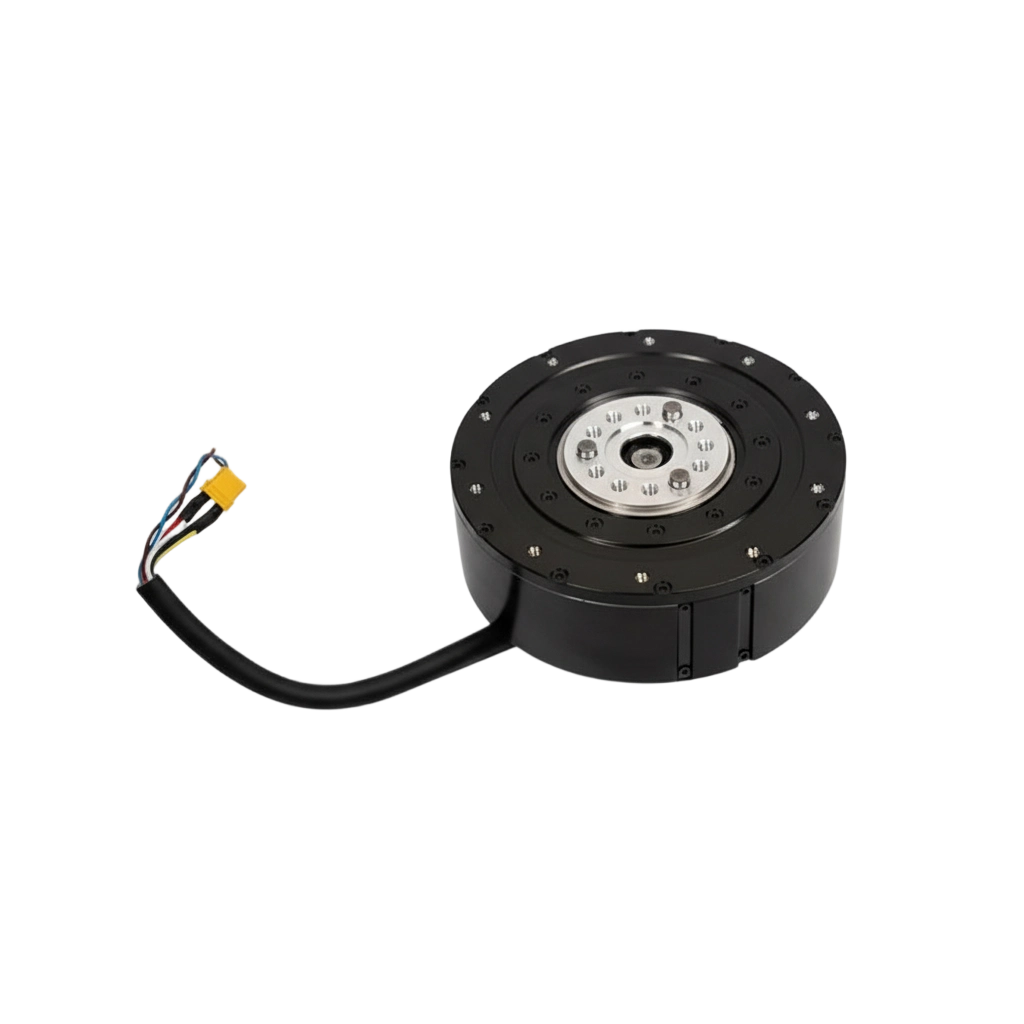

ROBSTRIDE 04 Integrated Actuator for Humanoid Robots | High-Torque OEM

$330
Version

Care information

Operate within the specified voltage and load limits to prevent overheating or damage. Ensure adequate ventilation during use and avoid exposure to moisture or dust. Disconnect power before installation or maintenance.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Technical Specifications

Parameter Value
Dimensions (L × W × H) 120 × 120 × 56 mm
Weight 1420 g ± 20 g
Gear Ratio 9:1

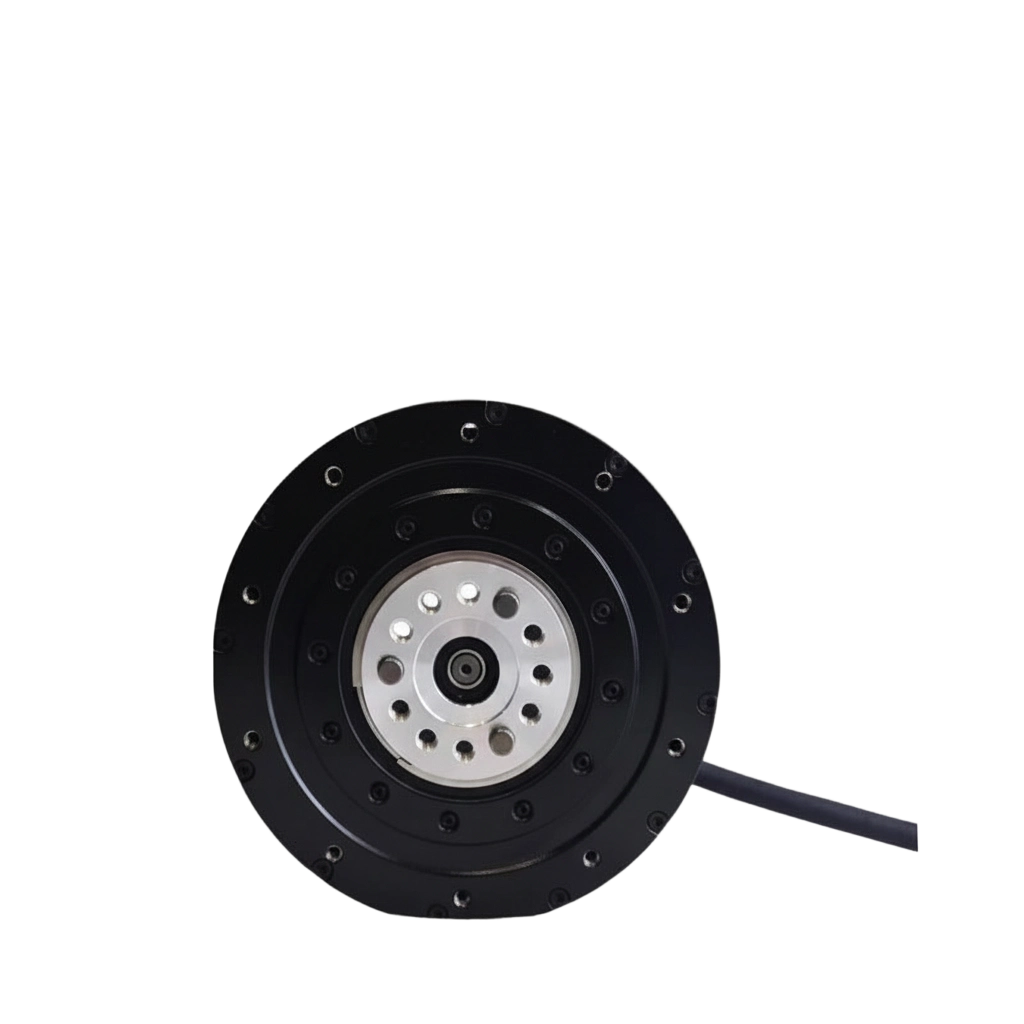

Flange Mounting Hole Pattern 35.86 × 9 × 9 mm (M5)
Base Mounting Hole Pattern 106 × 10 × 6 mm (M4)
Rotation Direction CW / CCW
Rated Voltage 48 V DC
Operating Voltage Range 15 – 60 V DC
No-Load Speed 200 rpm ±10%
No-Load Current (RMS) 0.7 A RMS ±10%
Rated Torque 40 N·m
Rated Speed (at Rated Torque) 167 rpm ±10%
Phase Current at Rated Load (Peak) 27 A peak ±10%
Peak Torque 120 N·m
Maximum Phase Current (Peak) 90 A peak ±10%
Back-EMF Constant (Ke) 16.9 V RMS / rpm ±10%
Torque Constant (Kt) 2.1 N·m / A RMS
Phase Resistance 0.16 Ω ±10%
Phase Inductance 0.211 mH ±10%
Insulation Class Class B
Insulation Resistance (Stator Winding) ≥100 MΩ @ 500 V DC
Hi-Pot Test (Stator to Frame) 600 V AC, 1 s, ≤2 mA leakage current
Drive Method FOC (Field-Oriented Control)
Encoder Type Dual Magnetic Encoders
Number of Encoders 2
Encoder Resolution Not Specified (Absolute Magnetic)
Number of Poles 42
Number of Phases 3

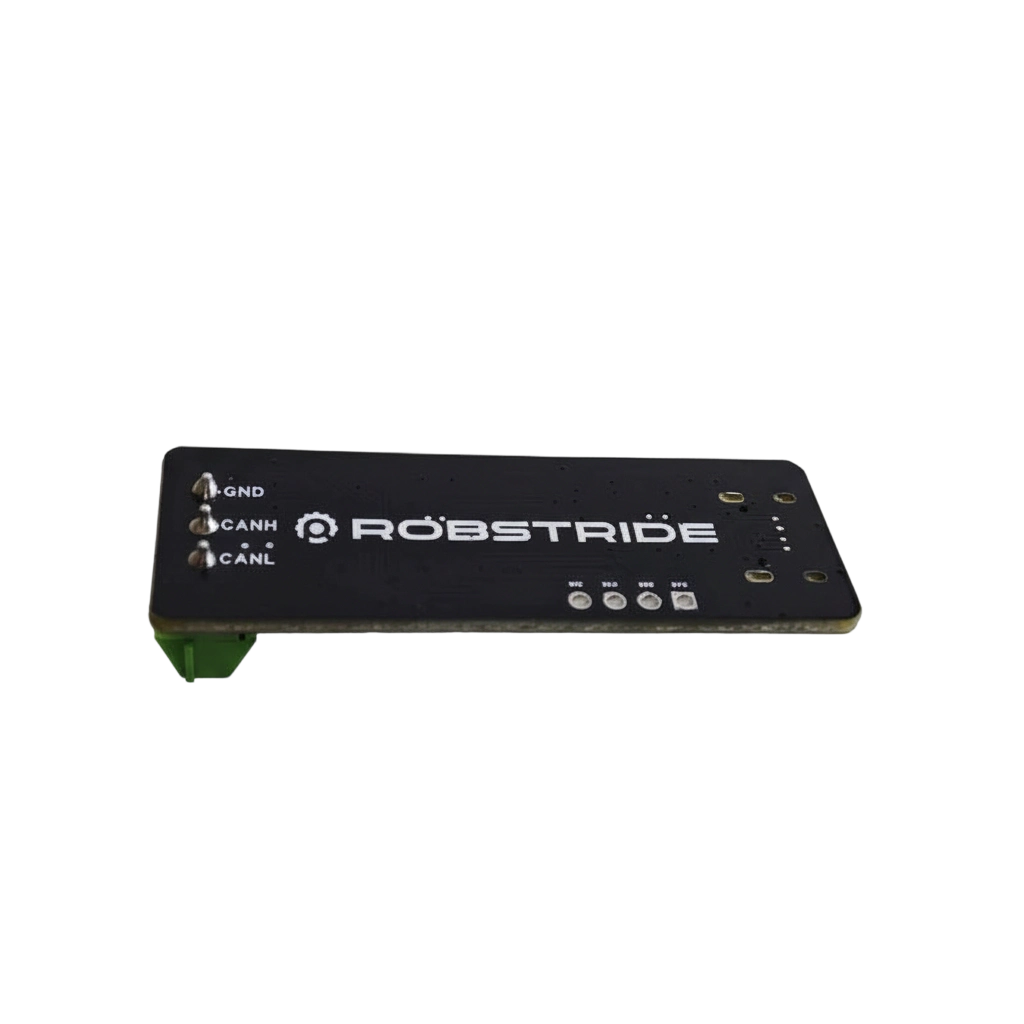

Communication Interface CAN Bus
CAN Bus Bit Rate 1 Mbps
Operating Temperature Range -20 °C to +50 °C
Operating Humidity Range 5% – 85% RH (Non-condensing)
Storage Temperature Range -30 °C to +70 °C

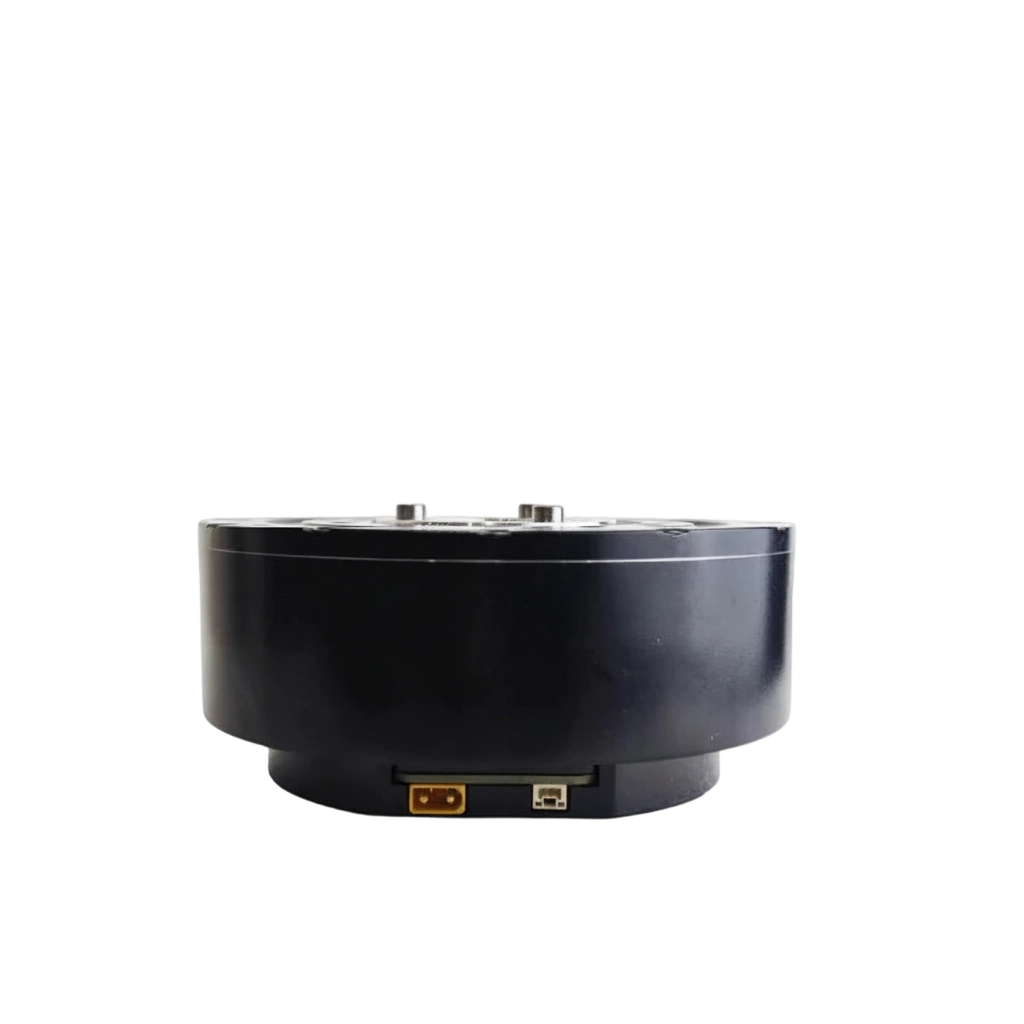

Electrical Connectors XT30 (Power) + GH1.25 (Signal)

Technical Documentation

STP
ROBSTRIDE_04_Motor.stp
PDF
ROBSTRIDE_04_Motor_instruction_manual.pdf
PDF
ROBSTRIDE04_instalation_drawing.pdf
